2003 Yamaha YZ450F Crankshaft Piston OEM Parts Diagram

Submodel YZ450F - YZ450FR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

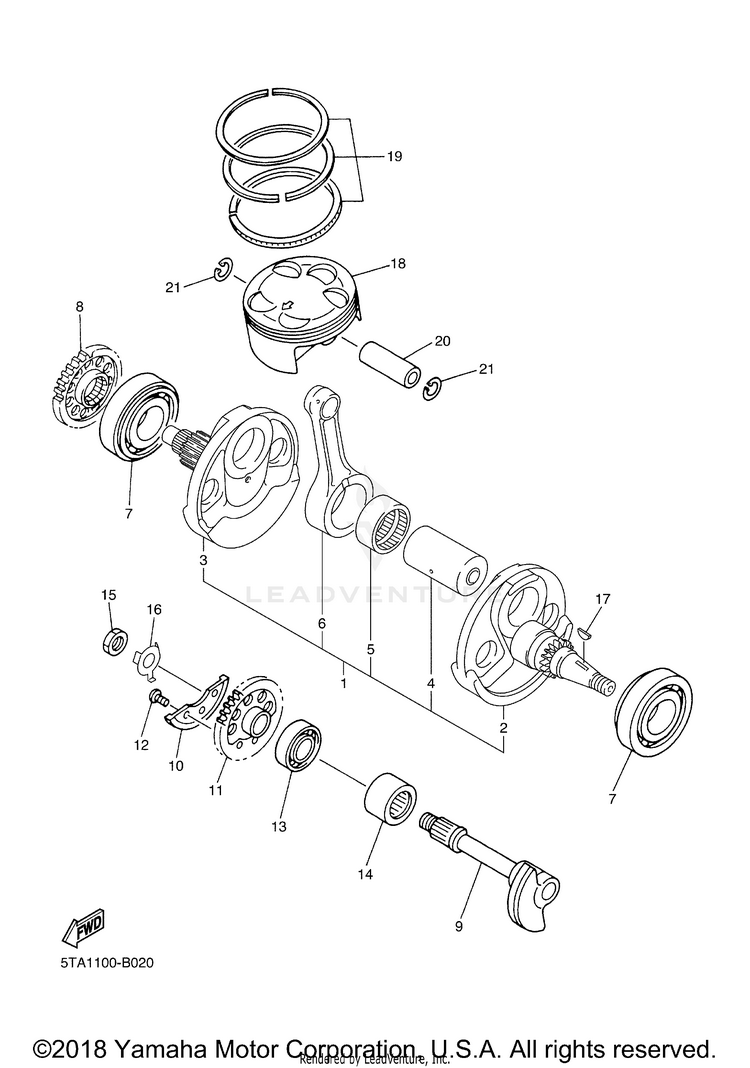

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XD-11400-01-00

(replaces part #
5TA-11400-00-00)

CRANKSHAFT ASSY$575.99$455.96Usually ships in 7-10 business days
25TA-11412-00-00CRANK 1$389.04$303.45Usually ships in 7-10 business days
35TA-11422-00-00CRANK 2$300.89$234.69Usually ships in 7-10 business days
45TG-11681-01-00

(replaces part #
5TA-11681-00-00)

PIN, CRANK 1$51.99$40.55Usually ships in 7-10 business days
593310-63412-00BEARING$142.99$111.53Usually ships in 7-10 business days
65XD-11651-00-00

(replaces part #
5TA-11651-00-00)

ROD, CONNECTING$144.99$113.09Usually ships in 7-10 business days
793306-30633-00BEARING$110.99$86.5710+ In-Stock
85TA-11536-00-00GEAR, DRIVE$126.99$99.05Usually ships in 7-10 business days
95TA-11455-11-00

(replaces part #
5TA-11455-00-00)

SHAFT 1$433.99$338.512 In-Stock
105BE-11454-00-00WEIGHT 1$58.99$46.01Usually ships in 7-10 business days
115TA-11531-01-00

(replaces part #
5TA-11531-00-00)

GEAR, BALANCE WEIGHT$151.99$118.55Not Shipping
1290149-06250-00SCREW$9.49$7.403 In-Stock
1393306-20335-00BEARING$38.99$30.4110+ In-Stock
1493311-62574-00BEARING$68.99$53.8110+ In-Stock
1590170-14171-00NUT$10.49$8.184 In-Stock
1690215-14287-00WASHER, LOCK$6.49$5.0610+ In-Stock
1790280-03001-00KEY, WOODRUFF$9.49$7.4010+ In-Stock
185TJ-11631-00-00

(replaces part #
5TA-11631-00-00)

PISTON (STD)$218.99$170.811 In-Stock
195JG-11603-00-00PISTON RING SET (STD)$76.99$60.0510+ In-Stock
205TA-11633-00-00PIN, PISTON$45.99$35.875 In-Stock
2193420-18082-00CIRCLIP$4.50$3.8710+ In-Stock
