2003 Yamaha YZ450F Steering OEM Parts Diagram

Submodel YZ450F - YZ450FR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

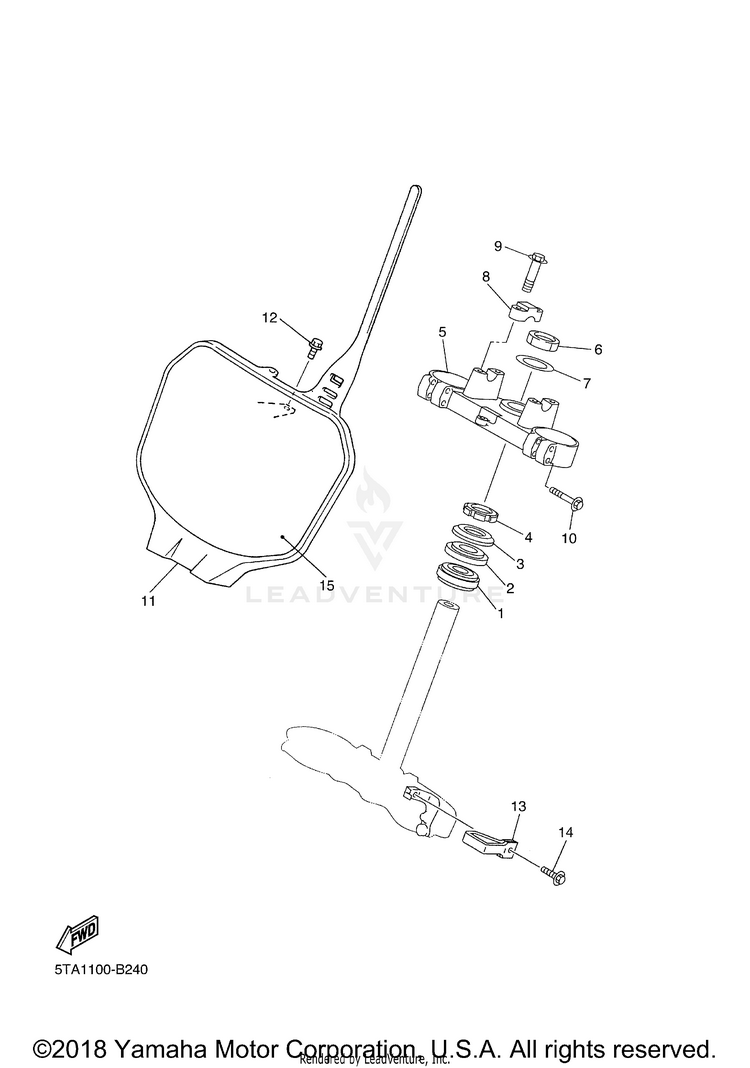

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00081-00BEARING$63.99$52.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$47.99$43.9910+ In-Stock
293332-00078-00

(replaces part #
93332-00068-00)

BEARING$70.99$55.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$48.00$38.9910+ In-Stock
34EW-23416-00-00COVER, BALL RACE 2$37.99$29.6310+ In-Stock
499999-03786-00

(replaces part #
5TA-23393-00-00)

SPECIAL NUT$33.99$27.87Usually ships in 7-10 business days
55TA-23435-00-00CROWN, HANDLE$249.99$194.99Usually ships in 7-10 business days
65TA-23357-00-00NUT$26.99$24.96Not Shipping
790201-247L2-00WASHER, PLATE$11.49$8.9610+ In-Stock
83SP-23441-00-00HOLDER, HANDLE UPPER$30.99$24.1710+ In-Stock
995027-08035-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1095027-08040-00BOLT, FLANGE$9.49$7.4010+ In-Stock
115HD-23485-01-00

(replaces part #
5HD-23485-00-00)

PLATE, NUMBER$24.99$19.49Not Shipping
1295027-06014-00BOLT, FLANGE$0.95$0.825 In-Stock
134DA-23389-00-00GUIDE, CABLE$32.99$25.7310+ In-Stock
1490119-05071-00BOLT, WITH WASHER$9.49$7.407 In-Stock
155HD-2339E-09-00

(replaces part #
5HD-2339E-00-00)

GRAPHIC 1$94.99$74.09Not Shipping
