2006 Yamaha YZ450F Crankshaft Piston OEM Parts Diagram

Submodel YZ450F - YZ450FV - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

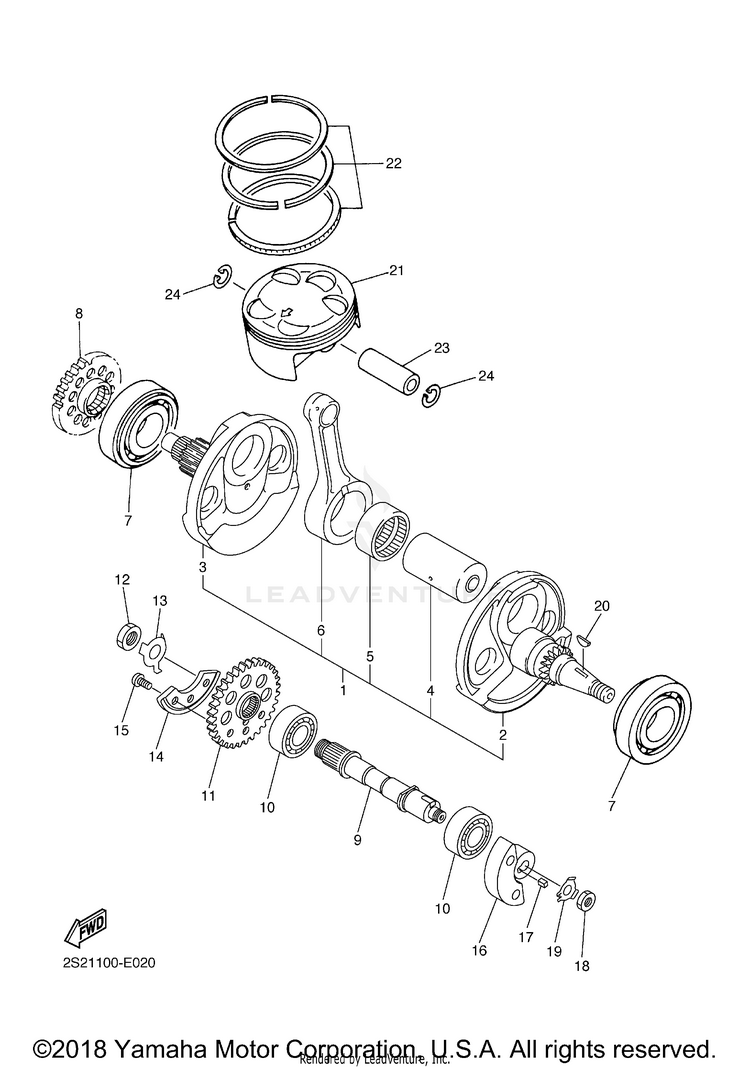

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S2-11400-01-00

(replaces part #
2S2-11400-00-00)

CRANKSHAFT ASSY$776.99$606.052 In-Stock
22S2-11412-00-00CRANK 1$328.99$273.00Usually ships in 7-10 business days
32S2-11422-00-00CRANK 2$252.99$200.58Usually ships in 7-10 business days
45TG-11681-01-00

(replaces part #
5TG-11681-00-00)

PIN, CRANK 1$51.99$40.55Usually ships in 7-10 business days
593310-63417-00BEARING$164.99$128.69Usually ships in 7-10 business days
62S2-11651-00-00ROD, CONNECTING$144.99$113.09Usually ships in 7-10 business days
793306-30633-00BEARING$110.99$86.5710+ In-Stock
82S2-11536-00-00GEAR, DRIVE$91.99$71.75Usually ships in 7-10 business days
92S2-11455-00-00SHAFT 1$260.99$203.571 In-Stock
1093305-20301-00BEARING$139.99$109.193 In-Stock
112S2-11531-00-00GEAR, BALANCE WEIGHT$124.99$97.49Usually ships in 7-10 business days
1290170-14171-00NUT$10.49$8.184 In-Stock
1390215-14287-00WASHER, LOCK$6.49$5.0610+ In-Stock
142S2-11454-00-00WEIGHT 1$206.99$164.21Usually ships in 7-10 business days
1590149-06084-00

(replaces part #
90149-06083-00)

SCREW$9.49$7.404 In-Stock
162S2-11464-00-00WEIGHT 2$79.99$62.39Usually ships in 7-10 business days
1790282-05034-00KEY, STRAIGHT$10.49$8.187 In-Stock
1890170-10405-00NUT$8.49$6.622 In-Stock
1990215-10284-00WASHER, LOCK$10.49$8.182 In-Stock
2090280-03006-00KEY, WOODRUFF$9.49$7.4010+ In-Stock
212S2-11631-20-00

(replaces part #
2S2-11631-10-00)

PISTON (STD)$211.99$165.359 In-Stock
225JG-11603-00-00PISTON RING SET (STD)$76.99$60.0510+ In-Stock
235TA-11633-00-00PIN, PISTON$45.99$35.875 In-Stock
2493420-18082-00CIRCLIP$4.50$3.8710+ In-Stock
