2006 Yamaha YZ450F Steering OEM Parts Diagram

Submodel YZ450F - YZ450FV - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

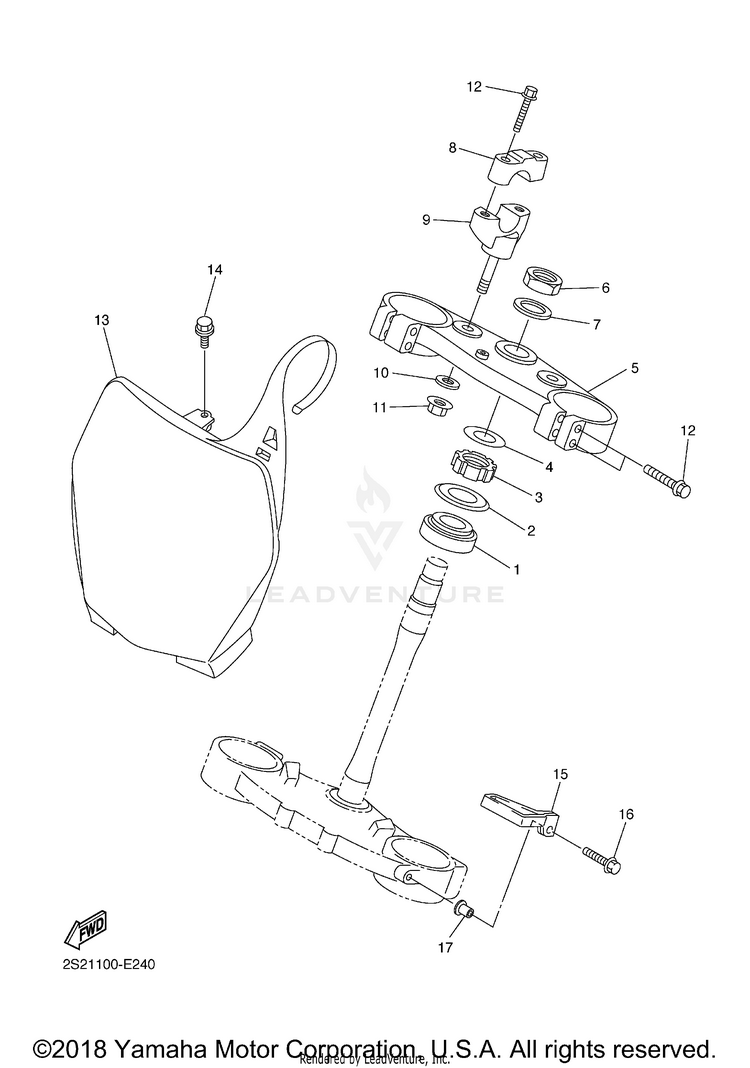

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00078-00

(replaces part #
93332-00068-00)

BEARING$70.99$55.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$48.00$38.9910+ In-Stock
24EW-23416-00-00COVER, BALL RACE 2$37.99$29.6310+ In-Stock
390179-28013-00

(replaces part #
90179-28003-00)

NUT$38.99$30.414 In-Stock
490201-286K9-00WASHER, PLATE (T1.0)$8.49$6.6210+ In-Stock
51C3-23435-50-00CROWN, HANDLE$275.99$215.27Usually ships in 7-10 business days
690170-24003-00NUT$28.99$22.611 In-Stock
790201-24016-00WASHER, PLATE$9.49$7.402 In-Stock
85XC-23441-90-00HOLDER, HANDLE UPPER$35.99$28.075 In-Stock
95XC-23442-90-00HOLDER, HANDLE LOWER$78.99$61.612 In-Stock
1090201-12028-00WASHER, PLATE$3.05$2.629 In-Stock
1195602-12200-00NUT, SELF-LOCKING$5.49$4.2810+ In-Stock
1295024-08035-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
131C3-23485-51-00

(replaces part #
1C3-23485-50-00)

PLATE, NUMBER$29.99$23.391 In-Stock
1490119-06217-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
155XE-23389-00-00GUIDE, CABLE$18.99$14.8110+ In-Stock
1695024-06020-00BOLT, FLANGE (SMALL HEAD)$6.49$5.069 In-Stock
1790387-06104-00COLLAR$1.60$1.3810+ In-Stock
