2006 Yamaha YZ450F Starter OEM Parts Diagram

Submodel YZ450F - YZ450FV - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

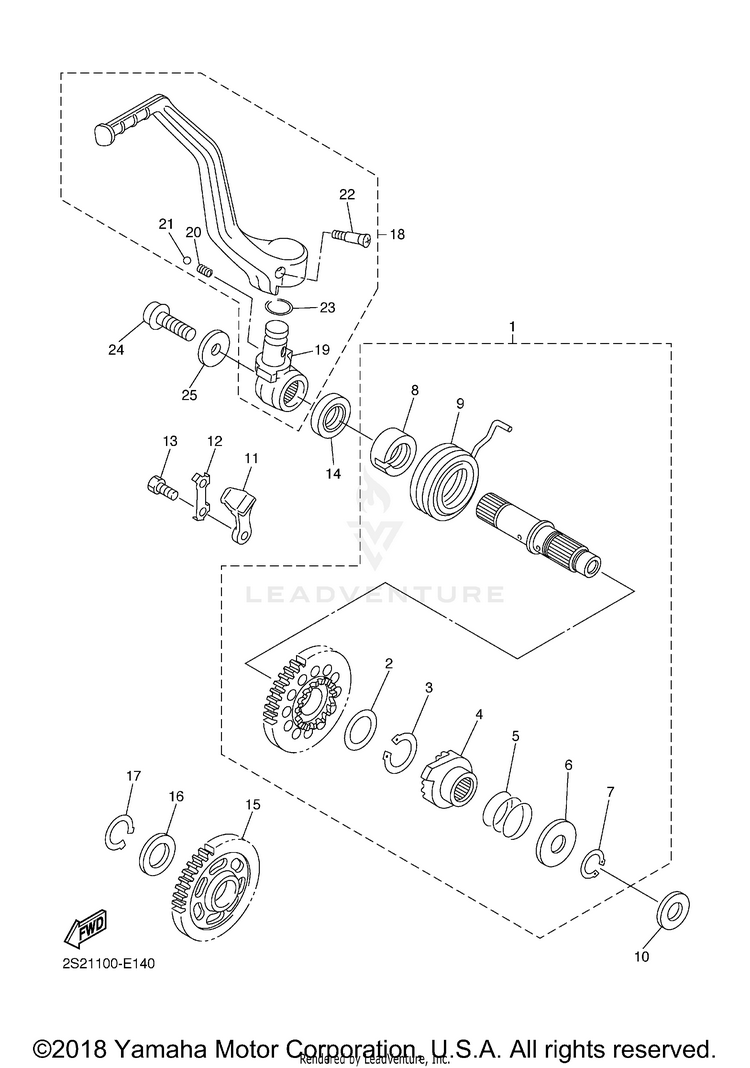

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S2-15601-00-00KICK SHAFT ASSY$278.99$221.22Usually ships in 7-10 business days
290201-20685-00WASHER, PLATE (T=0.5)$8.49$6.621 In-Stock
393410-20038-00CIRCLIP, S-TYPE$4.05$3.4810+ In-Stock
42S2-15671-00-00WHEEL, RATCHET$59.99$46.79Usually ships in 7-10 business days
590501-160A2-00SPRING, COMPRESSION$4.20$3.78Usually ships in 7-10 business days
690201-167P7-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
799009-16400-00CIRCLIP$6.49$5.064 In-Stock
85GR-15664-00-00GUIDE, SPRING$20.99$17.21Usually ships in 7-10 business days
990508-305B0-00SPRING, TORSION$16.49$12.863 In-Stock
1090201-162H4-00WASHER, PLATE$10.49$8.188 In-Stock
115SG-15668-00-00STOPPER$93.99$73.314 In-Stock
12214-15686-00-00WASHER, LOCK$8.49$6.627 In-Stock
1397017-06016-00

(replaces part #
90101-06001-00)

BOLT$9.49$7.405 In-Stock
1493102-20108-00OIL SEAL | INC. WITH BOTTOM END GASKET KIT$12.49$9.7410+ In-Stock
155TA-15651-00-00GEAR, KICK IDLE$138.99$108.413 In-Stock
1690201-20685-00WASHER, PLATE (T=0.5)$8.49$6.621 In-Stock
1799009-20400-00CIRCLIP$9.49$7.4010+ In-Stock
182S2-15620-01-00

(replaces part #
2S2-15620-00-00)

KICK CRANK ASSY$279.99$218.392 In-Stock
195XD-15621-00-00BOSS, KICK CRANK$107.99$84.23Usually ships in 7-10 business days
2090501-147A5-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
2193507-32031-00

(replaces part #
93507-32009-00)

BALL$5.49$4.2810+ In-Stock
2290152-06010-00SCREW, COUNTERSUNK$10.49$8.1810+ In-Stock
2393210-17570-00O-RING$8.49$6.627 In-Stock
2490110-08097-00

(replaces part #
90110-08087-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
2590201-08047-00WASHER, PLATE$5.49$4.286 In-Stock
