2007 Yamaha BIG BEAR 400 IRS 4x4 Crankshaft Piston OEM Parts Diagram

Submodel BIG BEAR 400 IRS EXPLORING - YFM40FBEW - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

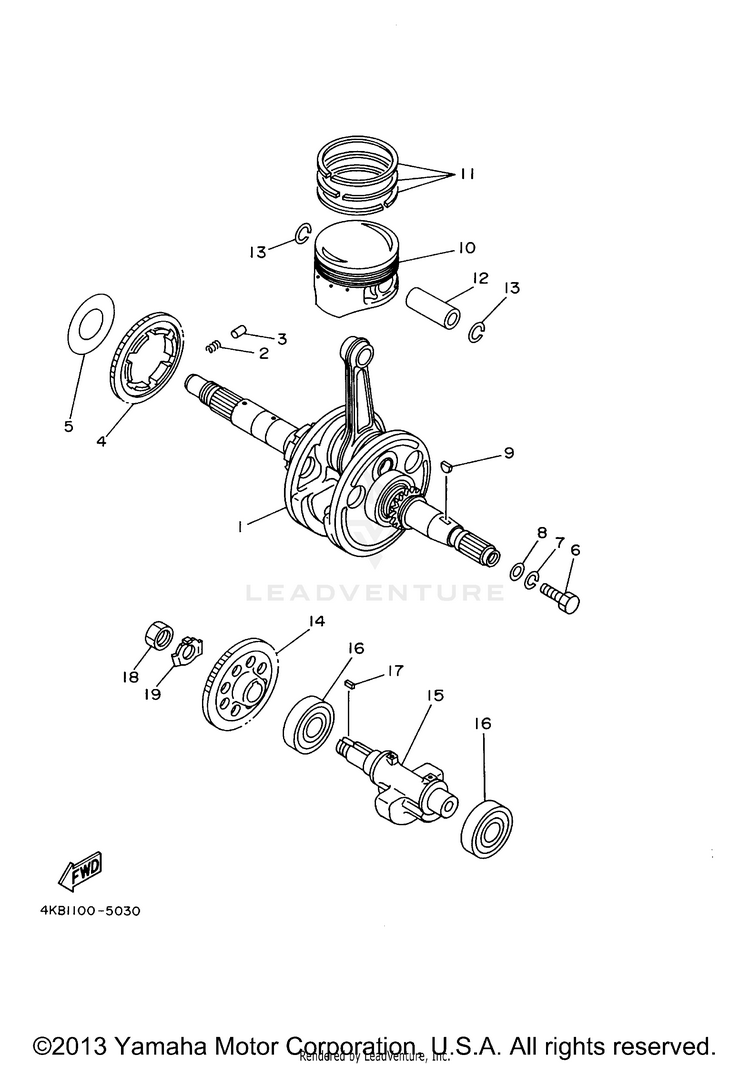

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4GB-11610-40-00PISTON RING SET (1.00MM O/S) | AP$66.99$52.251 In-Stock
-4GB-11610-20-00PISTON RING SET (0.50MM O/S) | AP$66.99$52.253 In-Stock
-4GB-11636-00-00PISTON (0.50MM O/S) | AP$150.99$117.77Usually ships in 7-10 business days
-4GB-11631-00-Y0PISTON (STD)$154.99$120.89Usually ships in 7-10 business days
15EH-11400-01-00

(replaces part #
5EH-11400-00-00)

CRANKSHAFT ASSY$708.99$592.99Usually ships in 7-10 business days
290501-22721-00SPRING, COMPRESSION$10.49$8.6010+ In-Stock
393605-10090-00PIN, DOWEL$9.49$7.406 In-Stock
43Y1-11531-02-00GEAR, BALANCE WEIGHT$63.99$49.91Usually ships in 7-10 business days
54KB-11565-00-00WASHER, BEARING COVER$9.49$8.54Usually ships in 7-10 business days
690101-10568-00BOLT$6.49$5.068 In-Stock
792907-10100-00WASHER, SPRING$9.49$7.403 In-Stock
890201-10058-00

(replaces part #
90201-107F8-00)

WASHER, PLATE$10.49$8.184 In-Stock
990280-05001-00

(replaces part #
90280-05048-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
104GB-11638-00-00PISTON (1.00MM O/S) | AP$150.99$117.77Usually ships in 7-10 business days
114GB-11610-00-00PISTON RING SET (STD)$73.99$57.717 In-Stock
1251Y-11633-00-00PIN, PISTON$48.99$38.212 In-Stock
1393450-19095-00CIRCLIP$2.90$2.497 In-Stock
144KB-11536-01-00GEAR, DRIVE$118.99$92.81Usually ships in 7-10 business days
151UY-11454-00-00WEIGHT 1$161.99$128.45Usually ships in 7-10 business days
1693306-20532-00BEARING$72.99$56.9310+ In-Stock
1790282-05034-00KEY, STRAIGHT$10.49$8.187 In-Stock
1890170-16326-00NUT$14.49$11.305 In-Stock
1990215-16270-00WASHER, LOCK$13.49$10.526 In-Stock
