2007 Yamaha BIG BEAR 400 IRS 4x4 Starter OEM Parts Diagram

Submodel BIG BEAR 400 IRS EXPLORING - YFM40FBEW - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

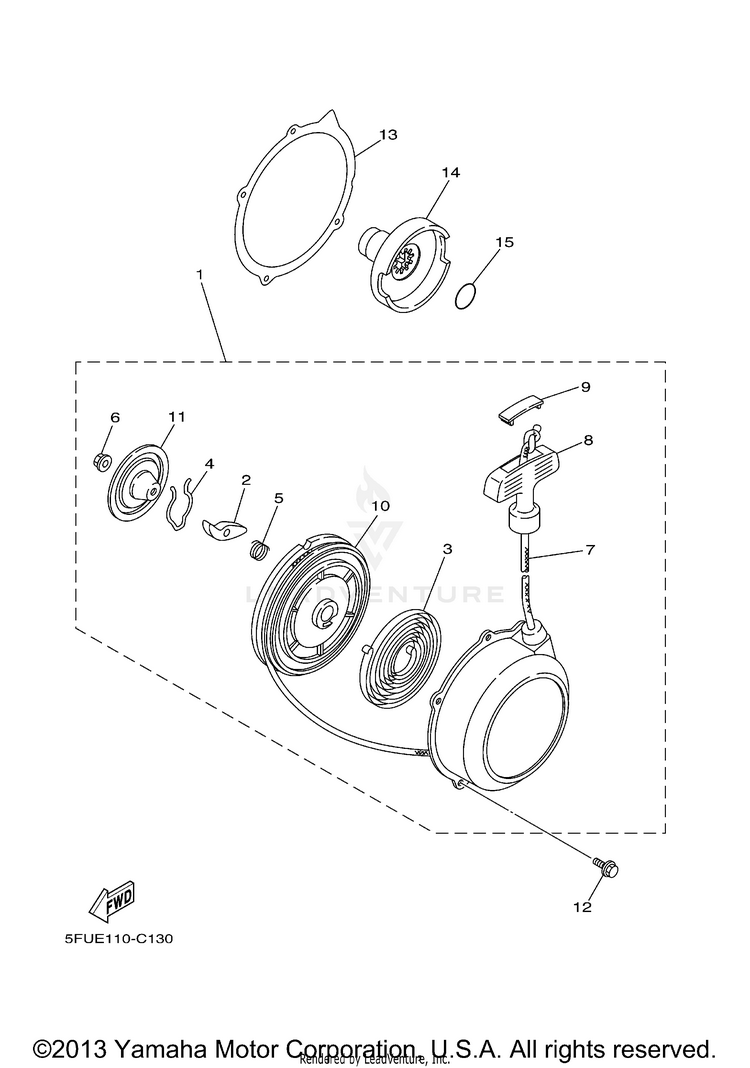

STARTER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-15710-30-00STARTER ASSY$316.99$247.25Usually ships in 7-10 business days
221V-15741-00-00PAWL, DRIVE$25.99$20.272 In-Stock
321V-15713-00-00SPRING, STARTER$28.99$22.611 In-Stock
421V-15715-01-00SPRING, FRICTION$14.49$11.88Usually ships in 7-10 business days
521V-15767-00-00SPRING$8.49$6.623 In-Stock
695702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
789A-15751-00-00

(replaces part #
21V-15751-00-00)

WIRE, STARTER$36.99$28.854 In-Stock
83X3-15755-00-00HANDLE, STARTER$32.99$25.733 In-Stock
921V-15779-00-00COVER$8.49$6.625 In-Stock
1024W-15714-00-00DRUM, SHEAVE$62.99$49.132 In-Stock
1121V-15716-01-00PLATE, DRIVE$19.99$16.39Usually ships in 7-10 business days
1295027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
133GD-15699-00-00GASKET$28.99$22.615 In-Stock
141UY-15723-00-00PULLEY, STARTER$137.99$107.63Usually ships in 7-10 business days
1593210-16290-00O-RING$9.49$7.4010+ In-Stock
