2007 Yamaha BIG BEAR 400 IRS 4x4 Meter OEM Parts Diagram

Submodel BIG BEAR 400 IRS EXPLORING - YFM40FBEW - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

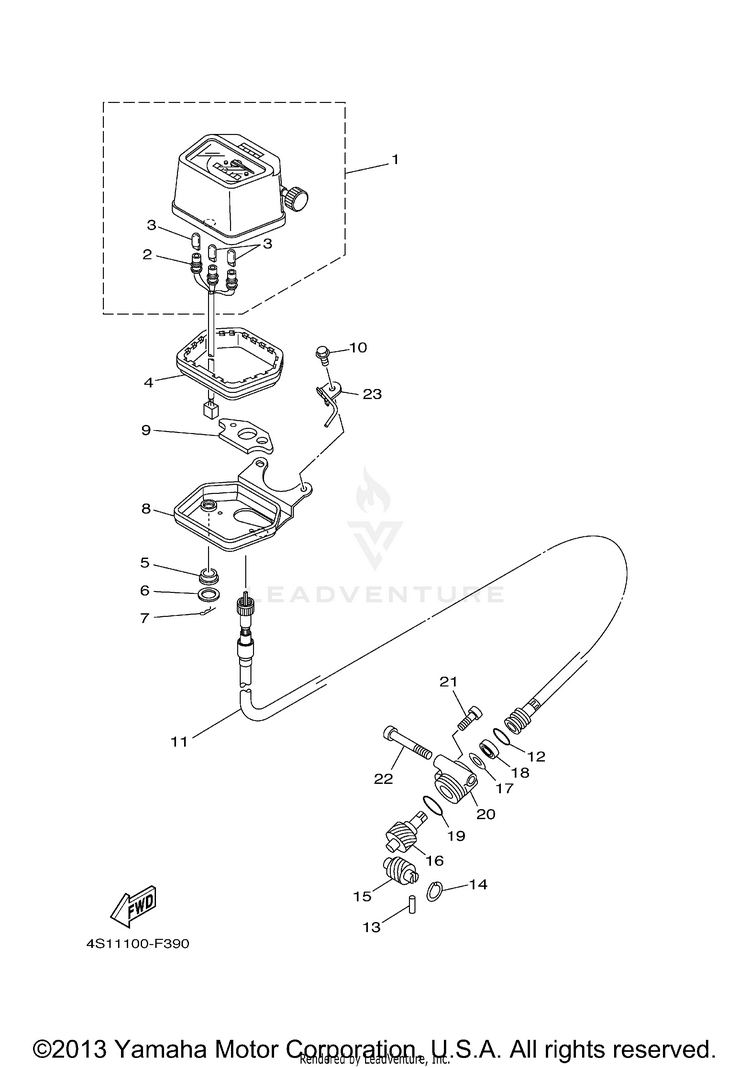

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14S1-83570-01-00

(replaces part #
4S1-83570-00-00)

SPEEDOMETER ASSY$344.99$284.38Usually ships in 7-10 business days
24S1-83536-00-00SOCKET, METER$136.99$106.85Usually ships in 7-10 business days
33GM-83517-00-00

(replaces part #
1YT-83517-00-00)

BULB (12V-1.7W T6.5)$8.49$6.6210+ In-Stock
45Y0-83513-00-00DAMPER$42.99$35.25Usually ships in 7-10 business days
51M1-83526-01-00

(replaces part #
1M1-83526-00-00)

DAMPER 2$5.99$4.678 In-Stock
690201-05033-00

(replaces part #
53Y-83524-00-00)

WASHER, SPECIAL$11.49$8.964 In-Stock
790468-10050-00

(replaces part #
437-83525-00-00)

CLIP$3.05$2.6210+ In-Stock
84S1-83519-00-00BRACKET, METER$61.99$48.35Usually ships in 7-10 business days
94S1-H3513-00-00DAMPER$3.15$2.84Usually ships in 7-10 business days
1095022-06008-00

(replaces part #
9502P-06008-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
114WV-83550-00-00SPEEDOMETER CABLE ASSY$58.99$46.013 In-Stock
1293210-14579-00

(replaces part #
93210-14104-00)

O-RING$7.99$6.238 In-Stock
1393603-14240-00PIN, DOWEL$2.30$1.9810+ In-Stock
1493440-14155-00CIRCLIP$0.80$0.72Usually ships in 7-10 business days
1559V-17831-00-00GEAR, DRIVE$46.99$38.53Usually ships in 7-10 business days
1659V-17841-00-00GEAR, DRIVEN$127.99$99.83Usually ships in 7-10 business days
1790201-12M34-00

(replaces part #
90201-12163-00)

WASHER, PLATE$3.90$3.35
1893102-08307-00OIL SEAL$8.49$6.6210+ In-Stock
1993210-24253-00O-RING$8.49$6.6210+ In-Stock
204KB-17811-00-00HOUSING, TACHOMETER GEAR$46.99$38.53Usually ships in 7-10 business days
2198507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
2298517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
235FU-F6279-10-00

(replaces part #
5FU-F6279-00-00)

GUIDE, CABLE$25.99$21.31Usually ships in 7-10 business days
