2007 Yamaha Warrior XV1700 Cylinder OEM Parts Diagram

Submodel ROAD STAR WARRIOR CA - XV17PCWC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

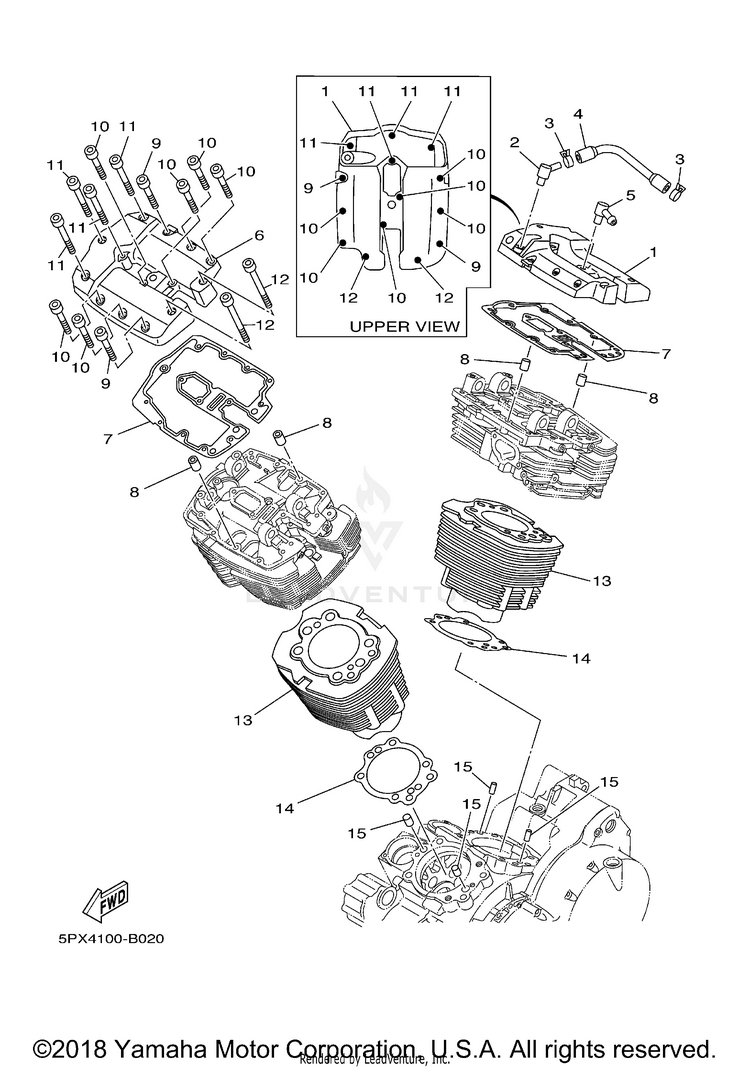

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-11191-00-00COVER, CYLINDER HEAD 1$467.99$389.36Usually ships in 7-10 business days
25PX-11167-00-00PIPE, BREATHER 2$61.99$48.35Usually ships in 7-10 business days
390467-15001-00CLIP$8.49$7.641 In-Stock
45PX-11166-00-00PIPE, BREATHER 1$21.99$18.03Usually ships in 7-10 business days
54WM-11126-00-00PIPE, BREATHER 3$18.99$15.57Usually ships in 7-10 business days
65PX-11192-00-00COVER, CYLINDER HEAD 2$467.99$389.36Usually ships in 7-10 business days
75PX-11193-01-00

(replaces part #
5PX-11193-00-00)

GASKET, HEAD COVER 1$55.99$43.67Usually ships in 7-10 business days
891808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
991314-06060-00BOLT, HEXAGON SOCKET HEAD$9.49$7.406 In-Stock
1091314-06050-00BOLT, HEXAGON SOCKET HEAD$9.49$7.405 In-Stock
1191314-06040-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
1291314-06040-00

(replaces part #
90110-06086-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
135PX-11311-00-00CYLINDER 1$717.99$601.09Usually ships in 7-10 business days
144WM-11351-00-00GASKET, CYLINDER$28.99$23.77Usually ships in 7-10 business days
1590387-087A5-00COLLAR$9.49$8.54Usually ships in 7-10 business days
