2007 Yamaha Warrior XV1700 Front Wheel OEM Parts Diagram

Submodel ROAD STAR WARRIOR CA - XV17PCWC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

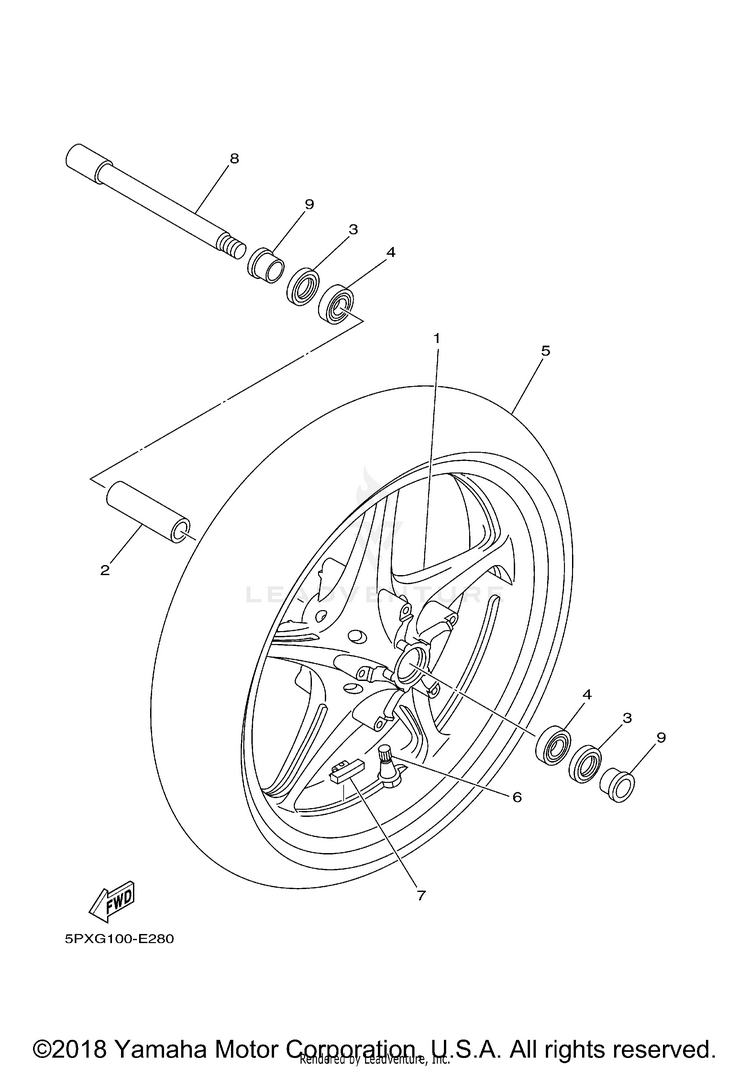

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-25168-20-7BCAST WHEEL, FRONT | BIB2$526.99$411.05Usually ships in 7-10 business days
24XV-25117-00-00SPACER, BEARING$38.99$31.97Usually ships in 7-10 business days
393106-28043-00OIL SEAL$16.49$12.8610+ In-Stock
493306-00420-00BEARING (B6004)$44.99$35.0910+ In-Stock
594112-18025-00TIRE (120/70ZR18M/C58W BT020F) | UR BRIDGESTONE$286.99$223.85Usually ships in 7-10 business days
594112-18012-00TIRE (120/70 ZR18M/C59W D220F) | UR DUNLOP$271.99$225.93Usually ships in 7-10 business days
693900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
75MT-25398-20-00BALANCER, WHEEL (30G) | UN$46.99$38.53Usually ships in 7-10 business days
75MT-25398-00-00BALANCER, WHEEL (10G) | UN$18.99$15.574 In-Stock
75MT-25398-10-00BALANCER, WHEEL (20G) | UN$18.99$15.57Usually ships in 7-10 business days
84XV-25181-10-00AXLE, WHEEL$93.99$73.31Usually ships in 7-10 business days
990387-22016-00

(replaces part #
90387-2200T-00)

COLLAR$42.99$35.25Usually ships in 7-10 business days
