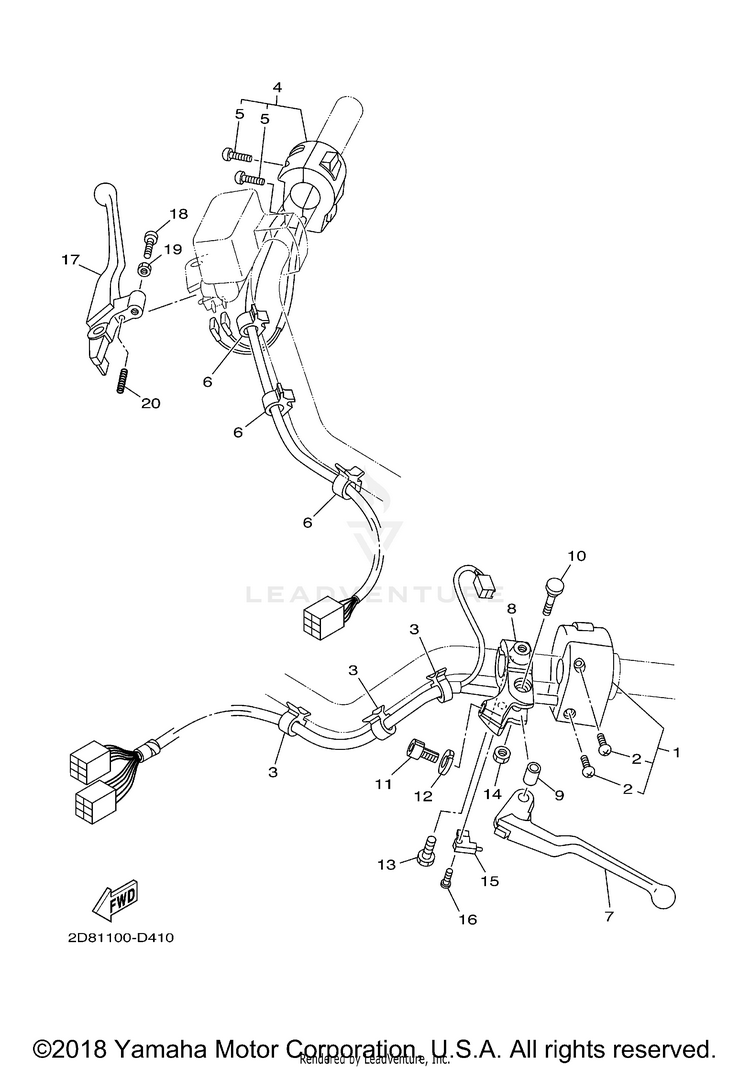

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-83973-20-00SWITCH, HANDLE 3$273.99$213.71Usually ships in 7-10 business days
298580-05525-00

(replaces part #
98580-05025-00)

SCREW, PAN HEAD$2.00$1.80Usually ships in 7-10 business days
390464-15192-00CLAMP$9.49$7.404 In-Stock
45PX-83975-20-00SWITCH, HANDLE 2$268.99$209.81Usually ships in 7-10 business days
598507-05025-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
690464-10190-00CLAMP$10.49$8.60Usually ships in 7-10 business days
74WM-83912-00-00LEVER 1$60.99$47.57Usually ships in 7-10 business days
85BN-82911-00-00HOLDER, LEVER 1$49.99$40.99Usually ships in 7-10 business days
94TR-83913-00-00COLLAR, LEVER 1$8.49$6.6210+ In-Stock
104TR-83945-00-00BOLT, LEVER$16.49$13.52Usually ships in 7-10 business days
1190123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1290179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
1397024-06020-00

(replaces part #
97004-06020-00)

BOLT$9.49$7.4010+ In-Stock
1495604-06100-00NUT, U$9.49$7.403 In-Stock
153YX-82917-01-00SWITCH$47.99$37.435 In-Stock
1698707-03020-00SCREW, FLAT HEAD$9.49$8.54Usually ships in 7-10 business days
175EY-83922-00-00LEVER 2$50.99$39.77Usually ships in 7-10 business days
1890149-06131-00SCREW$9.49$7.4010+ In-Stock
1990170-06010-00NUT$9.49$7.404 In-Stock
2090501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
