2008 Yamaha XT250 Crankcase OEM Parts Diagram

Submodel XT250 - XT250XC - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

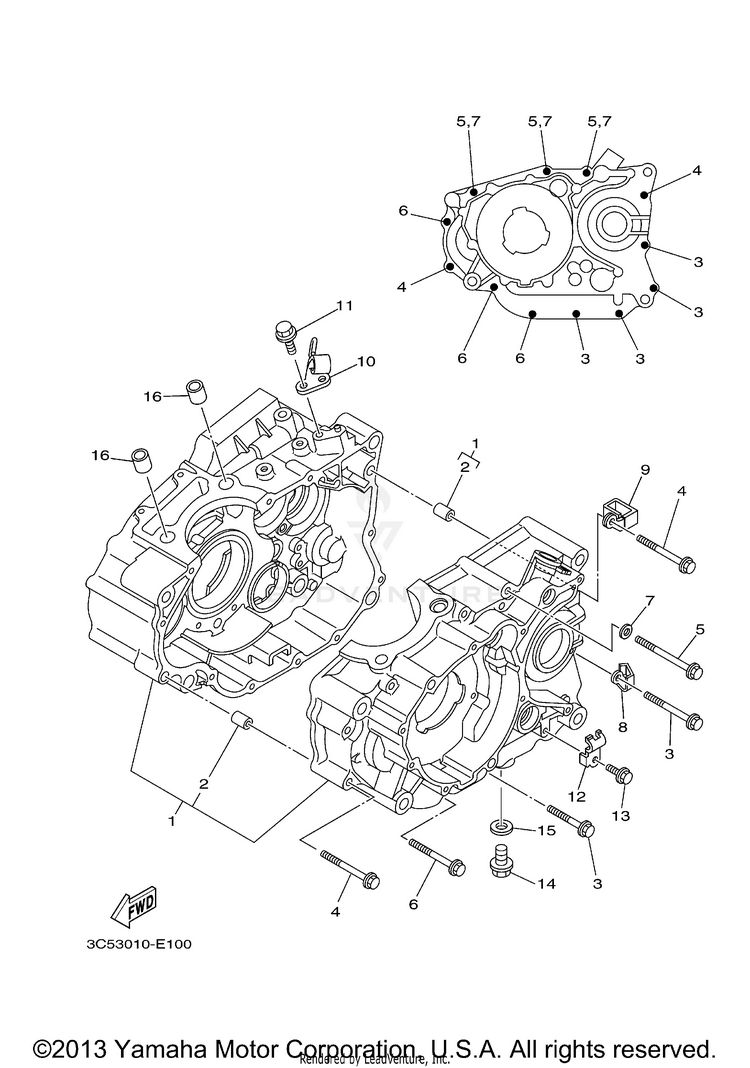

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13C5-15100-03-00CRANKCASE ASSY$604.99$489.08Usually ships in 7-10 business days
299530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
395024-06045-00BOLT, FLANGE (SMALL HEAD)$10.49$8.60Usually ships in 7-10 business days
495024-06060-00BOLT, FLANGE (SMALL HEAD)$3.35$3.02Usually ships in 7-10 business days
595024-06070-00BOLT, FLANGE (SMALL HEAD)$3.30$2.97Usually ships in 7-10 business days
695024-06055-00BOLT, FLANGE (SMALL HEAD)$8.49$7.64Usually ships in 7-10 business days
790430-06014-00GASKET$8.99$7.0110+ In-Stock
890462-08225-00CLAMP$9.49$8.54Usually ships in 7-10 business days
990461-08001-00CLAMP$5.49$4.94Usually ships in 7-10 business days
105XT-15441-02-00HOLDER, CLUTCH CABLE$26.99$22.13Usually ships in 7-10 business days
1195817-06016-00

(replaces part #
95812-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
1290462-10043-00CLAMP$12.49$10.24Usually ships in 7-10 business days
1395022-06010-00BOLT, FLANGE$6.49$5.067 In-Stock
1490340-12006-00

(replaces part #
90340-12059-00)

PLUG, STRAIGHT SCREW$4.55$4.2010+ In-Stock
1590430-12213-00GASKET$6.49$5.0610+ In-Stock
1699530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
