2008 Yamaha XT250 Rear Wheel OEM Parts Diagram

Submodel XT250 - XT250XC - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR WHEEL

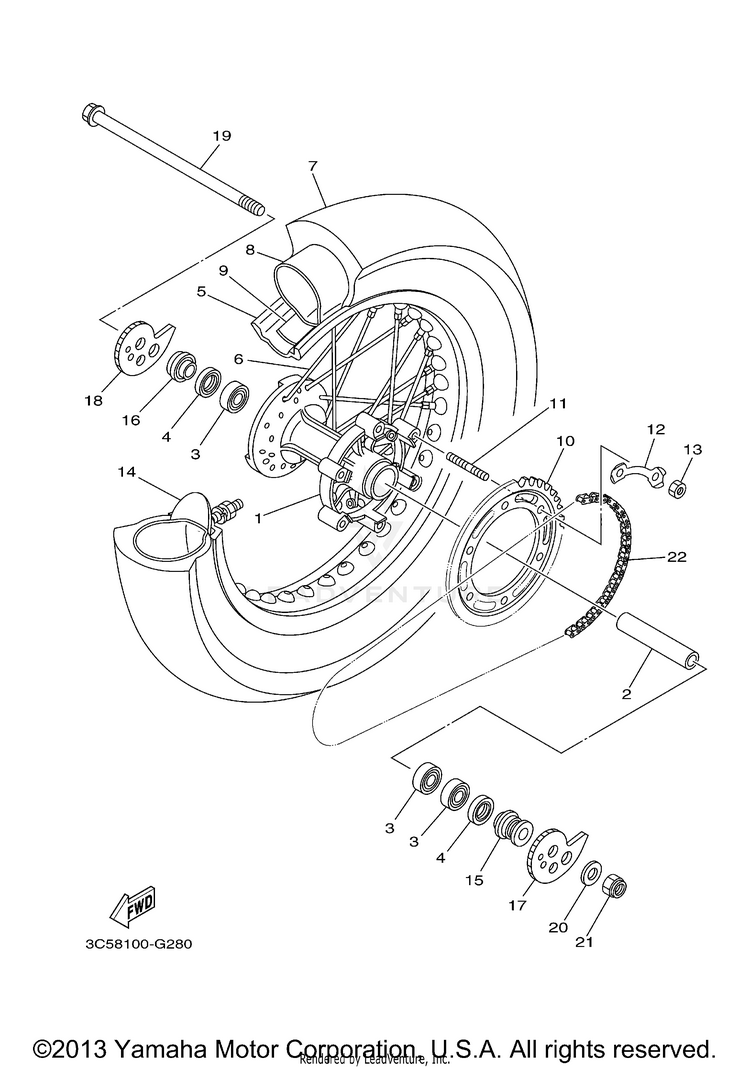

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14JG-25311-02-35HUB, REAR | SL FOR PWS1$325.99$254.27Usually ships in 7-10 business days
290560-15313-00SPACER$50.99$39.774 In-Stock
393306-20226-00

(replaces part #
93306-20212-00)

BEARING$42.99$33.534 In-Stock
493106-22032-00OIL SEAL$12.49$9.743 In-Stock
594421-18468-00RIM (2.15-18)$324.99$267.76Usually ships in 7-10 business days
64JG-25304-00-00SPOKE SET, REAR$102.99$80.33Usually ships in 7-10 business days
794112-18028-00

(replaces part #
94112-187Y4-00)

TIRE (120/80-18 M/C 26P) | CHENG SHIN$115.99$90.47Usually ships in 7-10 business days
894232-18113-00

(replaces part #
94232-18287-00)

TUBE (2.75-18) | CHENG SHIN$32.99$27.05Usually ships in 7-10 business days
994340-18086-00

(replaces part #
94335-18167-00)

BAND, RIM (2.50-18)$19.49$15.208 In-Stock
103C5-25448-10-00SPROCKET, DRIVEN (48T)$54.99$42.89Usually ships in 7-10 business days
1190116-08218-00BOLT, STUD$9.49$7.4010+ In-Stock
124JG-25412-00-00WASHER$11.99$9.83Usually ships in 7-10 business days
1390170-08258-00NUT$3.85$3.3110+ In-Stock
143Y1-25394-00-00SPACER, BEAD$34.99$28.69Usually ships in 7-10 business days
155XT-25383-00-00COLLAR, WHEEL$22.99$18.85Usually ships in 7-10 business days
164JG-25383-00-00COLLAR, WHEEL$24.99$20.49Usually ships in 7-10 business days
175XT-25388-00-00PULLER, CHAIN 1$11.49$9.42Usually ships in 7-10 business days
185XT-25389-00-00PULLER, CHAIN 2$11.49$9.42Usually ships in 7-10 business days
192K6-25381-10-00AXLE, WHEEL$43.99$36.07Usually ships in 7-10 business days
2090201-15014-00WASHER, PLATE$8.49$7.64Usually ships in 7-10 business days
2195607-14200-00NUT, SELF-LOCKING$13.49$10.522 In-Stock
2294582-14128-00CHAIN (DID428V 128FE)$143.99$112.31Usually ships in 7-10 business days
