2008 Yamaha XT250 Electrical 1 OEM Parts Diagram

Submodel XT250 - XT250XC - 2008

Shop Aftermarket Parts

ELECTRICAL 1

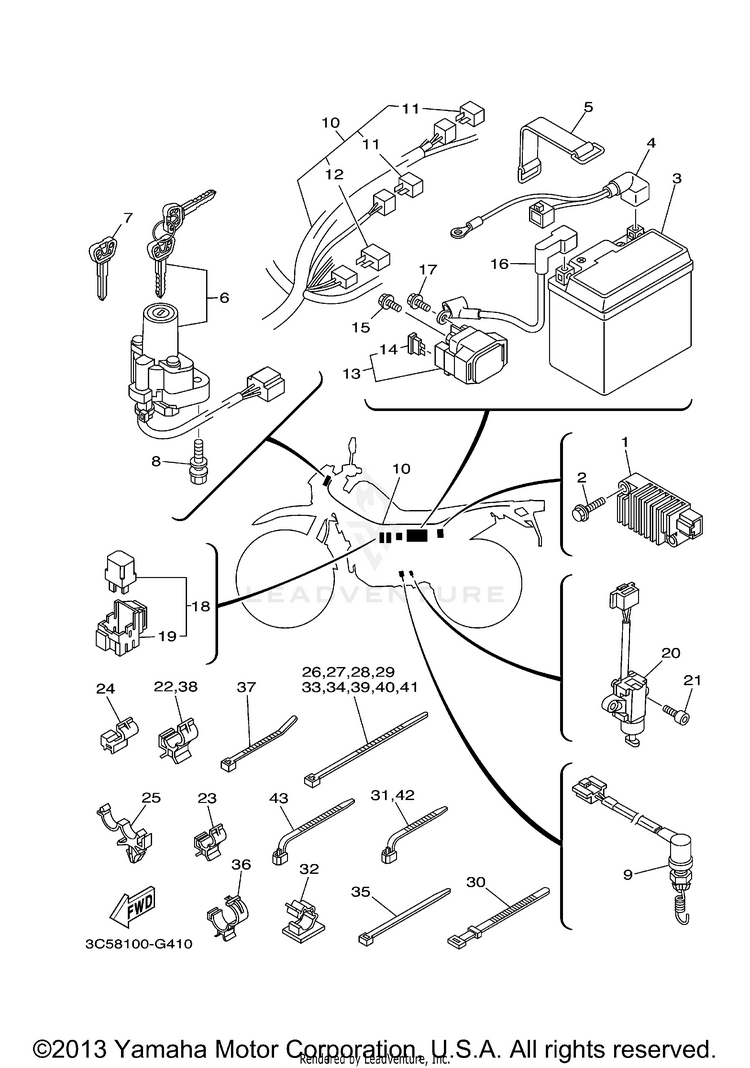

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90464-08189-00CLAMP$2.60$2.34Usually ships in 7-10 business days
13TJ-81960-02-00RECTIFIER & REGULATOR ASSY$184.99$144.294 In-Stock
AFTERMARKET ALTERNATIVE
$22.99$12.9910+ In-Stock
295027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
3YTZ-7SHE0-00-00

(replaces part #
BTY-YTZ7S-HE-00)

YTZ7S HE YUASA BATT$173.99$135.713 In-Stock
45XT-82116-00-00WIRE, MINUS LEAD$19.99$16.39Usually ships in 7-10 business days
55JJ-82131-00-00BAND, BATTERY$14.49$11.881 In-Stock
63C5-82501-01-00

(replaces part #
3C5-82501-00-00)

MAIN SWITCH STEERING LOCK$176.99$138.05Usually ships in 7-10 business days
74BH-82511-09-00BLANK KEY | AP$33.99$26.517 In-Stock
890109-08196-00

(replaces part #
90109-080G5-00)

BOLT$9.49$7.4010+ In-Stock
95XT-82530-00-00STOP SWITCH ASSY$34.99$28.69Usually ships in 7-10 business days
103C5-82590-20-00WIRE HARNESS ASSY$230.99$180.17Usually ships in 7-10 business days
113WP-81980-00-00DIODE ASSY$24.99$19.498 In-Stock
124WA-81980-00-00DIODE ASSY$32.99$25.7310+ In-Stock
135XT-81940-02-00STARTER RELAY ASSY (RC19-048)$112.99$88.13Usually ships in 7-10 business days
142GV-82151-00-00

(replaces part #
2GH-82151-00-00)

FUSE (20A-BL)$5.99$4.6710+ In-Stock
1595027-06008-00BOLT, FLANGE$7.99$6.234 In-Stock
165XT-82115-00-00WIRE, PLUS LEAD$22.99$18.851 In-Stock
1795027-06008-00BOLT, FLANGE$7.99$6.234 In-Stock
185JJ-81950-20-00RELAY ASSY (5JJ-20)$63.99$49.911 In-Stock
195JJ-81952-00-00HOLDER, RELAY$10.99$8.574 In-Stock
205XT-82566-01-00

(replaces part #
5XT-82566-00-00)

SWITCH, SIDE STAND$61.99$48.351 In-Stock
2191317-05014-00

(replaces part #
90110-05227-00)

BOLT, HEX. SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
2290464-10190-00CLAMP$10.49$8.60Usually ships in 7-10 business days
2390464-17007-00CLAMP$3.85$3.46Usually ships in 7-10 business days
2490464-05188-00CLAMP$5.49$4.94Usually ships in 7-10 business days
2590464-16006-00CLAMP$10.49$8.182 In-Stock
261UA-82591-00-00BAND$5.49$4.2810+ In-Stock
271UA-82591-00-00BAND$5.49$4.2810+ In-Stock
281UA-82591-00-00BAND$5.49$4.2810+ In-Stock
291UA-82591-00-00BAND$5.49$4.2810+ In-Stock
30437-83936-11-00

(replaces part #
3TB-83936-00-00)

BAND, SWITCH CORD$5.00$4.3010+ In-Stock
3190464-13077-00CLAMP$9.49$7.4010+ In-Stock
3290464-13185-00CLAMP$6.49$5.84Usually ships in 7-10 business days
331UA-82591-00-00BAND$5.49$4.2810+ In-Stock
341UA-82591-00-00BAND$5.49$4.2810+ In-Stock
355Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
3690464-20191-00CLAMP$11.49$9.42Usually ships in 7-10 business days
3790465-10098-00CLAMP$2.80$2.417 In-Stock
3890464-10190-00CLAMP$10.49$8.60Usually ships in 7-10 business days
391UA-82591-00-00BAND$5.49$4.2810+ In-Stock
401UA-82591-00-00BAND$5.49$4.2810+ In-Stock
411UA-82591-00-00BAND$5.49$4.2810+ In-Stock
4290464-13077-00CLAMP$9.49$7.4010+ In-Stock
4390464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
