2008 Yamaha YZF-R1 Front Wheel OEM Parts Diagram

Submodel R1 - YZFR1XCL - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

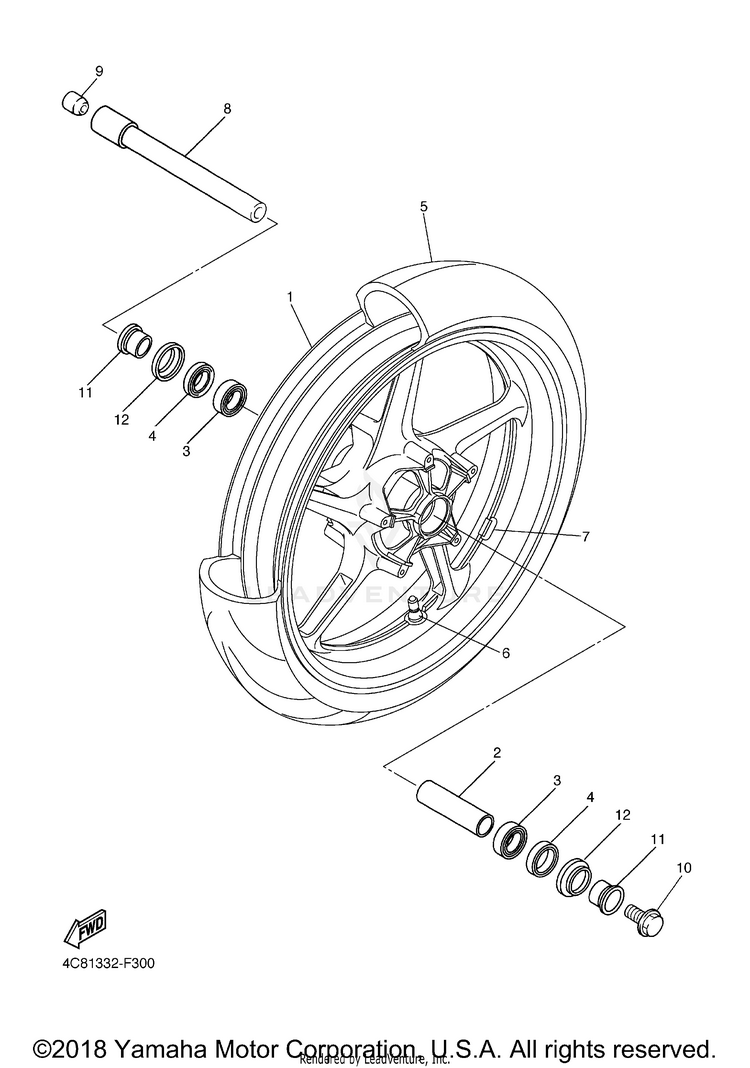

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VY-25168-00-98CAST WHEEL, FRONT | LGB FOR DPBMC,SMX$798.99$651.06Usually ships in 7-10 business days
15VY-25168-00-P2CAST WHEEL, FRONT | DNG1 FOR DRMK$682.99$571.64Usually ships in 7-10 business days
24XV-25117-00-00SPACER, BEARING$38.99$31.97Usually ships in 7-10 business days
393306-07208-00BEARING$44.99$35.098 In-Stock
493106-28043-00OIL SEAL$16.49$12.8610+ In-Stock
594112-17098-00TIRE (120/70 ZR17M/C 58W PILOT) | UR LM MICHELIN - OBTAIN LOCALLY$156.99$129.82Usually ships in 7-10 business days
594112-17097-00TIRE (120/70 ZR17 M/C 58W) | UR LM PIRELLI - OBTAIN LOCALLY$231.99$180.95Usually ships in 7-10 business days
693900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
75MT-25398-20-00BALANCER, WHEEL (30G) | UN$46.99$38.53Usually ships in 7-10 business days
75MT-25398-00-00BALANCER, WHEEL (10G) | UN$18.99$15.574 In-Stock
75MT-25398-10-00BALANCER, WHEEL (20G) | UN$18.99$15.57Usually ships in 7-10 business days
82C0-25181-00-00AXLE, WHEEL$114.99$89.69Usually ships in 7-10 business days
95PW-25188-00-00CAP$7.49$6.74Usually ships in 7-10 business days
1090105-14002-00BOLT, FLANGE$18.49$15.16Usually ships in 7-10 business days
1190387-22016-00

(replaces part #
4XV-25186-00-00)

COLLAR$42.99$35.25Usually ships in 7-10 business days
124XV-25118-00-00COVER, HUB DUST$12.99$10.65Usually ships in 7-10 business days
