2008 Yamaha YZF-R1 Taillight OEM Parts Diagram

Submodel R1 - YZFR1XCL - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

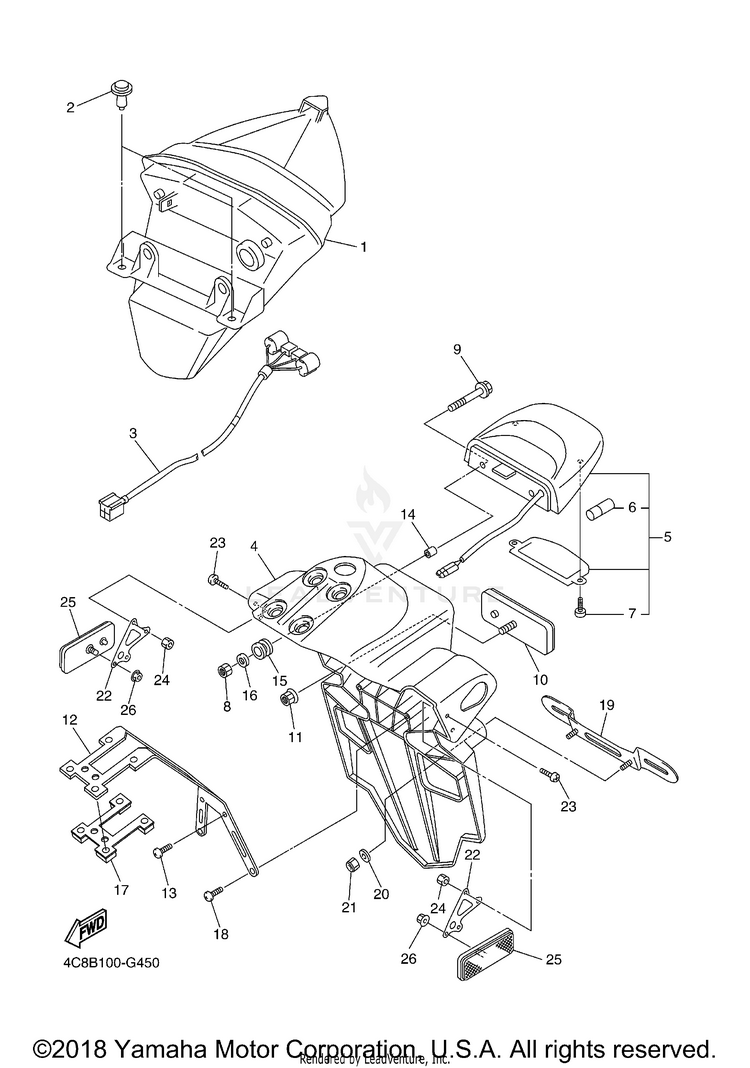

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14C8-84710-10-00TAILLIGHT UNIT ASSY$215.99$170.64Usually ships in 7-10 business days
290269-06081-00RIVET$8.49$6.6210+ In-Stock
35PW-84717-00-00CORD, TAILLIGHT$56.99$44.45Usually ships in 7-10 business days
44C8-21629-11-00GUARD, MUD$19.49$15.98Usually ships in 7-10 business days
55VX-84745-01-00LICENSE LIGHT UNIT ASSY$106.99$83.45Usually ships in 7-10 business days
64SV-84347-00-00

(replaces part #
4HC-84744-00-00)

BULB (12V-5W)$9.49$8.544 In-Stock
797707-40012-00

(replaces part #
97706-04012-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
895617-05100-00

(replaces part #
95602-05100-00)

NUT, U$10.49$8.1810+ In-Stock
990159-05011-00SCREW, WITH WASHER$3.80$3.278 In-Stock
103Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
1195607-05200-00NUT, U FLANGE$10.49$8.183 In-Stock
124C8-2161G-00-00BRACKET 6$61.99$48.35Usually ships in 7-10 business days
1397707-50016-00SCREW, TRUSS HEAD TAPPING$1.85$1.5910+ In-Stock
1490387-05003-00COLLAR$6.49$5.84Usually ships in 7-10 business days
1590480-11009-00GROMMET$1.20$1.08Usually ships in 7-10 business days
1692907-05200-00WASHER$4.80$4.1310+ In-Stock
175VY-2161G-00-00BRACKET 6$8.99$8.09Usually ships in 7-10 business days
1890167-05078-00

(replaces part #
97707-50020-00)

SCREW, TAPPING$9.49$7.405 In-Stock
195MT-84751-00-00BRACKET, LICENSE$32.99$27.05Usually ships in 7-10 business days
2090201-06M08-00

(replaces part #
90201-06050-00)

WASHER, PLATE$2.55$2.197 In-Stock
2195617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
224C8-21688-00-00BRACKET, REAR STAY$8.49$7.64Usually ships in 7-10 business days
2390150-04041-00SCREW, ROUND HEAD$0.50$0.45Usually ships in 7-10 business days
2495617-04100-00

(replaces part #
95607-04100-00)

NUT, U$10.49$8.60Usually ships in 7-10 business days
253Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
2695707-05500-00NUT, FLANGE$9.49$7.4010+ In-Stock
