SIDE COVER

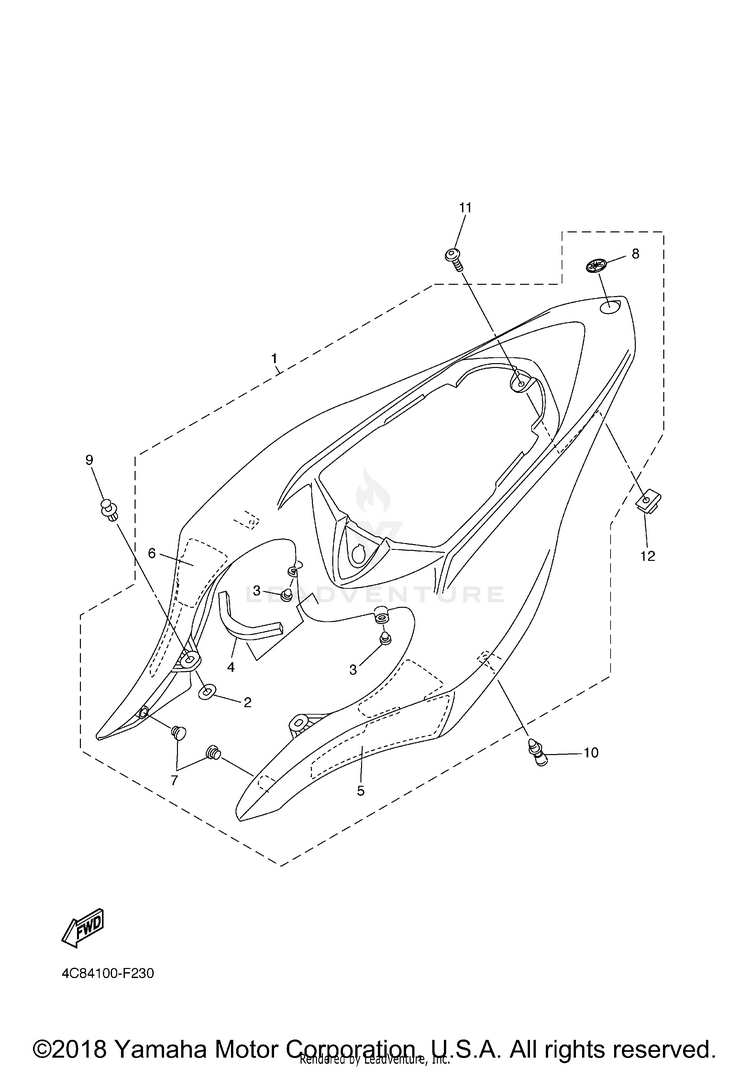

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14C8-21710-00-P3SIDE COVER ASSY 1 | UR FOR DRMK$454.99$354.89Usually ships in 7-10 business days
14C8-21710-00-P1SIDE COVER ASSY 1 | UR FOR SMX$251.99$207.99Usually ships in 7-10 business days
14C8-21710-01-P0

(replaces part #
4C8-21710-00-P0)

SIDE COVER ASSY 1 | UR FOR DPBMC$291.99$227.75Usually ships in 7-10 business days
25PW-2174X-00-00DAMPER$7.49$5.8410+ In-Stock
390338-07180-00

(replaces part #
90338-06018-00)

PLUG$8.49$6.628 In-Stock
44C8-21747-00-00DAMPER$7.49$6.74Usually ships in 7-10 business days
54C8-2172P-00-00SEAT$16.49$13.52Usually ships in 7-10 business days
64C8-2173P-00-00SEAT$16.49$13.52Usually ships in 7-10 business days
790338-08236-00PLUG$2.35$2.12Usually ships in 7-10 business days
84KN-2836B-00-00TUNING FORK MARK$21.99$17.155 In-Stock
990269-07076-00RIVET$8.49$6.6210+ In-Stock
1090269-06011-00RIVET$9.49$8.54Usually ships in 7-10 business days
1190111-05007-00BOLT, HEXAGON SOCKET HEAD$9.49$7.40
1290183-050A6-00

(replaces part #
90183-05076-00)

NUT, SPRING$2.95$2.547 In-Stock
