2009 Yamaha V-Star XVS1300A Crankcase OEM Parts Diagram

Submodel V STAR 1300 - XVS13AYCB - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

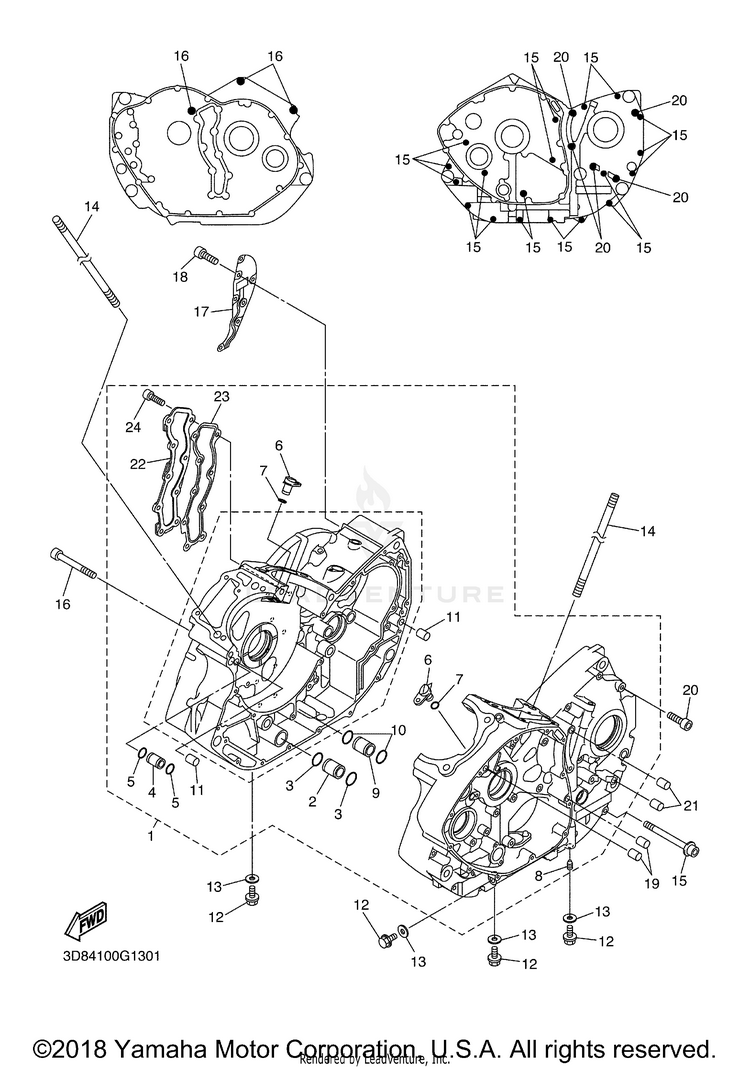

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-15100-01-00CRANKCASE ASSY$1,488.99$1,300.01Usually ships in 7-10 business days
23D8-15154-00-00NOZZLE ASSY., 2$21.99$18.03Usually ships in 7-10 business days
393210-18319-00O-RING$10.49$8.60Usually ships in 7-10 business days
41D7-15138-00-00NOZZLE 1$6.99$6.29Usually ships in 7-10 business days
593210-10001-00

(replaces part #
93210-10003-00)

O-RING$2.35$2.12Usually ships in 7-10 business days
63D8-15148-00-00NOZZLE 2$54.99$42.89Usually ships in 7-10 business days
793210-06632-00

(replaces part #
93210-06422-00)

O-RING$9.49$7.4010+ In-Stock
82H7-15138-00-00NOZZLE 1$4.85$4.36Usually ships in 7-10 business days
93D8-15155-00-00NOZZLE 3$24.99$20.49Usually ships in 7-10 business days
1093210-22298-00

(replaces part #
93210-22164-00)

O-RING$8.49$6.6210+ In-Stock
1199530-10116-00PIN, DOWEL$4.40$3.7810+ In-Stock
1295024-10016-00BOLT, FLANGE (SMALL HEAD)$4.00$3.441 In-Stock
1390430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
1490116-12011-00BOLT, STUD$16.49$13.52Usually ships in 7-10 business days
1590110-06297-00BOLT, HEXAGON SOCKET HEAD$6.49$5.84Usually ships in 7-10 business days
1691314-10110-00BOLT, HEXAGON SOCKET HEAD$8.99$8.09Usually ships in 7-10 business days
173D8-15368-00-00SEPERATOR, OIL$46.99$38.53Usually ships in 7-10 business days
1891317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
1999530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
2091317-08035-00

(replaces part #
91312-08035-00)

BOLT$8.49$7.64Usually ships in 7-10 business days
2199590-10114-00PIN, DOWEL$5.99$4.6710+ In-Stock
223D8-15431-00-00COVER, CRANKCASE 3$98.99$77.21Usually ships in 7-10 business days
233D8-15462-00-00GASKET, CRANKCASE COVER 3$22.99$18.85Usually ships in 7-10 business days
2491314-06020-00

(replaces part #
90110-06174-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
