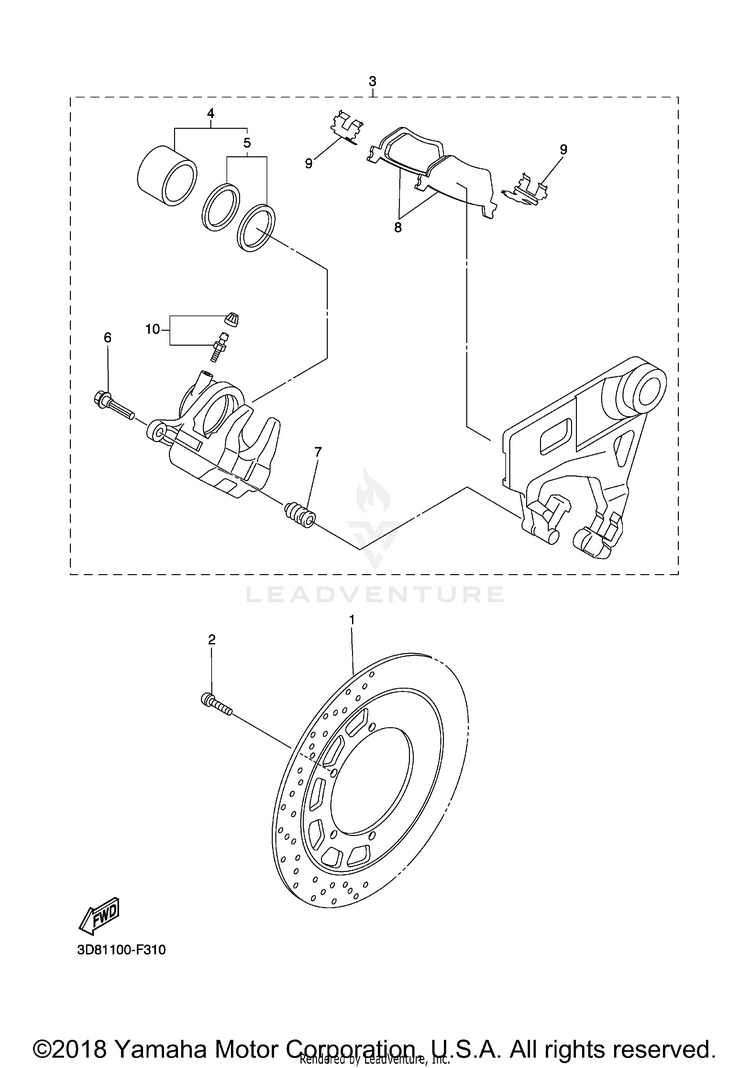

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-2582W-00-00DISK, REAR BRAKE 2$265.99$207.47Usually ships in 7-10 business days
290111-08057-00

(replaces part #
90109-083G4-00)

BOLT$2.50$2.1510+ In-Stock
33D8-2580W-10-00

(replaces part #
3D8-2580W-00-00)

CALIPER ASSY, REAR 2$489.99$404.94Usually ships in 7-10 business days
41D7-25802-00-00

(replaces part #
1D7-W0057-00-00)

PISTON ASSY, CALIPER$61.99$48.35Usually ships in 7-10 business days
55JW-25803-00-00

(replaces part #
5JW-W0047-00-00)

CALIPER SEAL KIT$17.99$14.75Usually ships in 7-10 business days
65JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
74TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
83D8-25806-00-00

(replaces part #
1D7-W0046-00-00)

BRAKE PAD KIT 2$52.99$41.335 In-Stock
91D7-25919-00-00SUPPORT, PAD$19.99$16.39Usually ships in 7-10 business days
1015B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
