2009 Yamaha V-Star XVS1300A Cylinder Head OEM Parts Diagram

Submodel V STAR 1300 - XVS13AYCB - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

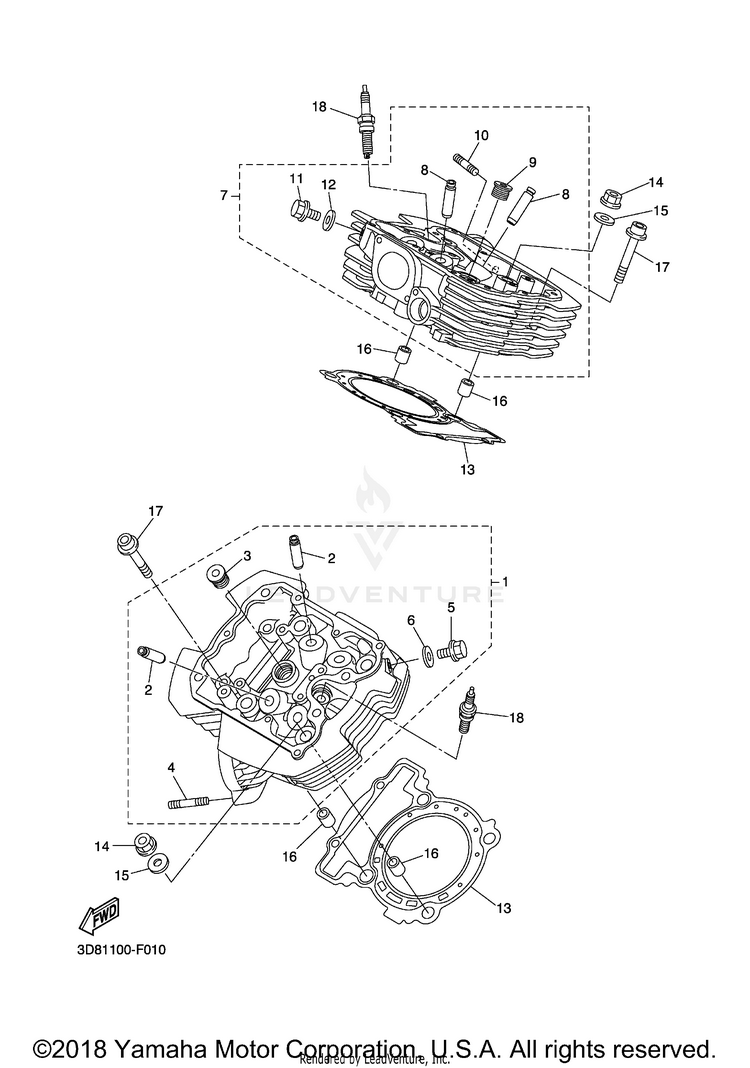

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-11101-09-00

(replaces part #
3D8-11101-00-00)

CYLINDER HEAD ASSY$798.99$669.14Usually ships in 7-10 business days
24G0-11133-11-00GUIDE, VALVE 1$53.99$42.119 In-Stock
390340-18002-00PLUG, STRAIGHT SCREW$11.49$9.42Usually ships in 7-10 business days
495612-08625-00BOLT, STUD$6.49$5.0610+ In-Stock
595022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
690430-08119-00GASKET$7.49$5.849 In-Stock
73D8-11101-19-00

(replaces part #
3D8-11101-10-00)

CYLINDER HEAD ASSY$798.99$669.14Usually ships in 7-10 business days
84G0-11133-11-00GUIDE, VALVE 1$53.99$42.119 In-Stock
990340-18002-00PLUG, STRAIGHT SCREW$11.49$9.42Usually ships in 7-10 business days
1095612-08625-00BOLT, STUD$6.49$5.0610+ In-Stock
1195022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
1290430-08119-00GASKET$7.49$5.849 In-Stock
133D8-11181-00-00GASKET, CYLINDER HEAD 1$47.99$39.35Usually ships in 7-10 business days
1490179-12004-00NUT$8.49$6.6210+ In-Stock
1590201-12025-00WASHER, PLATE$11.49$9.42Usually ships in 7-10 business days
1691815-16017-00PIN, DOWEL$9.49$7.404 In-Stock
1790110-08065-00BOLT, HEXAGON SOCKET HEAD$6.49$5.84Usually ships in 7-10 business days
18LMA-R7A90-00-00

(replaces part #
NGK-LMAR7-A9-00)

LMAR7A9 NGK SPLUG$13.49$11.31Usually ships in 7-10 business days
18LMA-R6A90-00-00

(replaces part #
NGK-LMAR6-A9-00)

PLUG, SPARK (NGK LMAR6A-9) | AP$14.49$11.3110+ In-Stock
