2009 Yamaha Warrior XV1700 Cylinder Head OEM Parts Diagram

Submodel ROAD STAR WARRIOR - XV17PCYCS - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER HEAD

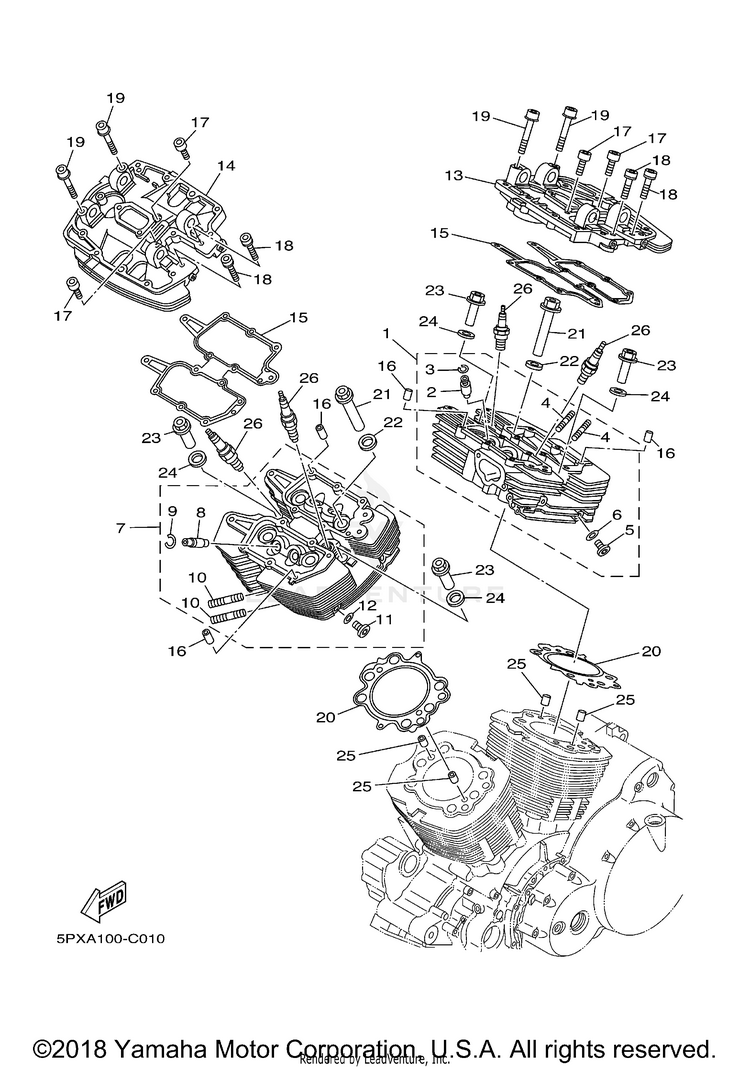

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-11101-00-00CYLINDER HEAD ASSY 1$1,102.99$923.64Usually ships in 7-10 business days
24WM-11133-10-00GUIDE, VALVE 1$99.99$81.98Usually ships in 7-10 business days
393440-12052-00CIRCLIP$2.60$2.248 In-Stock
495617-08625-00BOLT, STUD$3.60$3.1010+ In-Stock
590340-12112-00PLUG, STRAIGHT SCREW$10.49$8.183 In-Stock
690201-12790-00WASHER, PLATE$10.49$8.185 In-Stock
75PX-11101-10-00CYLINDER HEAD ASSY 2$793.99$693.20Usually ships in 7-10 business days
84WM-11133-10-00GUIDE, VALVE 1$99.99$81.98Usually ships in 7-10 business days
993440-12052-00CIRCLIP$2.60$2.248 In-Stock
1095617-08625-00BOLT, STUD$3.60$3.1010+ In-Stock
1190340-12112-00PLUG, STRAIGHT SCREW$10.49$8.183 In-Stock
1290201-12790-00WASHER, PLATE$10.49$8.185 In-Stock
135PX-11131-01-00HEAD, CYLINDER 3$334.99$278.34Usually ships in 7-10 business days
145PX-11141-01-00HEAD, CYLINDER 4$371.99$309.25Usually ships in 7-10 business days
155PX-11182-01-00GASKET, CYLINDER HEAD 2$52.99$41.33Usually ships in 7-10 business days
1691808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
1790110-06138-00

(replaces part #
91317-06030-00)

BOLT$6.49$5.0610+ In-Stock
1890109-061F7-00BOLT$5.49$4.94Usually ships in 7-10 business days
1990110-08033-00BOLT, HEXAGON SOCKET HEAD$4.35$3.92Usually ships in 7-10 business days
205PX-11181-01-00GASKET, CYLINDER HEAD 1$46.99$38.53Usually ships in 7-10 business days
215PX-11171-00-00NUT, HOLDING$22.99$18.85Usually ships in 7-10 business days
225VN-11175-00-00WASHER, HOLDING 1$12.99$10.65Usually ships in 7-10 business days
234WM-11172-00-00NUT, HOLDING$18.49$15.16Usually ships in 7-10 business days
244WM-11176-00-00WASHER, HOLDING$18.99$15.57Usually ships in 7-10 business days
2590387-062T5-00COLLAR$10.49$8.60Usually ships in 7-10 business days
26DPR-7EA90-00-00

(replaces part #
NGK-DPR7E-A9-00)

DPR7EA9 NGK SPLUG | UR$4.40$3.7810+ In-Stock
