2009 Yamaha Warrior XV1700 Front Master Cylinder OEM Parts Diagram

Submodel ROAD STAR WARRIOR - XV17PCYCS - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

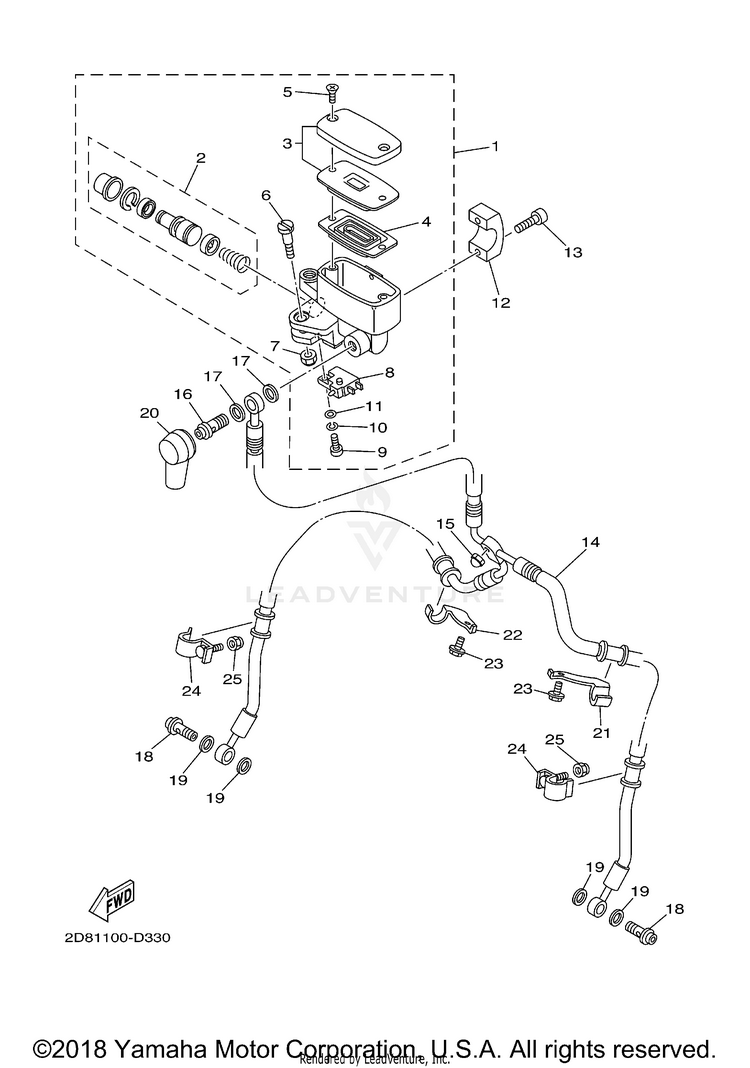

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-W2587-20-00MASTER CYLINDER SUB ASSY$232.99$181.73Usually ships in 7-10 business days
25PX-W0041-00-00CYLINDER KIT, MASTER$82.99$64.73Usually ships in 7-10 business days
35VN-W2585-00-00RESERVOIR CAP SET$271.99$226.07Usually ships in 7-10 business days
44NK-25854-00-00DIAPHRAGM, RESERVOIR$24.99$20.49Usually ships in 7-10 business days
53D8-2589H-10-00

(replaces part #
4NK-2589H-00-00)

SCREW$8.49$6.6210+ In-Stock
64NK-2589F-00-00BOLT, LEVER$14.49$11.88Usually ships in 7-10 business days
795604-06100-00NUT, U$9.49$7.403 In-Stock
84HM-83980-00-00FRONT STOP SWITCH ASSY$45.99$35.873 In-Stock
998517-04012-00

(replaces part #
98502-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
1092990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1192990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
124NK-25867-00-00BRACKET, MASTER CYLINDER$26.99$22.13Usually ships in 7-10 business days
1391314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
145PX-25872-20-00HOSE, BRAKE 1$182.99$144.67Usually ships in 7-10 business days
1595307-06800-00

(replaces part #
90176-06043-00)

NUT$4.15$3.574 In-Stock
1690401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
1790430-10005-00GASKET$9.49$7.4010+ In-Stock
1890401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
1990430-10005-00GASKET$9.49$7.4010+ In-Stock
204L0-25862-02-00

(replaces part #
4L0-25862-01-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
215PX-25886-00-00HOLDER, BRAKE HOSE$11.49$9.42Usually ships in 7-10 business days
225PX-25887-00-00HOLDER, BRAKE HOSE$12.49$10.24Usually ships in 7-10 business days
2395817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
245PX-25875-00-00HOLDER, BRAKE HOSE 1$10.49$8.60Usually ships in 7-10 business days
2595307-06800-00

(replaces part #
90176-06043-00)

NUT$4.15$3.574 In-Stock
