2009 Yamaha Warrior XV1700 Meter OEM Parts Diagram

Submodel ROAD STAR WARRIOR - XV17PCYCS - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

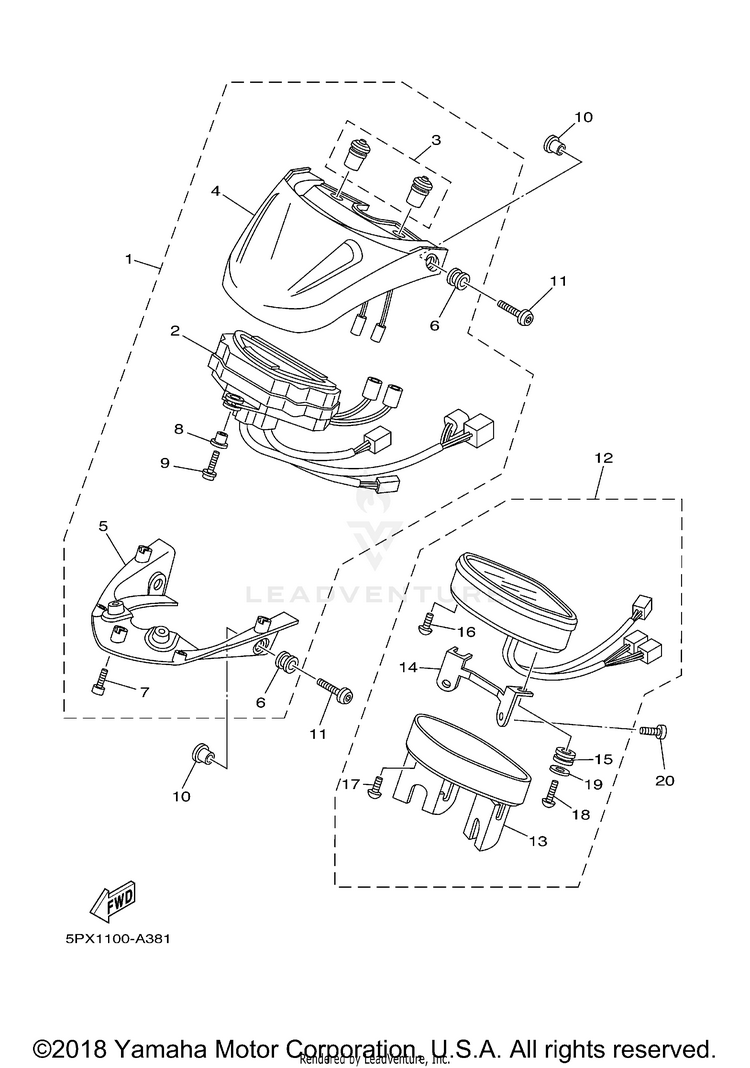

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-83500-21-00METER ASSY (MPH)$964.99$767.99Usually ships in 7-10 business days
25PX-8358G-21-00LCD ASSY$919.99$725.72Usually ships in 7-10 business days
35PX-8358J-00-00SWITCH, METER CONTROL$84.99$66.29Usually ships in 7-10 business days
45PX-8357B-00-00COVER, METER 1 ASSY$368.99$329.04Usually ships in 7-10 business days
55PX-83579-00-00COVER, METER 2$276.99$229.76Usually ships in 7-10 business days
690480-12007-00GROMMET$9.49$7.4010+ In-Stock
791380-04010-00BOLT$8.49$7.64Usually ships in 7-10 business days
85PX-83522-00-00COLLAR$3.30$2.97Usually ships in 7-10 business days
997602-03112-00SCREW, PAN HEAD WITH WASHER$1.15$1.04Usually ships in 7-10 business days
1090560-06201-00SPACER$15.49$12.082 In-Stock
1190149-06105-00SCREW$6.49$5.066 In-Stock
125PX-83570-01-00SPEEDOMETER ASSY (MPH)$361.99$322.78Usually ships in 7-10 business days
135PX-83507-00-00COVER, SPEEDOMETER$83.99$65.51Usually ships in 7-10 business days
145PX-83519-00-00BRACKET, METER$26.99$22.13Usually ships in 7-10 business days
154XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
1697707-30014-00SCREW, TAPPING$0.85$0.76Usually ships in 7-10 business days
1790167-03058-00

(replaces part #
90164-03010-00)

SCREW, TAPPING$1.35$1.22Usually ships in 7-10 business days
1897707-50016-00SCREW, TRUSS HEAD TAPPING$1.85$1.5910+ In-Stock
1990201-05033-00

(replaces part #
53Y-83524-00-00)

WASHER, SPECIAL$11.49$8.964 In-Stock
2091314-08012-00BOLT, HEXAGON SOCKET HEAD$10.49$8.601 In-Stock
