2011 Yamaha YZF-R1 Frame OEM Parts Diagram

Submodel YZFR1 - YZFR1ACL - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

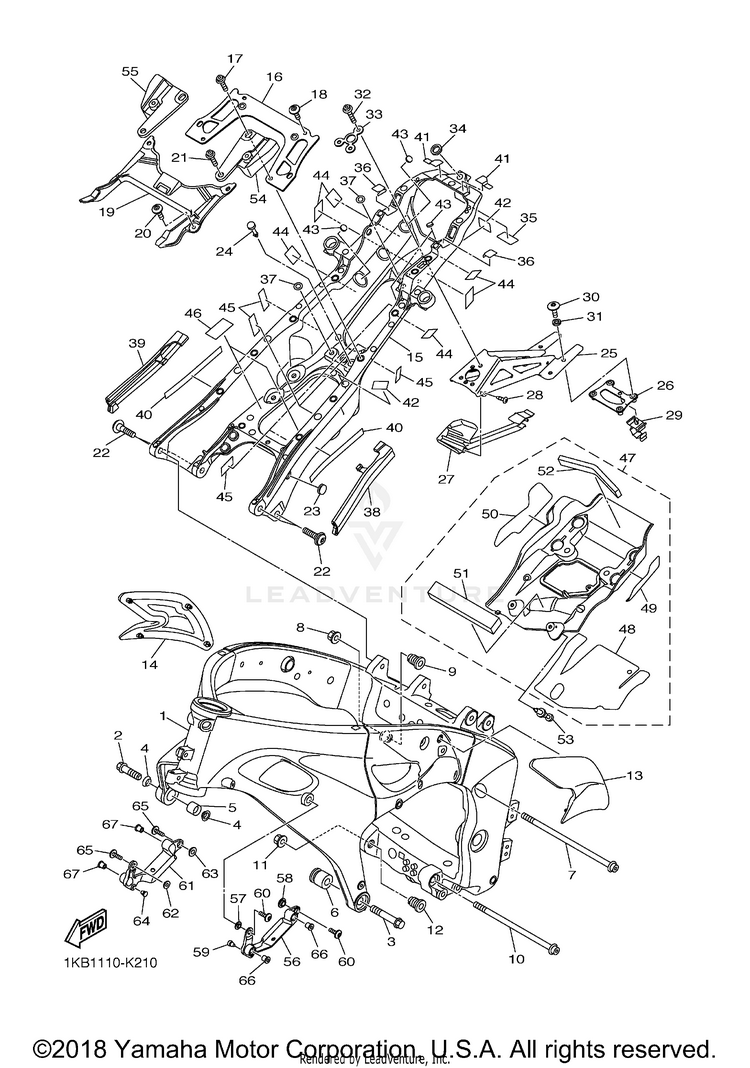

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
114B-21110-00-00FRAME COMP. | U49$2,556.99$2,556.99Usually ships in 7-10 business days
114B-21110-20-00FRAME COMP. | FOR CALIFORNIA$2,555.99$2,555.99Usually ships in 7-10 business days
290105-12062-00BOLT, FLANGE$17.49$13.6410+ In-Stock
395817-12080-00BOLT, FLANGE$5.99$5.39Usually ships in 7-10 business days
414B-21414-00-00BOSS, ENGINE MOUNT$24.99$20.49Usually ships in 7-10 business days
514B-21424-00-00BOSS, ENGINE MOUNT$34.99$28.69Usually ships in 7-10 business days
614B-2141R-00-00BOSS$103.99$81.11Usually ships in 7-10 business days
790110-10024-00BOLT, HEXAGON SOCKET HEAD$23.99$19.67Usually ships in 7-10 business days
890179-10028-00NUT$8.49$7.64Usually ships in 7-10 business days
914B-21495-00-00BOLT, ENGINE ADJUSTING$22.99$18.85Usually ships in 7-10 business days
1090110-10023-00BOLT, HEXAGON SOCKET HEAD$45.99$37.71Usually ships in 7-10 business days
1190179-10028-00NUT$8.49$7.64Usually ships in 7-10 business days
1214B-21495-00-00BOLT, ENGINE ADJUSTING$22.99$18.85Usually ships in 7-10 business days
1314B-24121-00-00SEAT, KNEE GRIP 1$73.99$57.71Usually ships in 7-10 business days
1414B-24122-00-00SEAT, KNEE GRIP 2$49.99$40.99Usually ships in 7-10 business days
1514B-21190-00-00REAR FRAME COMP.$1,002.99$813.15Usually ships in 7-10 business days
1614B-21131-00-00BRACKET$123.99$96.71Usually ships in 7-10 business days
1790109-06015-00BOLT$5.49$4.2810+ In-Stock
1890111-06051-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
1914B-21214-00-00REINF, FRAME RR.$119.99$93.59Usually ships in 7-10 business days
2090111-06051-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
2190109-06015-00BOLT$5.49$4.2810+ In-Stock
2214B-2585H-09-00SCREW, SET$7.99$7.19Usually ships in 7-10 business days
2390338-15004-00PLUG$9.49$8.54Usually ships in 7-10 business days
2490269-04025-00RIVET$3.05$2.74Usually ships in 7-10 business days
2514B-21640-00-00REAR STAY COMP.$112.99$88.13Usually ships in 7-10 business days
2614B-21682-00-00STAY, PLATE$72.99$56.93Usually ships in 7-10 business days
2714B-2163A-01-00

(replaces part #
14B-2163A-00-00)

COVER, REAR FENDER 1$9.49$8.54Usually ships in 7-10 business days
2897702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
2990464-14228-00CLAMP$5.49$4.94Usually ships in 7-10 business days
3090111-06129-00BOLT, HEX. SOCKET BUTTON$8.49$7.64Usually ships in 7-10 business days
3190201-06040-00

(replaces part #
90387-061Y1-00)

WASHER, PLATE$3.10$2.79Usually ships in 7-10 business days
3290109-06031-00

(replaces part #
90110-06156-00)

BOLT$2.85$2.4510+ In-Stock
3314B-21615-00-00WASHER, SPECIAL 1$22.99$18.85Usually ships in 7-10 business days
3413S-21746-00-00DAMPER$7.49$6.74Usually ships in 7-10 business days
3514B-22873-00-00SEAL 1$4.60$4.14Usually ships in 7-10 business days
3614B-22874-00-00SEAL 2$3.80$3.42Usually ships in 7-10 business days
3713S-2173M-00-00SEAL 3$7.49$6.74Usually ships in 7-10 business days
3814B-22876-00-00SEAL 4$14.49$11.88Usually ships in 7-10 business days
3914B-22877-00-00SEAL, 5$12.49$10.24Usually ships in 7-10 business days
4013S-21567-00-00TAPE, 2$17.99$14.75Usually ships in 7-10 business days
4114B-22879-00-00SEAL, 7$4.75$4.28Usually ships in 7-10 business days
4214B-28425-00-00DAMPER 3$4.90$4.41Usually ships in 7-10 business days
4314B-28217-00-00DAMPER 1$0.25$0.22Usually ships in 7-10 business days
4414B-28227-00-00DAMPER 2-$3.673 In-Stock
4514B-28237-00-00DAMPER 3$3.60$3.24Usually ships in 7-10 business days
4614B-28435-00-00DAMPER 4$4.40$3.96Usually ships in 7-10 business days
4714B-2110N-20-00COVER ASSY 2$168.99$131.81Usually ships in 7-10 business days
4814B-2112B-00-00SEAT 1$26.99$22.13Usually ships in 7-10 business days
4914B-2113C-00-00SHEET, 2$3.65$3.28Usually ships in 7-10 business days
5014B-2113D-00-00SHEET, 3$1.65$1.48Usually ships in 7-10 business days
5190520-15001-00DAMPER, PLATE$4.05$3.64Usually ships in 7-10 business days
5290520-15004-00DAMPER, PLATE$2.15$1.94Usually ships in 7-10 business days
5390269-06016-00RIVET$4.40$3.96Usually ships in 7-10 business days
5414B-2172E-10-00STAY, SIDE COVER 1$20.99$17.21Usually ships in 7-10 business days
5514B-2174E-10-00STAY, SIDE COVER 2$28.99$23.77Usually ships in 7-10 business days
5614B-2836F-00-00BRACKET 3$8.49$7.64Usually ships in 7-10 business days
5790387-06217-00COLLAR$20.99$17.21Usually ships in 7-10 business days
5890387-08079-00

(replaces part #
90560-08251-00)

COLLAR$9.49$8.54Usually ships in 7-10 business days
5990338-07180-00

(replaces part #
90338-06018-00)

PLUG$8.49$6.628 In-Stock
6090111-06051-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
6114B-2836G-00-00BRACKET 4$8.49$7.643 In-Stock
6290387-06217-00COLLAR$20.99$17.21Usually ships in 7-10 business days
6390387-08079-00

(replaces part #
90560-08251-00)

COLLAR$9.49$8.54Usually ships in 7-10 business days
6490338-07180-00

(replaces part #
90338-06018-00)

PLUG$8.49$6.628 In-Stock
6590111-06051-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
6690179-05523-00NUT$7.49$5.8410+ In-Stock
6790179-05523-00NUT$7.49$5.8410+ In-Stock
