2011 Yamaha YZF-R1 Starter OEM Parts Diagram

Submodel YZFR1 - YZFR1ACL - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

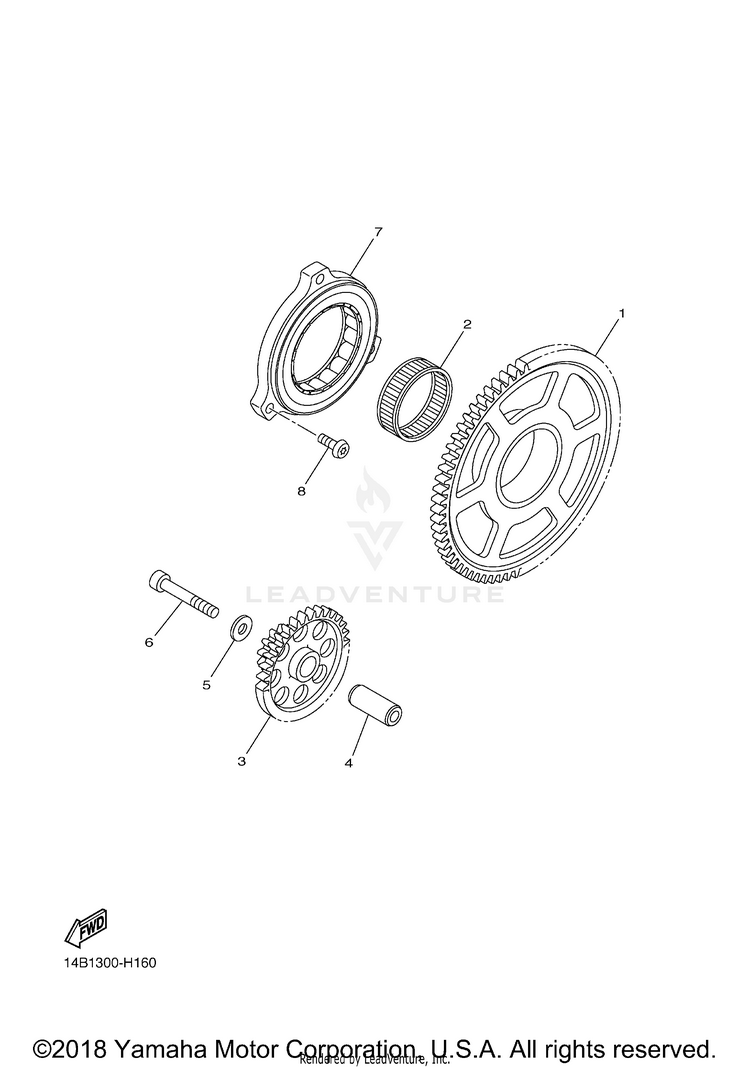

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
114B-15515-00-00GEAR 3$271.99$212.15Usually ships in 7-10 business days
293310-24160-00BEARING$39.99$32.79Usually ships in 7-10 business days
314B-15517-00-00GEAR, IDLER 2$112.99$88.13Usually ships in 7-10 business days
414B-15521-00-00SHAFT 1$11.49$9.42Usually ships in 7-10 business days
590201-06104-00

(replaces part #
90201-06589-00)

WASHER, PLATE$6.49$5.064 In-Stock
691312-06040-00

(replaces part #
90110-06223-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.404 In-Stock
714B-15570-00-00STARTER CLUTCH ASSY$190.99$148.97Usually ships in 7-10 business days
890149-06156-00

(replaces part #
90149-06158-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
