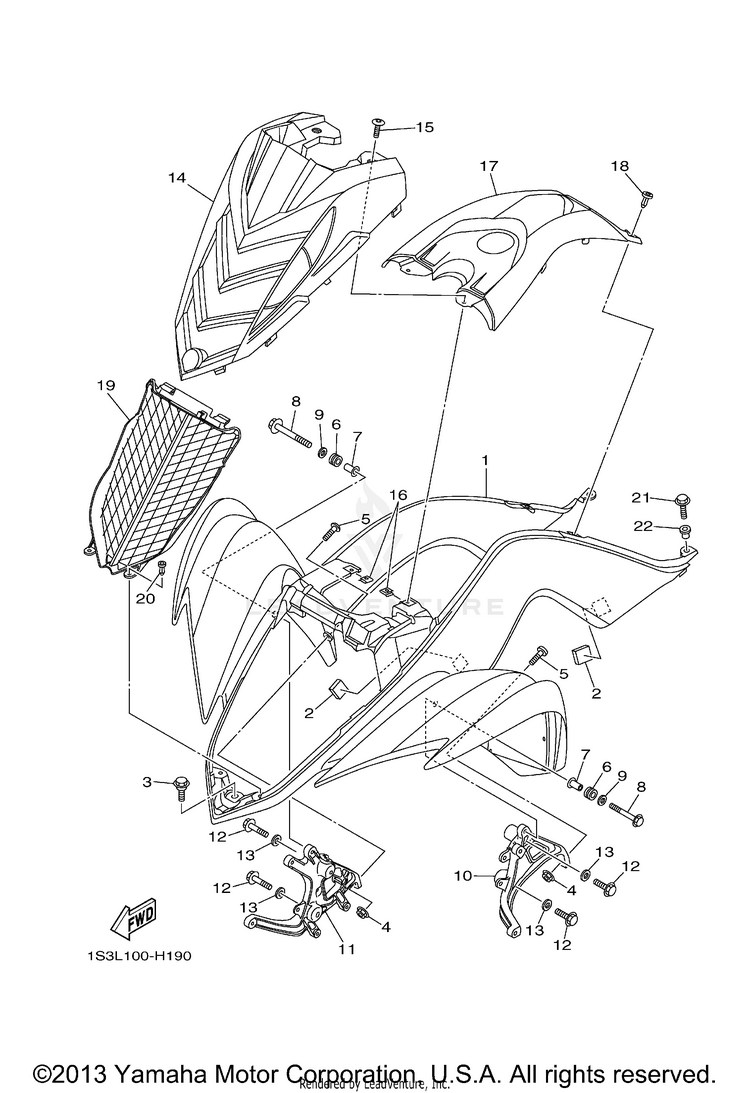

2012 Yamaha RAPTOR 700 Front Fender OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
-	1S3-W2151-11-00	FRONT FENDER COMP. \| Use for Color Bluish White Solid 1 ( BWS1 / 0892 )	$346.99	$315.68	Usually ships in 7-10 business days
1	1S3-W2151-01-00	FRONT FENDER COMP. \| Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )	$291.99	$240.19	Usually ships in 7-10 business days
2	1S3-21541-00-00	DAMPER 1	$8.49	$6.62	4 In-Stock
3	90109-06172-00	BOLT	$3.50	$3.50	10+ In-Stock
4	95604-06200-00 (replaces part # 95602-06200-00)	NUT, U FLANGE	$2.95	$2.54	10+ In-Stock
5	90111-06137-00	BOLT, HEX. SOCKET BUTTON	$6.49	$5.06	10+ In-Stock
6	90480-14023-00 (replaces part # 90480-14102-00)	GROMMET	$8.49	$6.62	10+ In-Stock
7	90387-06136-00	COLLAR	$8.49	$6.62	10+ In-Stock
8	95812-06030-00	BOLT, FLANGE	$2.15	$1.85	3 In-Stock
9	90201-06078-00	WASHER, PLATE	$6.49	$5.06	10+ In-Stock
10	1S3-21513-00-00	STAY, FENDER 1	$71.99	$56.15	4 In-Stock
11	1S3-21514-00-00	STAY, FENDER 2	$87.99	$68.63	5 In-Stock
12	95812-06014-00	BOLT, FLANGE	$6.49	$5.06	10+ In-Stock
13	90201-06089-00	WASHER, PLATE	$4.65	$4.00	6 In-Stock
14	1S3-23391-10-00	PANEL, FRONT	$80.99	$63.17	Usually ships in 7-10 business days
15	90149-05034-00	SCREW	$8.49	$6.62	6 In-Stock
16	90183-05008-00	NUT, SPRING	$10.49	$8.18	10+ In-Stock
17	1S3-2171A-00-00	COVER, TOP	$51.99	$40.55	2 In-Stock
18	90269-06002-00	RIVET	$9.49	$7.40	10+ In-Stock
19	1S3-12467-00-00	COVER, RADIATOR	$31.99	$24.95	2 In-Stock
20	90269-06002-00	RIVET	$9.49	$7.40	10+ In-Stock
21	90105-06084-00	BOLT, FLANGE	$4.95	$4.26	10+ In-Stock
22	90387-06146-00	COLLAR	$9.49	$7.40	10+ In-Stock

-
