2012 Yamaha RAPTOR 700 Intake OEM Parts Diagram

Submodel RAPTOR 700R - YFM7RBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

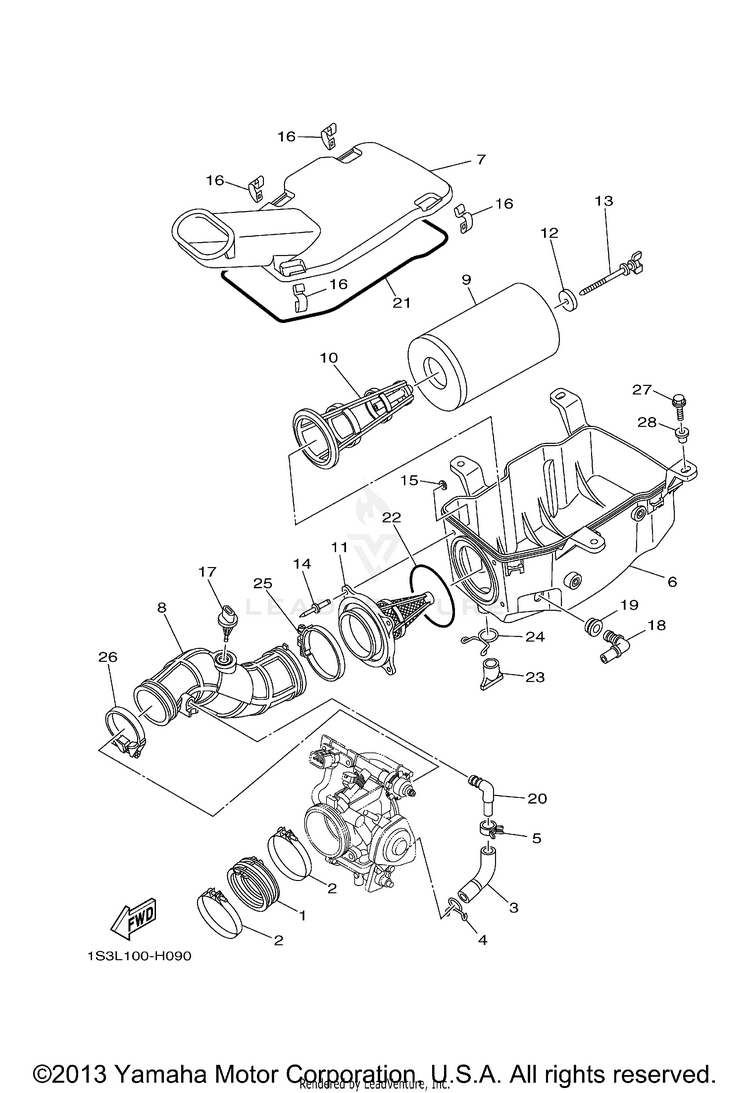

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VK-13586-00-00JOINT, CARBURETOR 1$34.99$27.296 In-Stock
290450-72003-00HOSE CLAMP ASSY$20.99$16.376 In-Stock
31S3-13545-00-00HOSE 1$14.49$11.88Usually ships in 7-10 business days
490467-160A4-00CLIP$9.49$7.404 In-Stock
590467-15012-00CLIP$9.49$7.408 In-Stock
61S3-14411-00-00CASE, AIR CLEANER 1$58.99$46.011 In-Stock
71S3-14412-01-00CAP, CLEANER CASE 1$32.99$25.731 In-Stock
81S3-14453-00-00JOINT, AIR CLEANER 1$78.99$61.61Usually ships in 7-10 business days
91S3-14451-01-00

(replaces part #
1S3-14451-00-00)

ELEMENT, AIR CLEAN$45.99$35.875 In-Stock
101S3-14458-00-00GUIDE$35.99$28.076 In-Stock
111S3-14459-01-00HOLDER, GUIDE$54.99$42.89Usually ships in 7-10 business days
1290209-06096-00WASHER$10.49$8.1810+ In-Stock
1390122-06010-00BOLT, WING$11.49$8.9610+ In-Stock
1490267-48138-00RIVET, BLIND$4.05$3.4810+ In-Stock
1590201-04028-00WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
165TH-14436-00-00

(replaces part #
5GH-14436-00-00)

HOOK$10.99$8.5710+ In-Stock
175VU-85886-00-00SENSOR, AIR TEMPRATURE$62.99$49.131 In-Stock
185KM-14419-00-00PIPE$8.49$6.622 In-Stock
1931A-14435-01-00

(replaces part #
31A-14435-00-00)

GROMMET$5.99$4.674 In-Stock
2031A-14419-00-00PIPE$8.49$6.626 In-Stock
211VJ-14462-00-00

(replaces part #
10M-14457-00-00)

SEAL$19.99$15.5910+ In-Stock
221S3-14457-00-00SEAL$5.99$4.672 In-Stock
2359V-14457-00-00SEAL$7.49$5.8410+ In-Stock
2490467-220A1-00CLIP$6.49$5.0610+ In-Stock
2590450-75002-00

(replaces part #
90460-75020-00)

HOSE CLAMP ASSY$12.49$9.748 In-Stock
2690450-59005-00

(replaces part #
90450-59006-00)

HOSE CLAMP ASSY$17.49$13.6410+ In-Stock
2790105-06084-00BOLT, FLANGE$4.95$4.2610+ In-Stock
2890387-08073-00COLLAR$10.49$8.1810+ In-Stock
