2012 Yamaha RAPTOR 700 Headlight OEM Parts Diagram

Submodel RAPTOR 700R - YFM7RBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

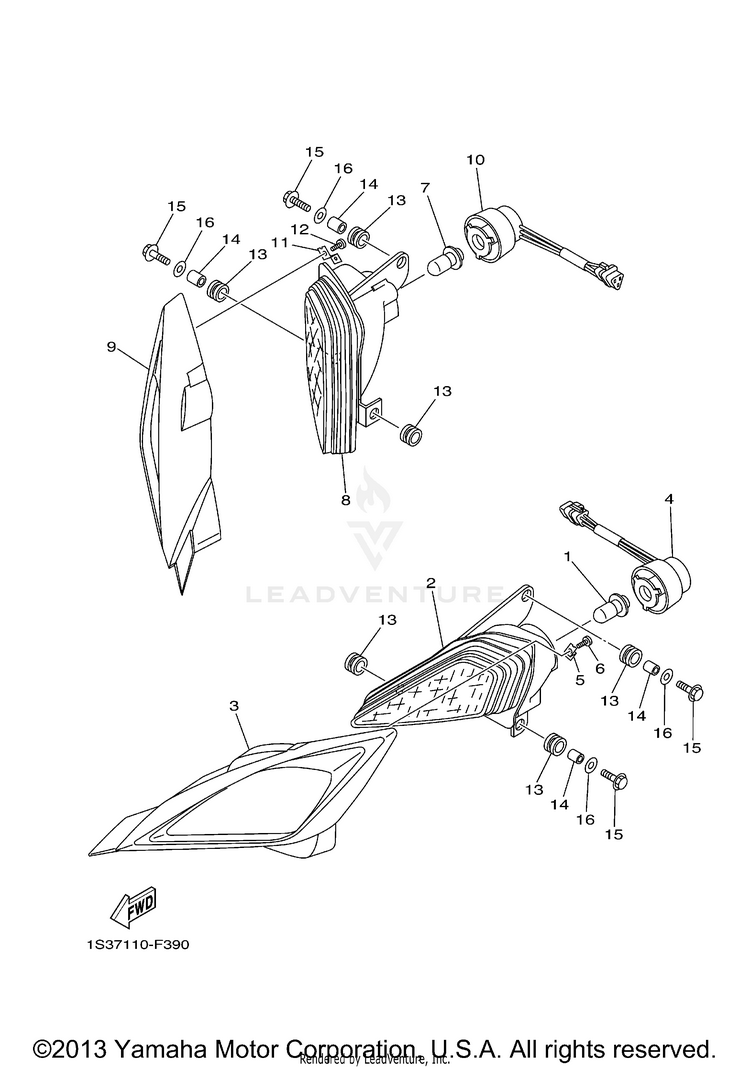

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KB-84314-01-00BULB (12V-30/30W)$42.99$33.5310+ In-Stock
25TG-84110-03-00HEADLIGHT UNIT ASSY$115.99$90.478 In-Stock
31S3-84165-00-00RIM, HEADLIGHT COVER 1$17.99$14.035 In-Stock
45TG-84140-01-00SOCKET CORD ASSY$45.99$35.874 In-Stock
51S3-8413J-00-00PLATE, FITTING$8.49$6.627 In-Stock
697707-30510-00SCREW, TAPPING$2.30$1.988 In-Stock
74KB-84314-01-00BULB (12V-30/30W)$42.99$33.5310+ In-Stock
85TG-84310-03-00HEADLIGHT UNIT ASSY$115.99$90.472 In-Stock
91S3-84166-00-00RIM, HEADLIGHT COVER 2$17.99$17.038 In-Stock
105TG-84340-01-00SOCKET CORD ASSY 1$53.99$42.112 In-Stock
111S3-8413J-00-00PLATE, FITTING$8.49$6.627 In-Stock
1297707-30510-00SCREW, TAPPING$2.30$1.988 In-Stock
1390480-14023-00

(replaces part #
90480-14102-00)

GROMMET$8.49$6.6210+ In-Stock
1490387-07598-00COLLAR$6.49$5.0610+ In-Stock
1595812-06030-00BOLT, FLANGE$2.15$1.853 In-Stock
1690201-06078-00WASHER, PLATE$6.49$5.0610+ In-Stock
