2013 Yamaha Raider XV1900C Cylinder OEM Parts Diagram

Submodel RAIDER - XV19CDCB - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

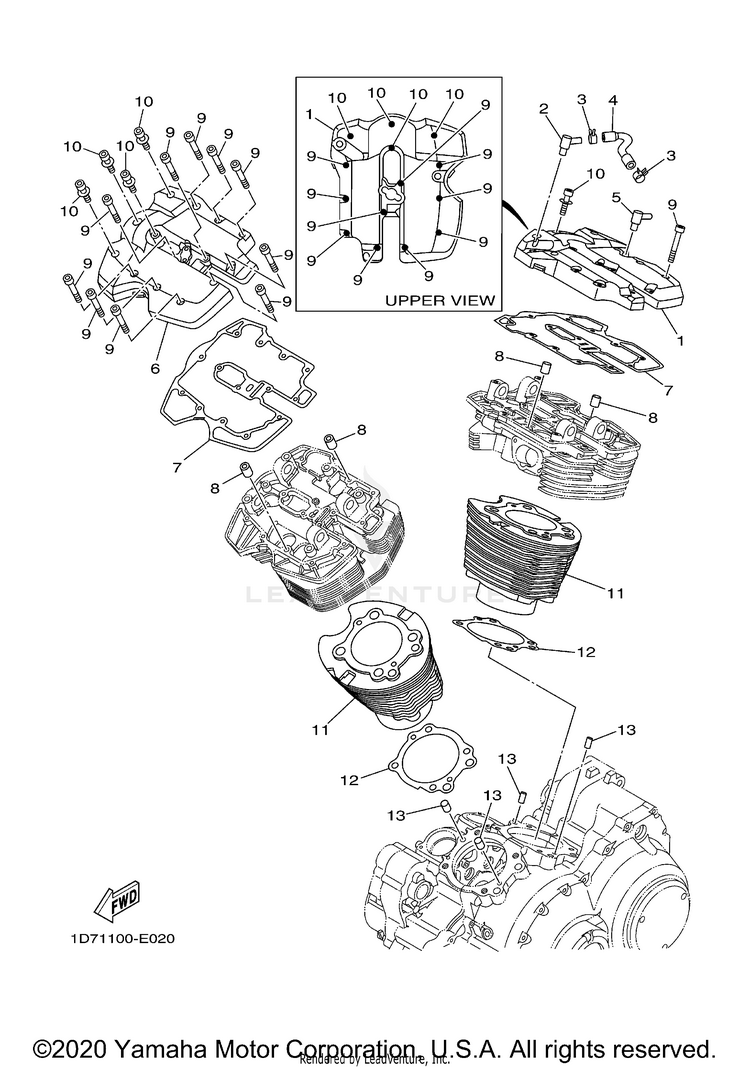

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11D7-11191-00-00COVER, CYLINDER HEAD 1$373.99$310.91Usually ships in 7-10 business days
25PX-11167-00-00PIPE, BREATHER 2$61.99$48.35Usually ships in 7-10 business days
390467-15001-00CLIP$8.49$7.641 In-Stock
41D7-11166-00-00PIPE, BREATHER 1$16.49$13.52Usually ships in 7-10 business days
54GL-15371-01-00BREATHER$90.99$70.97Usually ships in 7-10 business days
61D7-11192-01-00COVER, CYLINDER HEAD 2$457.99$380.51Usually ships in 7-10 business days
71D7-11193-00-00GASKET, HEAD COVER 1$70.99$55.37Usually ships in 7-10 business days
891808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
990110-06207-00BOLT, HEXAGON SOCKET HEAD$8.49$7.64Usually ships in 7-10 business days
1090110-06421-00

(replaces part #
90110-06220-00)

BOLT, HEXAGON SOCKET HEAD$4.85$4.36Usually ships in 7-10 business days
111D7-11311-01-00CYLINDER 1$910.99$762.46Usually ships in 7-10 business days
121D7-11351-00-00GASKET, CYLINDER$28.99$23.77Usually ships in 7-10 business days
1390387-062T5-00COLLAR$10.49$8.60Usually ships in 7-10 business days
