2013 Yamaha Raider XV1900C Meter OEM Parts Diagram

Submodel RAIDER - XV19CDCB - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

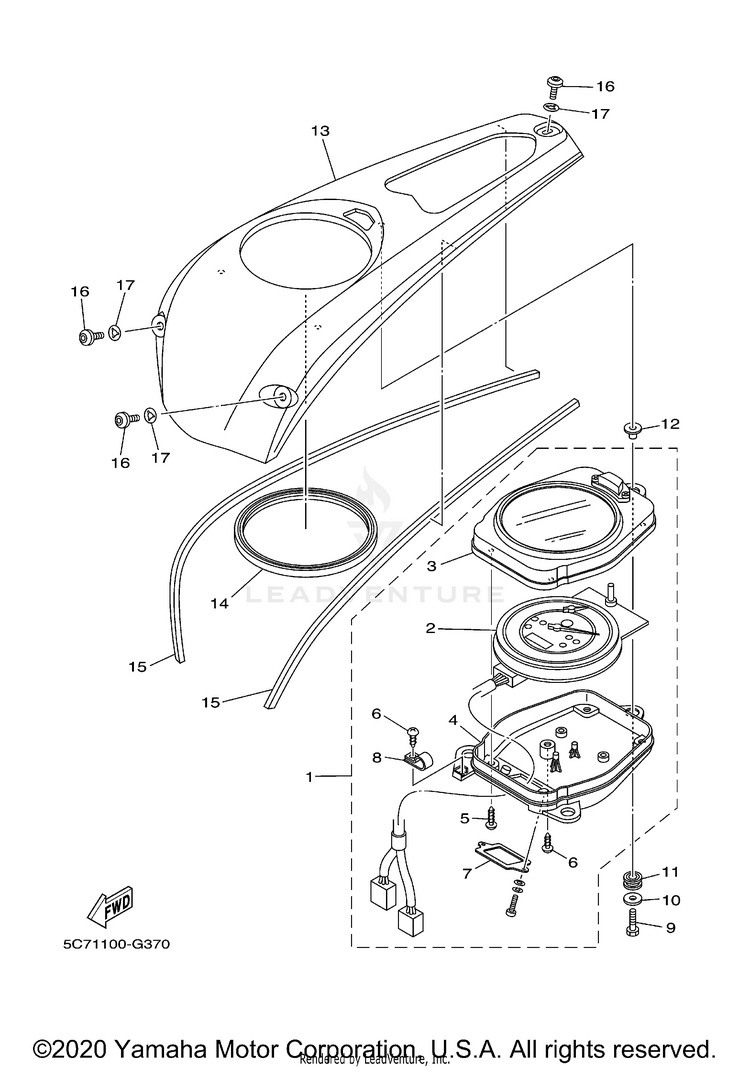

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15C7-83500-02-00METER ASSY$918.99$801.82Usually ships in 7-10 business days
25C7-83510-02-00SPEEDOMETER ASSY$811.99$679.35Usually ships in 7-10 business days
35C7-8353E-00-00CASE, METER UPPER$265.99$207.47Usually ships in 7-10 business days
44WM-8353F-02-00CASE, METER LOWER$50.99$39.77Usually ships in 7-10 business days
597707-40016-00SCREW, TAPPING$9.49$7.4010+ In-Stock
690164-04023-00SCREW, TAPPING$1.35$1.22Usually ships in 7-10 business days
74WM-83519-00-00BRACKET, METER$5.49$4.94Usually ships in 7-10 business days
85EL-8357E-00-00CLAMP$2.10$1.89Usually ships in 7-10 business days
998517-05020-00

(replaces part #
90101-05004-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1090201-061A5-00

(replaces part #
90201-05036-00)

WASHER, PLATE$8.49$6.6210+ In-Stock
114WM-83513-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
1290387-050T5-00COLLAR$8.49$7.64Usually ships in 7-10 business days
135C7-83559-20-00COVER, METER$482.99$413.77Usually ships in 7-10 business days
145C7-28347-00-00MOLE 3$17.99$14.75Usually ships in 7-10 business days
155C7-28345-00-00MOLE 1$16.49$13.52Usually ships in 7-10 business days
1690149-06264-00SCREW$8.49$7.645 In-Stock
174U5-2176E-00-00PLATE$8.49$6.626 In-Stock
