CAMSHAFT CHAIN

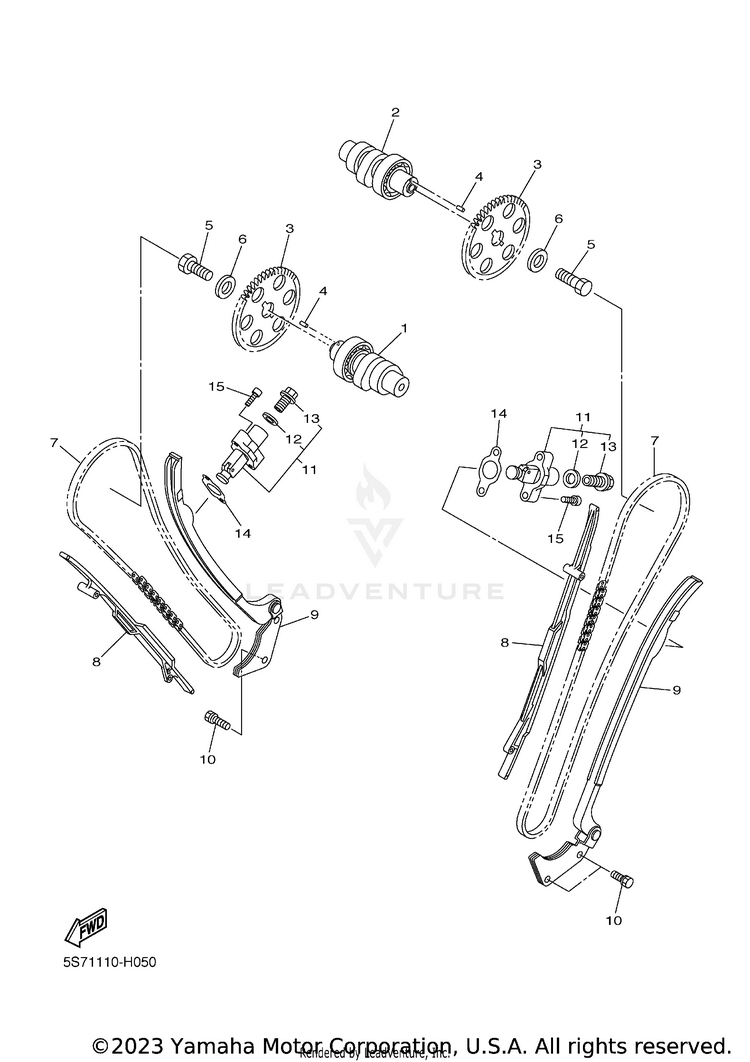

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-12170-10-00CAMSHAFT ASSY 1$152.99$119.33Usually ships in 7-10 business days
25S7-12180-10-00CAMSHAFT ASSY 2$152.99$119.33Usually ships in 7-10 business days
35S7-12176-00-00SPROCKET, CAM CHAIN$42.99$35.25Usually ships in 7-10 business days
493604-12037-00PIN, DOWEL$9.49$7.405 In-Stock
590101-10016-00BOLT$4.45$3.832 In-Stock
690201-10774-00

(replaces part #
90201-10591-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
794591-59132-00CHAIN$36.99$30.33Usually ships in 7-10 business days
85S7-12231-00-00GUIDE, STOPPER 1$26.99$22.13Usually ships in 7-10 business days
93D8-12241-01-00

(replaces part #
3D8-12241-00-00)

GUIDE, STOPPER 2$81.99$63.95Usually ships in 7-10 business days
1090119-06173-00BOLT, WITH WASHER$1.80$1.62Usually ships in 7-10 business days
1131G-12210-01-00TENSIONER ASSY, CAM CHAIN$187.99$146.632 In-Stock
1231G-12214-00-00GASKET$15.49$12.083 In-Stock
1331G-12222-00-00PLUG$26.99$21.051 In-Stock
143GD-12213-00-00GASKET, TENSIONER CASE$7.49$5.848 In-Stock
1591314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
