STARTING MOTOR

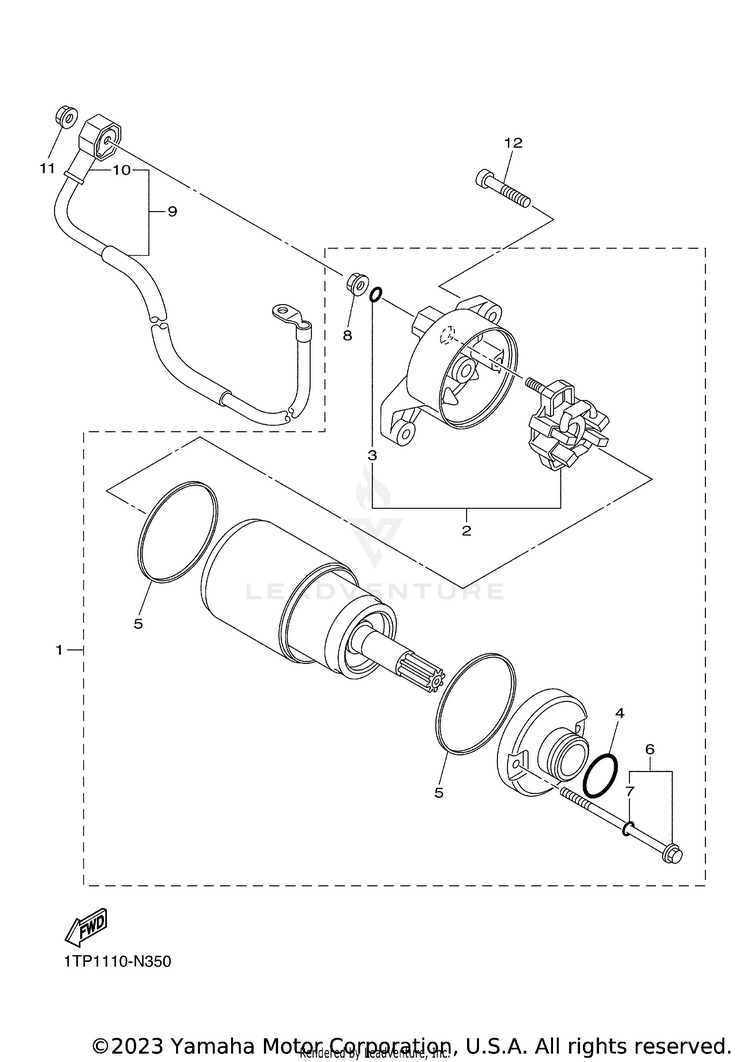

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-81890-01-00

(replaces part #
1TP-81890-00-00)

MOTOR ASSY$430.99$336.17Usually ships in 7-10 business days
24B5-81840-00-00BRUSH HOLDER ASSY$107.99$84.23Usually ships in 7-10 business days
33TB-81847-00-00O-RING$2.49$2.14Not Shipping
493210-24235-00

(replaces part #
1FK-81847-00-00)

O-RING$8.49$7.078 In-Stock
535C-81844-00-00GASKET$53.99$42.11Usually ships in 7-10 business days
628P-81826-00-00BOLT$15.99$13.11Usually ships in 7-10 business days
73TB-81847-00-00O-RING$2.49$2.14Not Shipping
84XV-8182A-00-00NUT$8.49$6.626 In-Stock
91TP-81815-00-00CORD, STARTER MOTOR$63.99$49.91Usually ships in 7-10 business days
104B5-81871-00-00CAP$11.49$9.42Usually ships in 7-10 business days
114XV-8182A-00-00NUT$8.49$6.626 In-Stock
1291314-06030-00BOLT, HEXAGON SOCKET HEAD$9.49$8.547 In-Stock
