2015 Yamaha Viking 700 FI 4x4 Front Brake Caliper OEM Parts Diagram

Submodel VIKING - YXM700DFG - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

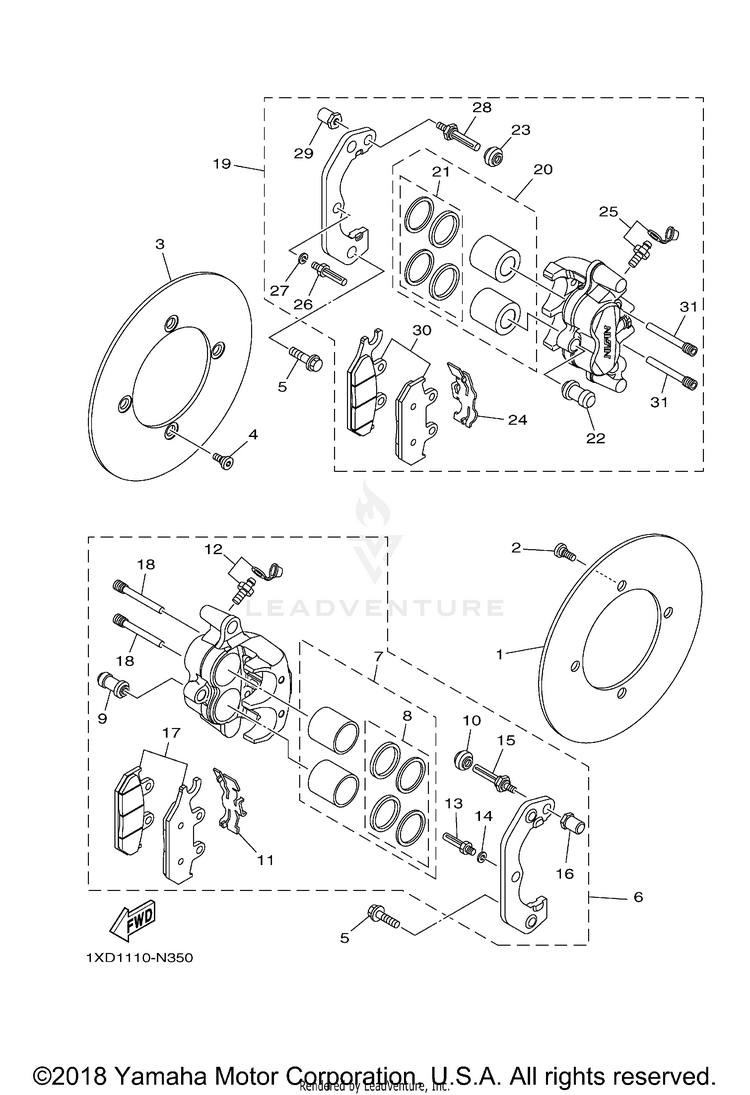

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-F582T-00-00DISC, BRAKE (LEFT)$58.99$46.017 In-Stock
290109-08087-00

(replaces part #
90109-08082-00)

BOLT$3.15$2.7110+ In-Stock
31XD-F582T-00-00DISC, BRAKE (LEFT)$58.99$46.017 In-Stock
490109-08087-00

(replaces part #
90109-08082-00)

BOLT$3.15$2.7110+ In-Stock
590105-10265-00BOLT, FLANGE$6.49$5.0610+ In-Stock
61XD-2580T-00-00CALIPER ASSY (LEFT)$462.99$382.53Usually ships in 7-10 business days
71XD-25802-00-00PISTON ASSY, CALIPER$48.99$40.17Usually ships in 7-10 business days
81XD-25803-00-00CALIPER SEAL KIT$46.99$38.53Usually ships in 7-10 business days
91UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
103JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
111XD-25919-00-00SUPPORT, PAD$14.49$11.88Usually ships in 7-10 business days
1236Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
131UY-25926-51-00BOLT$4.85$4.179 In-Stock
141UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
153JD-25926-00-00BOLT$8.49$6.628 In-Stock
163JD-25961-00-00NUT$9.49$7.40Not Shipping
171XD-25805-00-00BRAKE PAD KIT$49.99$42.095 In-Stock
AFTERMARKET ALTERNATIVE
$40.02$38.027 In-Stock
183TB-25933-00-00WASHER, PAD PIN$21.99$17.154 In-Stock
191XD-2580U-00-00CALIPER ASSY (RIGHT)$462.99$382.53Usually ships in 7-10 business days
201XD-25802-00-00PISTON ASSY, CALIPER$48.99$40.17Usually ships in 7-10 business days
211XD-25803-00-00CALIPER SEAL KIT$46.99$38.53Usually ships in 7-10 business days
221UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
233JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
241XD-25919-00-00SUPPORT, PAD$14.49$11.88Usually ships in 7-10 business days
2536Y-W0048-00-00

(replaces part #
1UY-W0048-50-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
261UY-25926-51-00BOLT$4.85$4.179 In-Stock
271UY-25938-51-00WASHER, SPRING$9.49$7.402 In-Stock
283JD-25926-00-00BOLT$8.49$6.628 In-Stock
293JD-25961-00-00NUT$9.49$7.40Not Shipping
301XD-25805-10-00BRAKE PAD KIT$48.99$41.534 In-Stock
AFTERMARKET ALTERNATIVE
$40.02$38.029 In-Stock
313TB-25933-00-00WASHER, PAD PIN$21.99$17.154 In-Stock
