2015 Yamaha Viking 700 FI 4x4 Front Wheel 2 OEM Parts Diagram

Submodel VIKING - YXM700DFG - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

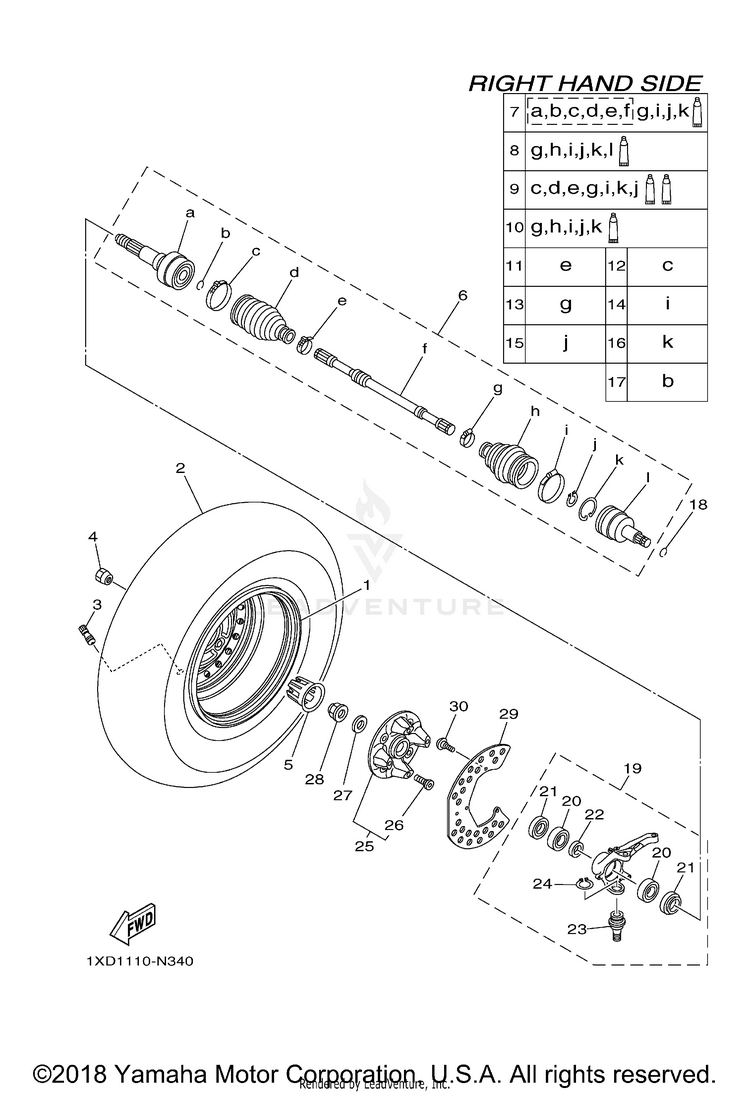

FRONT WHEEL 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-F5180-00-00WHEEL COMP.$152.99$119.333 In-Stock
294108-12818-00TIRE (25X8.00-12 MU09 2PR TL) | MAXXIS$322.99$251.93Usually ships in 7-10 business days
393900-00812-00

(replaces part #
93900-00813-00)

VALVE, RIM (TR413) | MAXXIS$9.49$7.405 In-Stock
490179-12262-00NUT-$4.0910+ In-Stock
51XD-F512A-00-00CAP, WHEEL$2.90$2.496 In-Stock
61XD-F518F-01-00

(replaces part #
1XD-F518F-00-00)

DRIVE SHAFT ASSY$254.99$198.893 In-Stock
71XD-F530T-10-00BALL JOINT SET$258.99$202.01Usually ships in 7-10 business days
81XD-F530V-10-00DOUBLE OFF SET JOINT$150.99$119.69Usually ships in 7-10 business days
91XD-F530X-10-00BOOT SET (BALL JOINT)$177.99$138.83Usually ships in 7-10 business days
101XD-F530Y-10-00BOOT SET(DOUBLE OFFSET JOINT$164.99$128.69Usually ships in 7-10 business days
111XD-F511H-00-00BOOT BAND(DOUBLE OFFSET JOIN$18.49$15.16Usually ships in 7-10 business days
121XD-F511G-00-00BOOT BAND (BALL JOINT)$26.99$22.13Usually ships in 7-10 business days
135UG-F510U-00-00BOOT BAND (SMALL)$14.49$11.883 In-Stock
141XD-F512G-10-00BOOT BAND (SMALL)$17.99$14.75Usually ships in 7-10 business days
153B4-2512J-00-00SNAP RING$9.49$7.407 In-Stock
163B4-25182-00-00CIRCLIP$7.49$5.846 In-Stock
175UG-F512H-00-00CIRCLIP$9.49$7.404 In-Stock
1893450-22119-00CIRCLIP$9.49$7.407 In-Stock
191XD-F3502-00-00STEERING KNUCKLE ASSY (RIGHT)$260.99$203.57Usually ships in 7-10 business days
2093306-20725-00BEARING$42.99$33.5310+ In-Stock
2193106-50002-00OIL SEAL$17.49$13.6410+ In-Stock
2290387-35007-00COLLAR$16.49$12.865 In-Stock
231XD-23579-00-00BALL JOINT 2$83.99$65.519 In-Stock
AFTERMARKET ALTERNATIVE
$55.33$52.567 In-Stock
2493410-32075-00

(replaces part #
99009-32400-00)

CIRCLIP$10.49$8.1810+ In-Stock
251XD-25111-01-00

(replaces part #
1XD-25111-00-00)

HUB, FRONT$272.99$212.93Usually ships in 7-10 business days
2690114-12002-00BOLT, SERRATION$3.60$3.1010+ In-Stock
2790201-25023-00WASHER, PLATE$11.49$8.968 In-Stock
2890179-24006-00NUT$15.49$12.0810+ In-Stock
291XD-F514A-01-00RING, WHEEL 1$8.49$7.64Usually ships in 7-10 business days
3092012-06012-00BOLT, BUTTON HEAD$4.70$4.0410+ In-Stock
