2015 Yamaha Viking 700 FI 4x4 Pedal Wire OEM Parts Diagram

Submodel VIKING - YXM700DFG - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

PEDAL WIRE

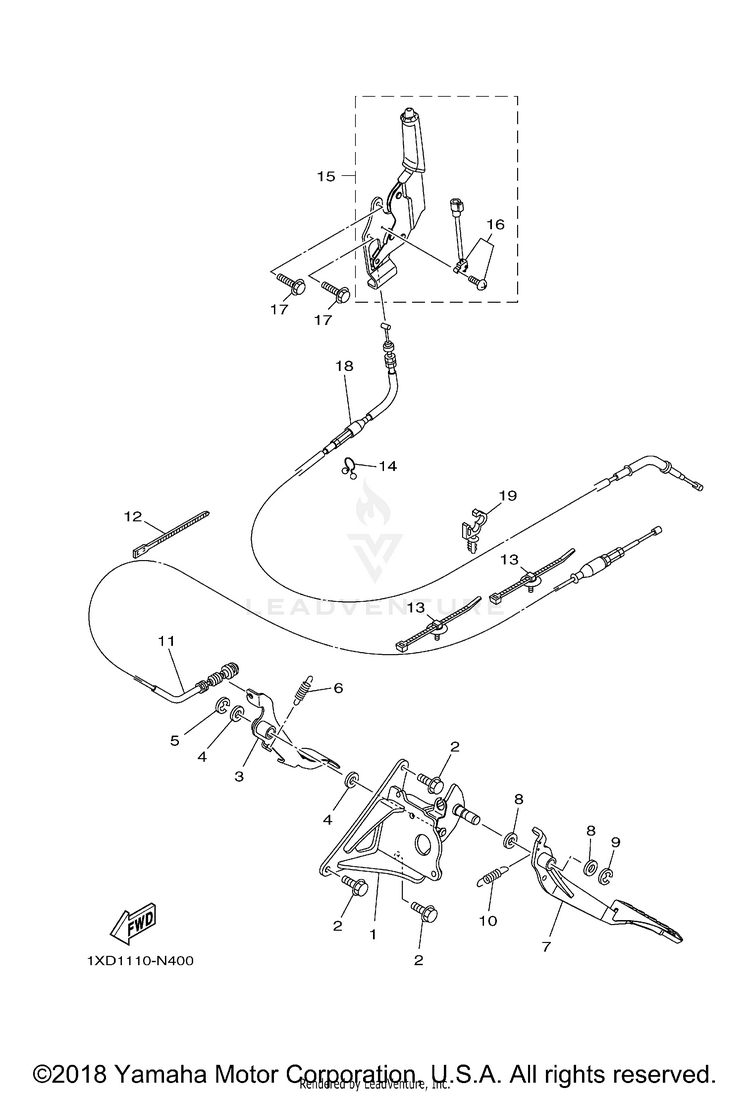

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-F2548-00-KT

(replaces part #
1XD-F2548-00-00)

BRACKET,PEDL SUPRT$79.99$62.39Usually ships in 7-10 business days
295817-08016-00

(replaces part #
95812-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
31XD-F7801-00-00ACCEL PEDAL ASSY$17.49$14.34Usually ships in 7-10 business days
490201-15018-00WASHER, PLATE$8.49$6.629 In-Stock
593430-12008-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
690506-20192-00SPRING, TENSION$8.49$6.629 In-Stock
71XD-F7200-00-00PEDAL, BRAKE$33.99$27.87Usually ships in 7-10 business days
890201-15018-00WASHER, PLATE$8.49$6.629 In-Stock
993430-12008-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
1090506-20192-00SPRING, TENSION$8.49$6.629 In-Stock
111XD-26311-10-00CABLE, THROTTLE 1$65.99$51.47Usually ships in 7-10 business days
1290464-40825-00CLAMP$3.05$2.74Usually ships in 7-10 business days
135B4-F1338-00-00CLAMP$3.60$3.1010+ In-Stock
1490464-20804-00CLAMP$3.40$3.06Usually ships in 7-10 business days
15BDW-F5690-00-00

(replaces part #
1XD-F5690-00-00)

PARKING LEVER ASSY$301.99$235.55Usually ships in 7-10 business days
165UG-H251S-00-00SWITCH COMP.$48.99$40.17Usually ships in 7-10 business days
1795817-06012-00

(replaces part #
95812-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
181XD-26341-02-00

(replaces part #
1XD-26341-00-00)

WIRE, BRAKE 1$65.99$51.472 In-Stock
1990464-12830-00CLAMP | d: 12mm$1.60$1.3810+ In-Stock
