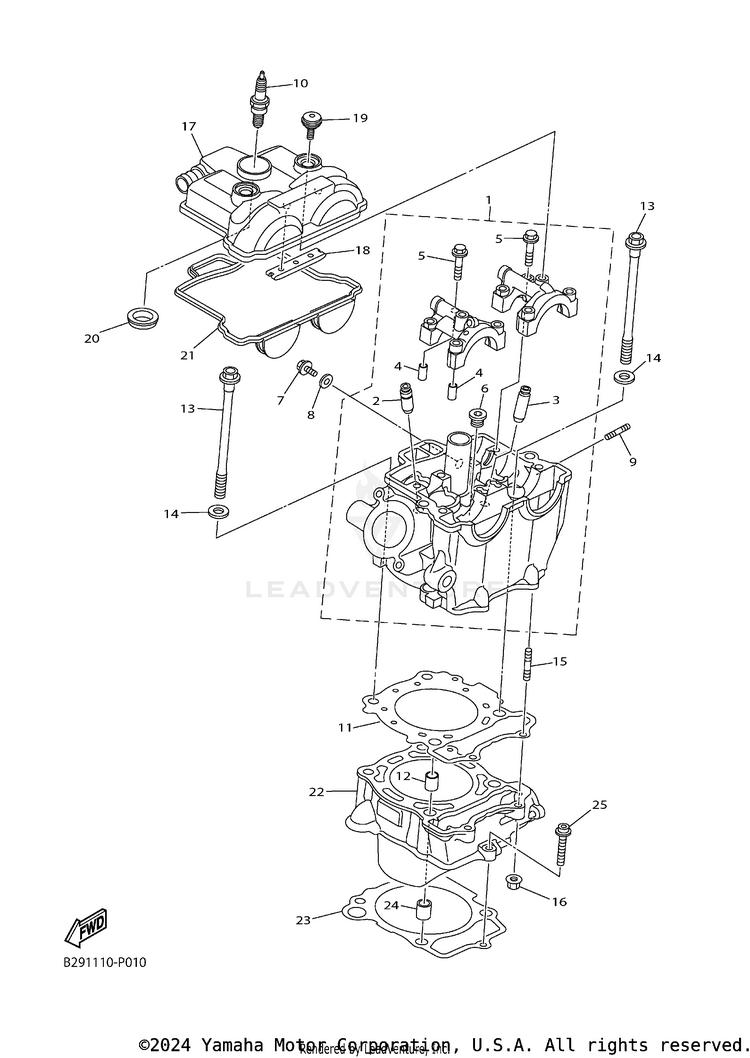

2015 Yamaha WR250F Cylinder OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1SM-11101-09-00	CYLINDER HEAD ASSY	$857.99	$767.51	1 In-Stock
2	5TA-11134-10-00	GUIDE, VALVE 2	$59.99	$46.79	10+ In-Stock
3	3D7-11133-10-00	GUIDE, VALVE 1	$69.99	$54.59	6 In-Stock
4	91808-16023-00	PIN, DOWEL	$7.99	$6.23	10+ In-Stock
5	90105-06027-00	BOLT, FLANGE	$8.49	$6.62	10+ In-Stock
6	90340-12007-00	PLUG, STRAIGHT SCREW	$9.49	$7.40	5 In-Stock
7	95022-06010-00	BOLT, FLANGE	$6.49	$5.06	6 In-Stock
8	90430-06014-00	GASKET \| INCL. WITH TOP END GASKET KIT	$8.99	$7.01	10+ In-Stock
9	95612-08620-00	BOLT, STUD	$8.49	$6.62	9 In-Stock
10	LMA-R8G00-00-00 (replaces part # 94701-00434-00)	LMAR8 NGK SPLUG 10PK	$13.49	$11.52	10+ In-Stock
11	1SM-11181-00-00	GASKET, CYLINDER HEAD 1 \| INCL. WITH TOP END GASKET KIT	$45.99	$35.87	10+ In-Stock
12	93612-16254-00	PIN, DOWEL	$6.49	$5.06	10+ In-Stock
13	90105-09004-00	BOLT, FLANGE	$15.49	$12.08	10+ In-Stock
14	90201-096J9-00	WASHER, PLATE	$3.65	$3.14	10+ In-Stock
15	90116-06037-00	BOLT, STUD	$4.25	$3.66	Not Shipping
16	95702-06500-00	NUT, WITH WASHER	$2.60	$2.24	10+ In-Stock
17	1SM-11190-49-00 (replaces part # 1SM-11190-09-00)	COVER, CYLINDER HEAD 1	$197.99	$156.51	Usually ships in 7-10 business days
18	5BE-12241-01-00 (replaces part # 5BE-12241-00-00)	GUIDE, STOPPER 2	$32.99	$25.73	10+ In-Stock
19	5UM-1119E-00-00	BOLT, COVER HEAD \| INCL. WITH TOP END GASKET KIT	$15.49	$12.08	10+ In-Stock
20	1SM-11194-00-00	GASKET, HEAD COVER 2 \| INCL. WITH TOP END GASKET KIT	$17.99	$14.03	10+ In-Stock
21	1SM-11193-00-00	GASKET, HEAD COVER 1 \| INCL. WITH TOP END GASKET KIT	$33.99	$26.51	10+ In-Stock
22	1SM-11311-00-00	CYLINDER 1	$668.99	$521.81	2 In-Stock
23	1SM-11351-00-00	GASKET, CYLINDER \| INCL. WITH TOP END GASKET KIT	$18.99	$14.81	10+ In-Stock
24	93612-16254-00	PIN, DOWEL	$6.49	$5.06	10+ In-Stock
25	90110-06380-00	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	4 In-Stock
