2015 Yamaha WR250F Exhaust OEM Parts Diagram

Submodel WR250F - WR250FF - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

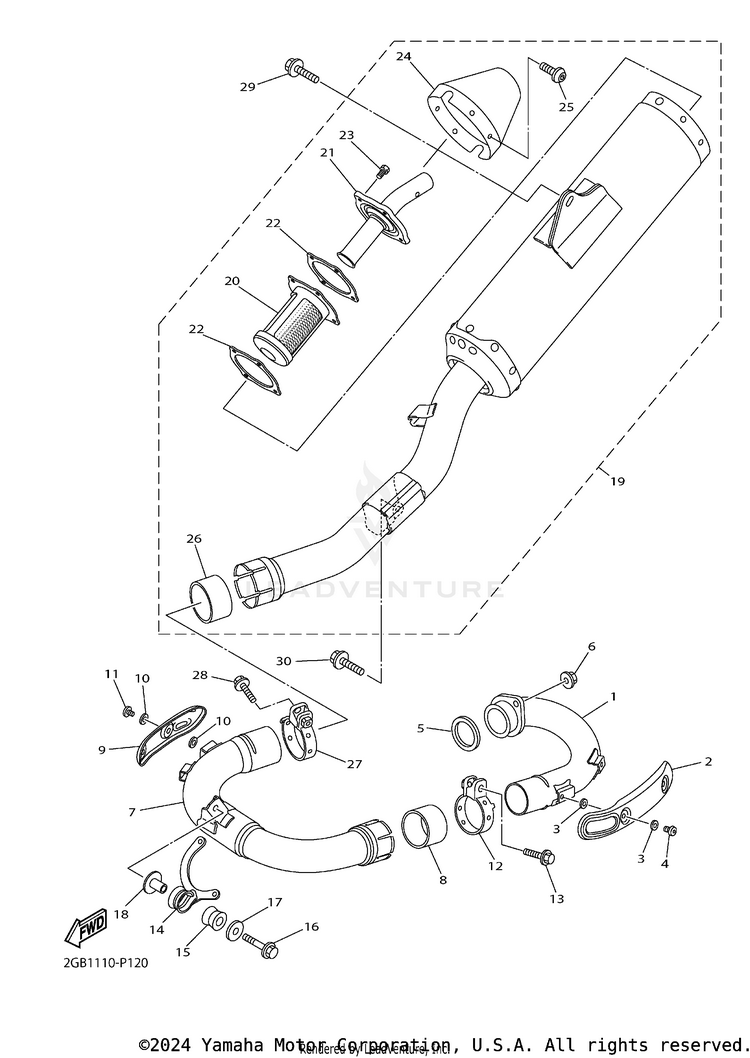

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SM-14611-00-00PIPE, EXHAUST 1$214.99$167.69Usually ships in 7-10 business days
21SL-14628-00-00PROTECTOR, EXHAUST PIPE$43.99$34.318 In-Stock
390201-05017-00WASHER, PLATE$9.49$7.4010+ In-Stock
498980-06008-00SCREW, BIND-$1.2210+ In-Stock
55NL-14613-00-00GASKET, EXHAUST PIPE | INCL. WITH TOP END GASKET KIT$15.49$12.0810+ In-Stock
695702-08500-00NUT, WITH WASHER$0.40$0.40Not Shipping
71SM-14621-00-00PIPE, EXHAUST 2$244.99$194.19Usually ships in 7-10 business days
85PX-14755-00-00GASKET, SILENCER$32.99$25.736 In-Stock
91SL-1463B-00-00PROTECTOR, EXHAUST PIPE 2$45.99$35.874 In-Stock
1090201-05017-00WASHER, PLATE$9.49$7.4010+ In-Stock
1198980-06008-00SCREW, BIND-$1.2210+ In-Stock
121SM-14788-00-00BAND, SILENCER$22.99$17.933 In-Stock
1395024-08040-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
141SM-14639-00-00STAY, EXHAUST PIPE 1$35.99$28.076 In-Stock
155VY-14747-00-00DAMPER, MUFFLER$15.49$12.0810+ In-Stock
1690105-08137-00BOLT, FLANGE$6.49$5.0610+ In-Stock
1790201-08061-00WASHER, PLATE$9.49$7.404 In-Stock
1890387-08081-00COLLAR$9.49$7.408 In-Stock
192GB-14701-00-00MUFFLER COMP.$1,046.99$876.51Usually ships in 7-10 business days
205TJ-14780-00-00SPARK ARRESTER ASSY$104.99$81.89Usually ships in 7-10 business days
215TJ-14784-00-00PIPE, TAIL$157.99$123.233 In-Stock
225TJ-14623-00-00GASKET, EXHAUST PIPE$14.49$11.306 In-Stock
2390110-05041-00BOLT, HEXAGON SOCKET HEAD$4.05$3.64Usually ships in 7-10 business days
245TJ-14799-00-00CAP$131.99$102.95Usually ships in 7-10 business days
2592012-05008-00BOLT, BUTTON HEAD$3.05$2.628 In-Stock
261SL-14714-00-00GASKET, MUFFLER$32.99$25.737 In-Stock
271SL-14715-00-00BAND, MUFFLER$33.99$26.516 In-Stock
2895024-08040-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
2990105-08230-00BOLT, FLANGE$4.65$4.0010+ In-Stock
3090119-08133-00BOLT, WITH WASHER$4.80$4.134 In-Stock
