2015 Yamaha WR250F Water Pump OEM Parts Diagram

Submodel WR250F - WR250FF - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

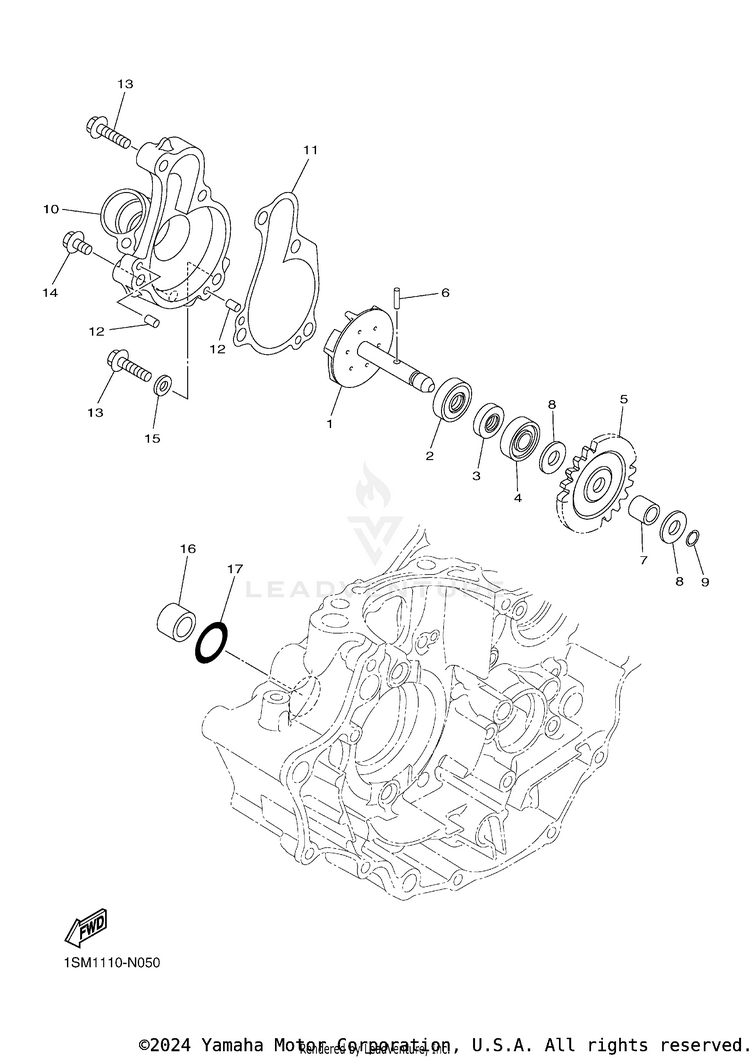

WATER PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SM-12450-01-00IMPELLER SHAFT ASSY$62.99$49.134 In-Stock
293102-08004-00OIL SEAL$10.49$8.1810+ In-Stock
393102-08307-00OIL SEAL$8.49$6.6210+ In-Stock
493300-60814-00

(replaces part #
93300-60801-00)

BEARING | KOYO$23.99$18.7110+ In-Stock
51SM-12453-10-00

(replaces part #
1SM-12453-00-00)

GEAR$102.99$80.333 In-Stock
693603-12007-00PIN, DOWEL$2.75$2.362 In-Stock
790387-08032-00COLLAR$9.49$7.404 In-Stock
890201-08512-00WASHER, PLATE$9.49$7.4010+ In-Stock
993440-07182-00CIRCLIP$4.10$3.5310+ In-Stock
1033D-12422-00-00COVER, HOUSING$109.99$85.797 In-Stock
1133D-12427-00-00GASKET, HOUSING COVER 1$8.49$6.6210+ In-Stock
1293604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
1395022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
1495022-06010-00BOLT, FLANGE$6.49$5.067 In-Stock
1590430-06014-00GASKET | INCL. IN BOTTOM END GASKET KIT$8.99$7.0110+ In-Stock
165NL-12564-00-00PIPE, WATER$7.49$5.8410+ In-Stock
1793210-16772-00

(replaces part #
93210-16716-00)

O-RING$1.45$1.3110+ In-Stock
