2016 Yamaha Bolt C-Spec Electrical 1 OEM Parts Diagram

Submodel BOLT C SPEC - XVS95CRGC - 2016

Shop Aftermarket Parts

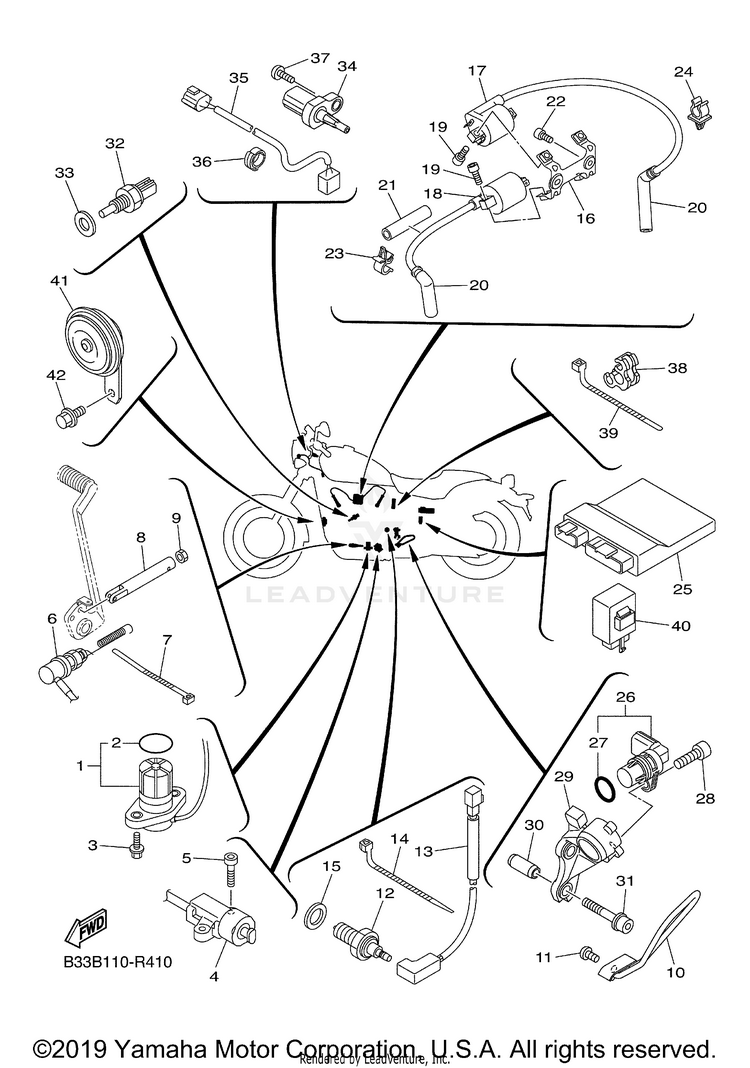

ELECTRICAL 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-85720-00-00OIL LEVEL GAUGE ASSY$120.99$94.37Usually ships in 7-10 business days
25VY-8A8E0-00-00O-RING$15.49$12.083 In-Stock
395022-06016-00BOLT, FLANGE$3.90$3.3510+ In-Stock
45XT-82566-01-00

(replaces part #
5XT-82566-00-00)

SWITCH, SIDE STAND$61.99$48.351 In-Stock
591317-05016-00BOLT$3.55$3.0510+ In-Stock
6BL3-82530-00-00

(replaces part #
B33-82530-00-00)

STOP SWITCH ASSY$52.99$41.33Usually ships in 7-10 business days
71UA-82591-00-00BAND$5.49$4.2810+ In-Stock
8B33-27222-00-00JOINT$41.99$34.43Usually ships in 7-10 business days
995337-08600-00

(replaces part #
95307-08600-00)

NUT(6TA)$9.49$7.4010+ In-Stock
10B33-27267-00-00GUIDE, WIRE$20.99$17.21Usually ships in 7-10 business days
1192017-08012-00

(replaces part #
90157-08117-00)

BOLT, BUTTON HEAD$9.49$7.404 In-Stock
123GB-82540-01-00NEUTRAL SWITCH ASSY$63.99$49.9110+ In-Stock
135S7-82509-10-00WIRE, SUB LEAD$7.99$7.19Usually ships in 7-10 business days
1490464-13077-00CLAMP$9.49$7.4010+ In-Stock
1590430-10148-00GASKET$5.99$4.6710+ In-Stock
163D8-21359-01-00BRACKET, COIL$31.99$26.23Usually ships in 7-10 business days
171TP-82310-00-00IGNITION COIL ASSY$38.99$31.97Usually ships in 7-10 business days
181S4-82310-04-00

(replaces part #
1S4-82310-00-00)

IGNITION COIL ASSY$50.99$39.77Usually ships in 7-10 business days
1991314-06020-00

(replaces part #
90110-06175-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
205S7-82370-00-00PLUG CAP ASSY$78.99$61.61Usually ships in 7-10 business days
2190445-14020-00HOSE (L65)$3.90$3.51Usually ships in 7-10 business days
2291312-06008-00BOLT, HEXAGON SOCKET HEAD$0.40$0.36Usually ships in 7-10 business days
2390464-09129-00CLAMP$2.30$2.07Usually ships in 7-10 business days
2490464-09008-00CLAMP$3.30$2.97Usually ships in 7-10 business days
251TP-8591A-00-00ENGINE CONTROL UNIT ASSY$897.99$749.59Usually ships in 7-10 business days
261TP-83755-00-00SENSOR, SPEED$84.99$66.293 In-Stock
274D9-81168-00-00O-RING$7.49$5.845 In-Stock
2891312-06014-00

(replaces part #
90110-06168-00)

BOLT$5.49$4.2810+ In-Stock
291TP-81948-00-00BRACKET$49.99$40.99Usually ships in 7-10 business days
3099530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
3190110-06300-00BOLT, HEXAGON SOCKET HEAD$3.40$3.06Usually ships in 7-10 business days
3252B-H3591-00-00

(replaces part #
4P9-83591-00-00)

THERMO UNIT$37.99$29.6310+ In-Stock
3390201-10128-00WASHER, PLATE$4.05$3.5010+ In-Stock
345YU-85886-00-00SENSOR, AIR TEMPERATURE$37.99$29.6310+ In-Stock
35B33-82509-00-00WIRE, SUB LEAD$15.49$12.70Usually ships in 7-10 business days
3690464-26001-00CLAMP$2.40$2.16Usually ships in 7-10 business days
3798517-05012-00

(replaces part #
98502-05012-00)

SCREW, PAN HEAD$5.49$4.285 In-Stock
381TP-81443-00-00CLAMP, LEAD 1$4.85$4.36Usually ships in 7-10 business days
3990464-20258-00CLAMP$5.99$5.39Usually ships in 7-10 business days
405C4-83350-02-00

(replaces part #
5C4-83350-00-00)

FLASHER RELAY ASSY$71.99$56.15Usually ships in 7-10 business days
412S3-83371-00-00HORN$65.99$51.47Usually ships in 7-10 business days
4290105-082A5-00BOLT, WASHER BASED$3.80$3.42Usually ships in 7-10 business days
