REAR ARM SUSPENSION

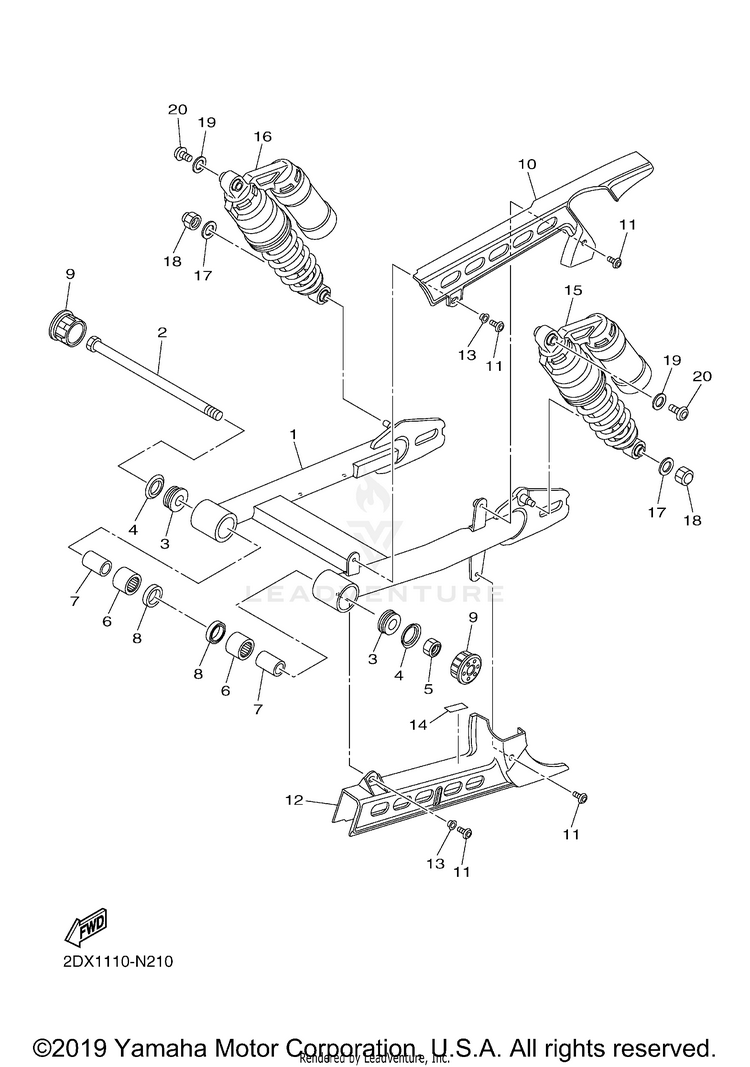

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-22110-00-00REAR ARM COMP.$690.99$545.58Usually ships in 7-10 business days
21TP-22141-00-00SHAFT, PIVOT$197.99$156.75Usually ships in 7-10 business days
390387-16030-00COLLAR$16.99$13.93Usually ships in 7-10 business days
493108-44001-00OIL SEAL$8.49$7.64Usually ships in 7-10 business days
595617-16100-00

(replaces part #
95602-16100-00)

NUT, SELF-LOCKING$29.99$24.59Usually ships in 7-10 business days
693317-52897-00BEARING$63.99$49.91Usually ships in 7-10 business days
790387-16032-00COLLAR$29.99$24.59Usually ships in 7-10 business days
893109-28001-00OIL SEAL$9.49$8.54Usually ships in 7-10 business days
91TP-2219X-00-00COVER$5.49$4.94Usually ships in 7-10 business days
101TP-22311-00-00CASE, CHAIN$32.99$27.05Usually ships in 7-10 business days
1190111-06127-00BOLT, HEX. SOCKET BUTTON$9.49$7.4010+ In-Stock
121TP-22312-00-00CASE, CHAIN 2$32.99$27.05Usually ships in 7-10 business days
1390387-06048-00COLLAR$9.49$7.402 In-Stock
141TP-21668-00-00LABEL, TIRE$2.50$2.25Usually ships in 7-10 business days
15B33-22210-01-00

(replaces part #
B33-22210-00-00)

SHOCK ABSORBER ASSY,$691.99$603.09Usually ships in 7-10 business days
16B33-22220-01-00

(replaces part #
B33-22220-00-00)

SHOCK ABSORBER ASSY,$671.99$562.32Usually ships in 7-10 business days
1790201-10074-00WASHER, PLATE$4.05$3.64Usually ships in 7-10 business days
1890176-10073-00NUT, CROWN$9.49$8.5410+ In-Stock
1990201-08119-00WASHER, PLATE$3.35$3.02Usually ships in 7-10 business days
2090149-08054-00SCREW$4.40$3.96Usually ships in 7-10 business days
