CYLINDER

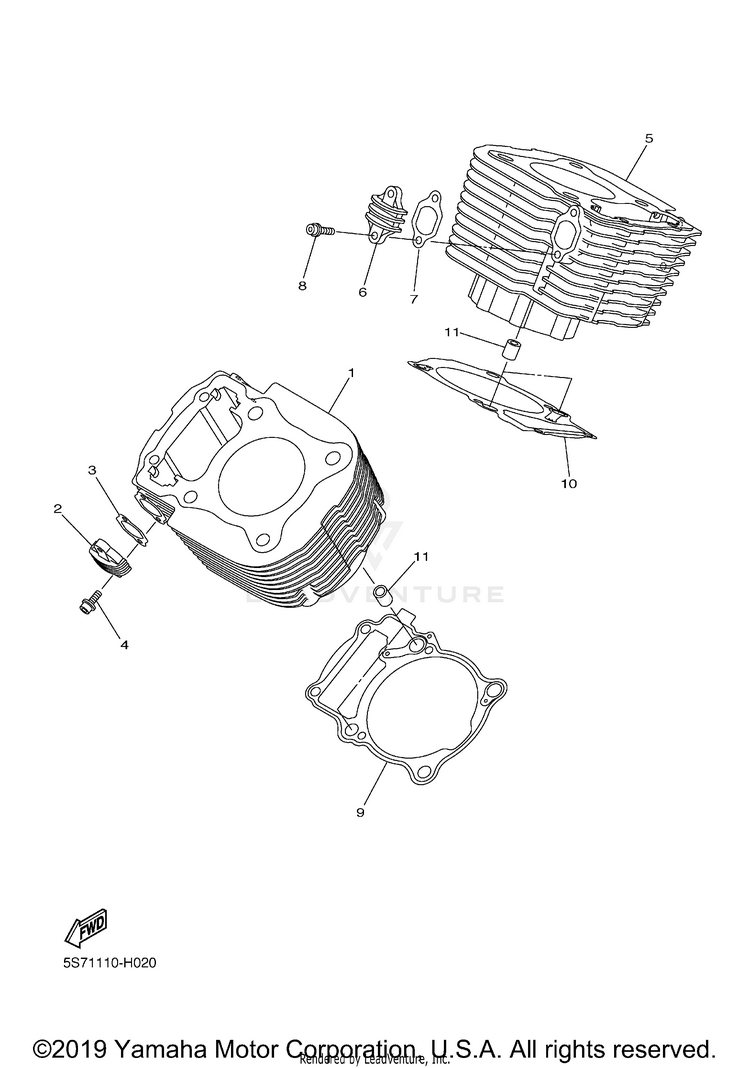

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-11311-00-00CYLINDER 1$649.99$544.25Usually ships in 7-10 business days
25S7-12215-00-00CAP, TENSIONER CASE$28.99$23.77Usually ships in 7-10 business days
35S7-12214-00-00GASKET$2.65$2.38Usually ships in 7-10 business days
490109-06015-00BOLT$5.49$4.2810+ In-Stock
51TP-11311-00-00CYLINDER 1$649.99$544.25Usually ships in 7-10 business days
65S7-12215-00-00CAP, TENSIONER CASE$28.99$23.77Usually ships in 7-10 business days
75S7-12214-00-00GASKET$2.65$2.38Usually ships in 7-10 business days
890109-06015-00BOLT$5.49$4.2810+ In-Stock
95S7-11351-00-00GASKET, CYLINDER$31.99$26.23Usually ships in 7-10 business days
105S7-11352-00-00GASKET, CYLINDER 2$44.99$36.89Usually ships in 7-10 business days
1191808-16023-00

(replaces part #
99530-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
