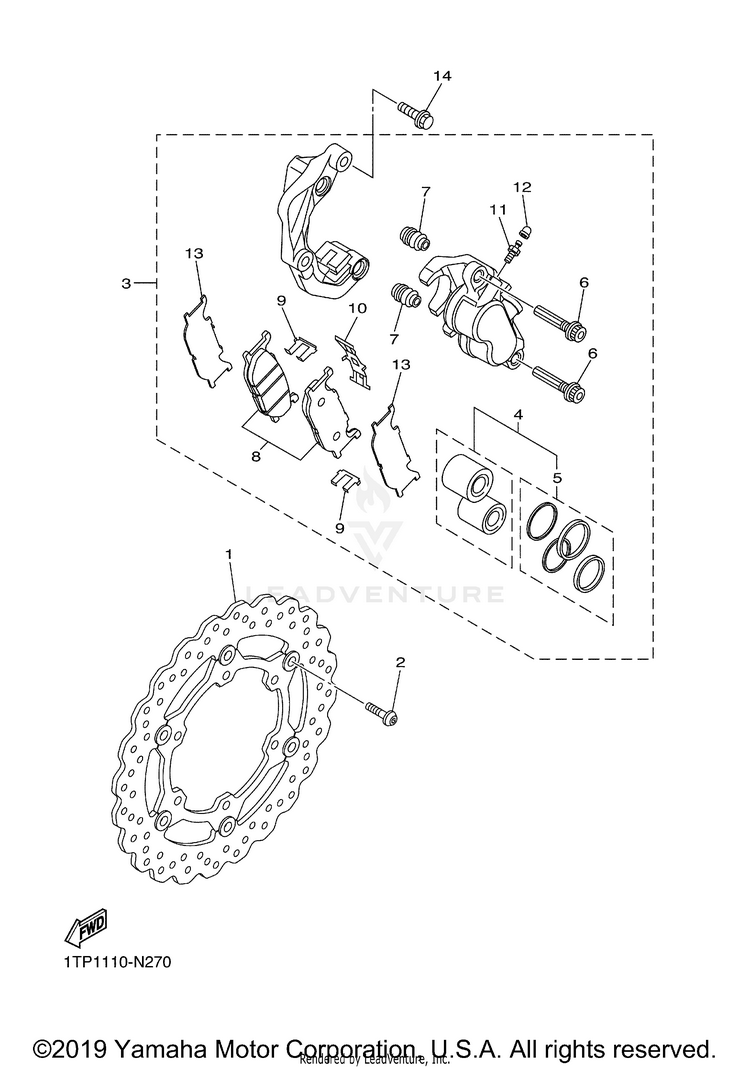

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-2581T-00-00DISC BRAKE ASSY$247.99$193.43Usually ships in 7-10 business days
290111-08057-00

(replaces part #
90109-083G4-00)

BOLT$2.50$2.1510+ In-Stock
327D-2580T-00-00CALIPER ASSY (LEFT)$440.99$364.84Usually ships in 7-10 business days
43YX-W0057-00-00PISTON ASSY, CALIPER$66.99$52.25Usually ships in 7-10 business days
53JB-25803-00-00

(replaces part #
3JB-W0047-00-00)

CALIPER SEAL KIT$49.99$40.99Usually ships in 7-10 business days
65JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
74TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
85S7-25805-00-00

(replaces part #
5S7-W0045-00-00)

BRAKE PAD KIT$80.99$63.17Usually ships in 7-10 business days
94BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
103YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
1147X-25824-01-00SCREW, BLEED$15.49$12.70Usually ships in 7-10 business days
121D7-25825-00-00CAP$8.49$6.622 In-Stock
134DN-25827-00-00SHIM, CALIPER$28.99$23.77Usually ships in 7-10 business days
1490105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
