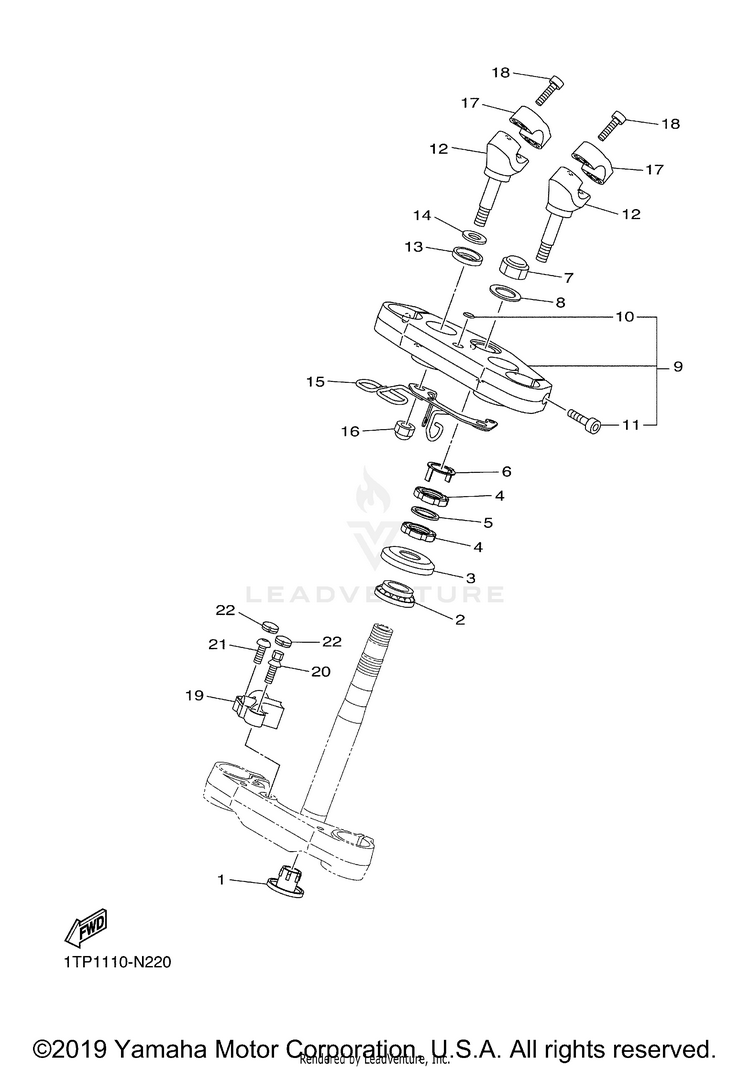

2016 Yamaha Bolt Steering OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4KM-23123-01-00	COVER, LOWER 1	$15.49	$12.70	Usually ships in 7-10 business days
2	93399-99931-00	BEARING	$62.99	$49.13	Usually ships in 7-10 business days
3	1W1-23416-00-00	COVER, BALL RACE 2	$32.99	$25.73	6 In-Stock
4	90179-25004-00	NUT	$26.99	$21.05	5 In-Stock
5	90202-26142-00	WASHER, PLATE	$10.49	$8.18	7 In-Stock
6	26H-23418-01-00	WASHER, SPECIAL	$15.49	$12.70	2 In-Stock
7	90176-22002-00	NUT, CROWN	$37.99	$31.15	Usually ships in 7-10 business days
8	90201-22018-00 (replaces part # 90201-220T0-00)	WASHER, PLATE	$6.49	$5.06	8 In-Stock
9	1TP-Y2343-00-00	CROWN, HANDLE	$266.99	$208.25	Usually ships in 7-10 business days
10	14B-2836B-00-00	TUNING FORK MARK	$11.99	$9.83	Usually ships in 7-10 business days
11	91314-08030-00	BOLT, HEXAGON SOCKET HEAD	$2.55	$2.19	9 In-Stock
12	1TP-23442-00-00	HOLDER, HANDLE LOWER	$122.99	$95.93	Usually ships in 7-10 business days
13	3DM-23445-00-00	DAMPER	$8.49	$6.62	1 In-Stock
14	90201-14220-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
15	1TP-23389-00-00	GUIDE, CABLE	$47.99	$39.35	Usually ships in 7-10 business days
16	90176-12052-00	NUT, CROWN	$13.49	$11.06	Usually ships in 7-10 business days
17	1TP-23441-00-00	HOLDER, HANDLE UPPER	$62.99	$49.13	Usually ships in 7-10 business days
18	91314-08025-00	BOLT, HEXAGON SOCKET HEAD	$9.49	$8.54	2 In-Stock
19	1TP-23408-00-00	STEERING LOCK ASSY	$139.99	$109.19	Usually ships in 7-10 business days
20	90109-08196-00 (replaces part # 90109-08195-00)	BOLT	$9.49	$7.40	10+ In-Stock
21	90149-08002-00 (replaces part # 90149-08055-00)	SCREW	$9.49	$8.54	Usually ships in 7-10 business days
22	1TP-23484-00-00	CAP, HANDLE LOCK	$5.49	$4.94	Usually ships in 7-10 business days
