2016 Yamaha TTR 50E Cylinder Head OEM Parts Diagram

Submodel TTR50E - TTR50EG - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

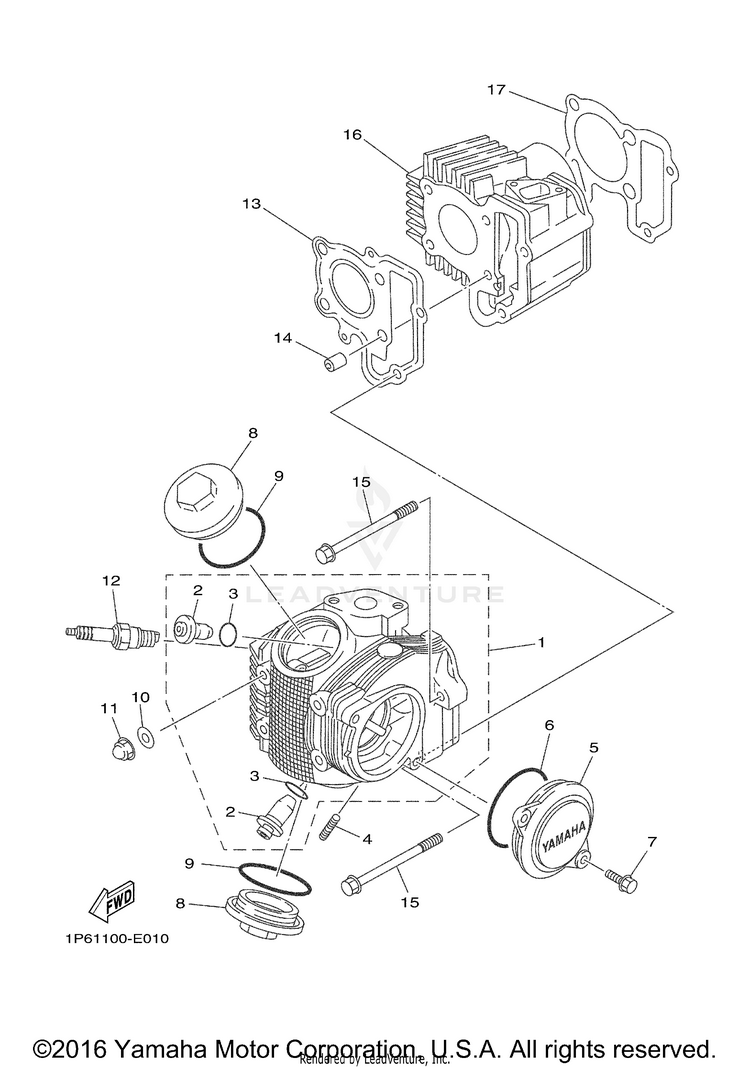

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11P6-W1102-01-00HEAD CYLINDER ASSY$504.99$409.15Usually ships in 7-10 business days
24GL-11134-10-00GUIDE, VALVE 2$167.99$131.03Usually ships in 7-10 business days
393210-09418-00

(replaces part #
93210-09802-00)

O-RING$6.49$5.846 In-Stock
41P6-14651-00-00BOLT$7.49$5.843 In-Stock
51P6-E1185-00-00COVER, CYLINDER HEAD SIDE 3$37.99$31.15Usually ships in 7-10 business days
693210-63556-00

(replaces part #
93210-628B6-00)

O-RING-$7.0610+ In-Stock
790105-06696-00

(replaces part #
95027-06016-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
822F-11186-10-00

(replaces part #
1P6-E1186-00-00)

COVER, CYLINDER HEAD SIDE 2$22.99$17.9310+ In-Stock
993210-44704-00

(replaces part #
93210-44889-00)

O-RING$8.49$7.3710+ In-Stock
1090201-080L7-00

(replaces part #
90201-088C3-00)

WASHER, PLATE$4.05$3.4810+ In-Stock
1190176-08026-00NUT, CROWN$16.49$12.8610+ In-Stock
12CR7-HSA00-00-00

(replaces part #
94701-00878-00)

PLUG, SPARK (NGK CR7HSA)$4.40$3.7810+ In-Stock
131P6-E1181-00-00GASKET, CYLINDER HEAD 1$28.99$22.6110+ In-Stock
1499530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
1595027-06085-00BOLT, FLANGE$10.49$8.1810+ In-Stock
161P6-E1311-10-00CYLINDER 1$269.99$210.5910+ In-Stock
171P6-E1351-00-00GASKET, CYLINDER$41.99$32.7510+ In-Stock
