2016 Yamaha TTR 50E Frame OEM Parts Diagram

Submodel TTR50E - TTR50EG - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

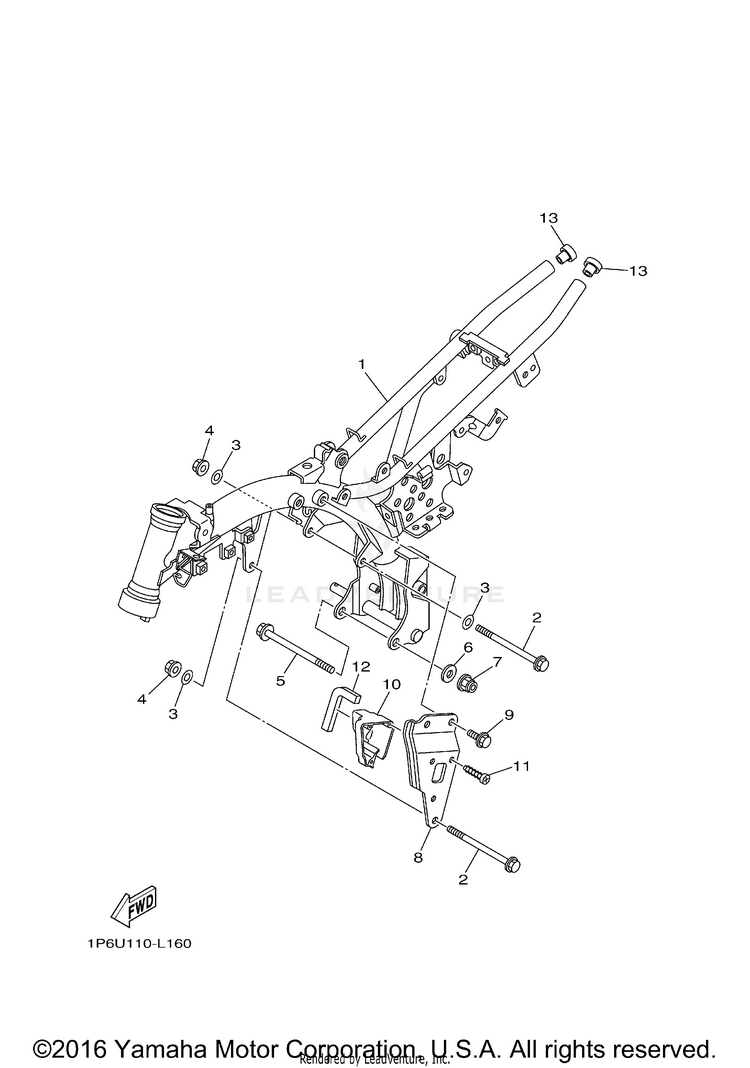

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11P6-F1110-40-00FRAME COMP.$348.99$289.77Usually ships in 7-10 business days
290105-08097-00BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
392907-08200-00WASHER$9.49$7.4010+ In-Stock
495602-08200-00NUT, SELF-LOCKING$3.20$2.7510+ In-Stock
590105-10123-00BOLT, FLANGE$5.99$5.39Usually ships in 7-10 business days
692907-10200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
795602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
81P6-F1387-10-00STAY, ENGINE 7$17.99$14.75Usually ships in 7-10 business days
995817-08016-00

(replaces part #
95812-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
101P6-F117F-10-00COVER$8.49$7.64Usually ships in 7-10 business days
1197707-50516-00SCREW, TAPPING$0.80$0.695 In-Stock
1290520-20807-00DAMPER, PLATE$8.49$7.64Usually ships in 7-10 business days
1390338-16802-00PLUG$3.55$3.0510+ In-Stock
