2016 Yamaha TTR 50E Intake OEM Parts Diagram

Submodel TTR50E - TTR50EG - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

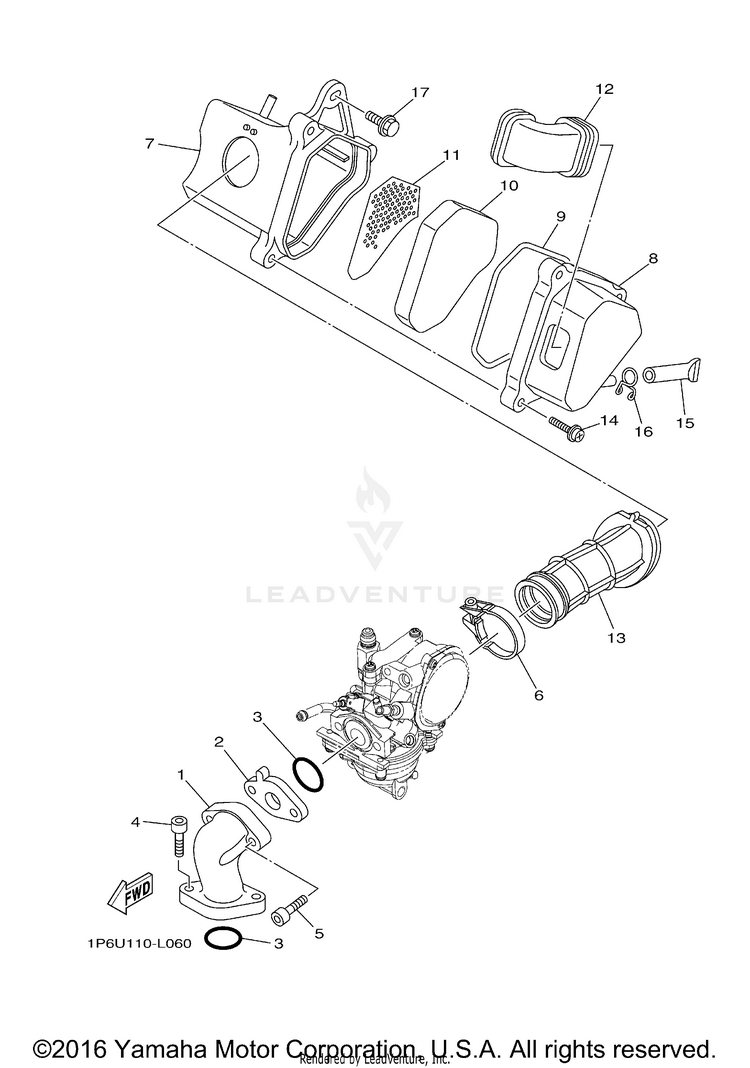

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11P6-E3586-20-00

(replaces part #
1P6-E3586-10-00)

JOINT, CARBURETOR$73.99$57.71Usually ships in 7-10 business days
21P6-E3595-00-00JOINT$8.49$6.625 In-Stock
393210-223A2-00

(replaces part #
93210-22803-00)

O-RING(MF1)$5.49$4.2810+ In-Stock
491317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
590110-06138-00

(replaces part #
91317-06030-00)

BOLT$6.49$5.0610+ In-Stock
61P6-E3575-01-00BAND$33.99$27.87Usually ships in 7-10 business days
71P6-E4411-01-00CASE, AIR CLEANER 1$47.99$39.35Usually ships in 7-10 business days
81P6-E4412-00-00CAP, CLEANER CASE 1$49.99$38.993 In-Stock
91P6-E4452-00-00SEAL$19.99$15.596 In-Stock
101P6-E4451-01-00

(replaces part #
1P6-E4451-00-00)

ELEMENT, AIR CLEANER-$7.396 In-Stock
111P6-E4472-00-00PLATE, ELEMENT$11.99$9.351 In-Stock
121P6-E4437-00-00DUCT$16.49$12.865 In-Stock
131P6-E4453-10-00JOINT, AIR CLEANER 1$19.99$16.39Usually ships in 7-10 business days
1497602-05225-00SCREW, PAN HEAD WITH WASHER$6.49$5.064 In-Stock
154FP-E443E-00-00PIPE, DRAIN$8.49$6.623 In-Stock
1690467-100A1-00

(replaces part #
90467-10008-00)

CLIP$8.49$6.6210+ In-Stock
1790119-06242-00

(replaces part #
90119-06044-00)

BOLT, WITH WASHER$8.49$6.6210+ In-Stock
