2017 Yamaha FJR1300A Headlight OEM Parts Diagram

Submodel FJR1300A - FJR13AHCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

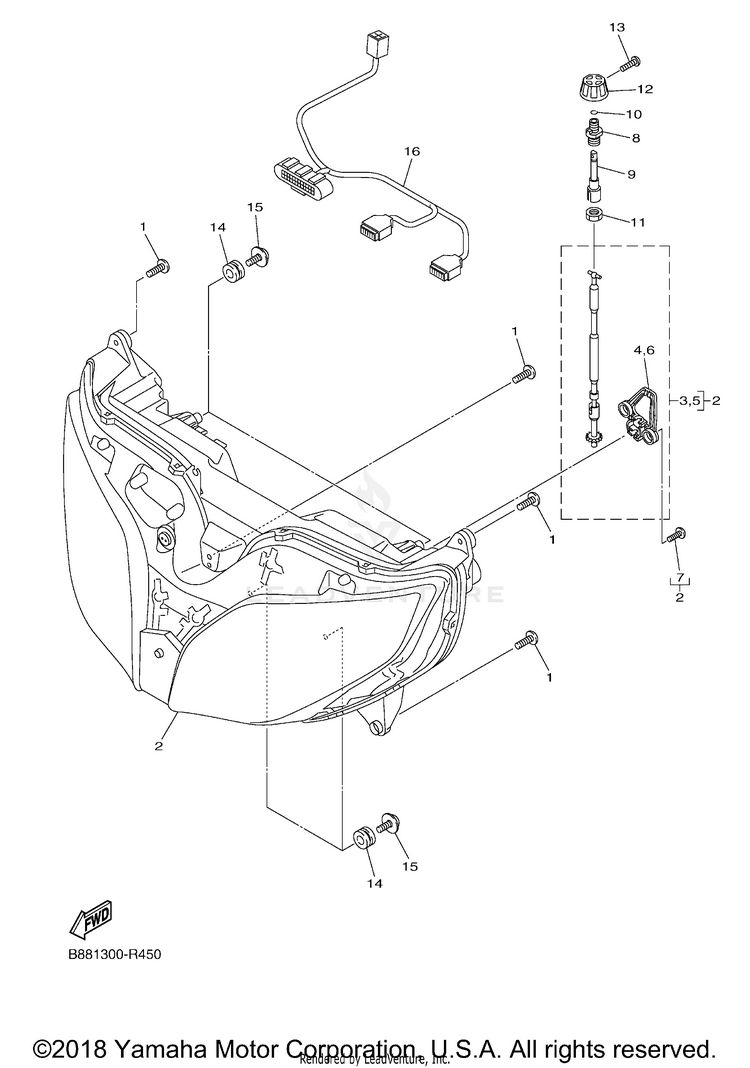

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
197702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
2B88-8430B-00-00HEADLIGHT ASSY$1,377.99$1,202.31Usually ships in 7-10 business days
3B88-8A3V1-00-00GEAR MODULE 1 | LH$115.99$90.47Usually ships in 7-10 business days
4B88-84544-00-00COVER | LH$8.49$7.64Usually ships in 7-10 business days
5B88-8A3V2-00-00GEAR MODULE 2 | RH$115.99$90.47Usually ships in 7-10 business days
6B88-84797-00-00COVER | RH$9.49$8.54Usually ships in 7-10 business days
797707-40614-00SCREW, TAPPING$4.50$4.05Usually ships in 7-10 business days
83P6-8431U-00-00HOLDER$11.99$9.83Usually ships in 7-10 business days
9B88-84387-00-00HOLDER$37.99$31.15Usually ships in 7-10 business days
1093440-06190-00CIRCLIP$9.49$8.54Usually ships in 7-10 business days
1190170-12407-00NUT$10.49$8.60Usually ships in 7-10 business days
123P6-8432N-00-00KNOB$10.99$8.574 In-Stock
1398507-03010-00SCREW, PAN HEAD$3.85$3.318 In-Stock
144XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
1590164-05001-00SCREW, TAPPING$9.49$7.407 In-Stock
16B88-84359-00-00CORD, HEADLIGHT$126.99$99.05Usually ships in 7-10 business days
