REAR SUSPENSION

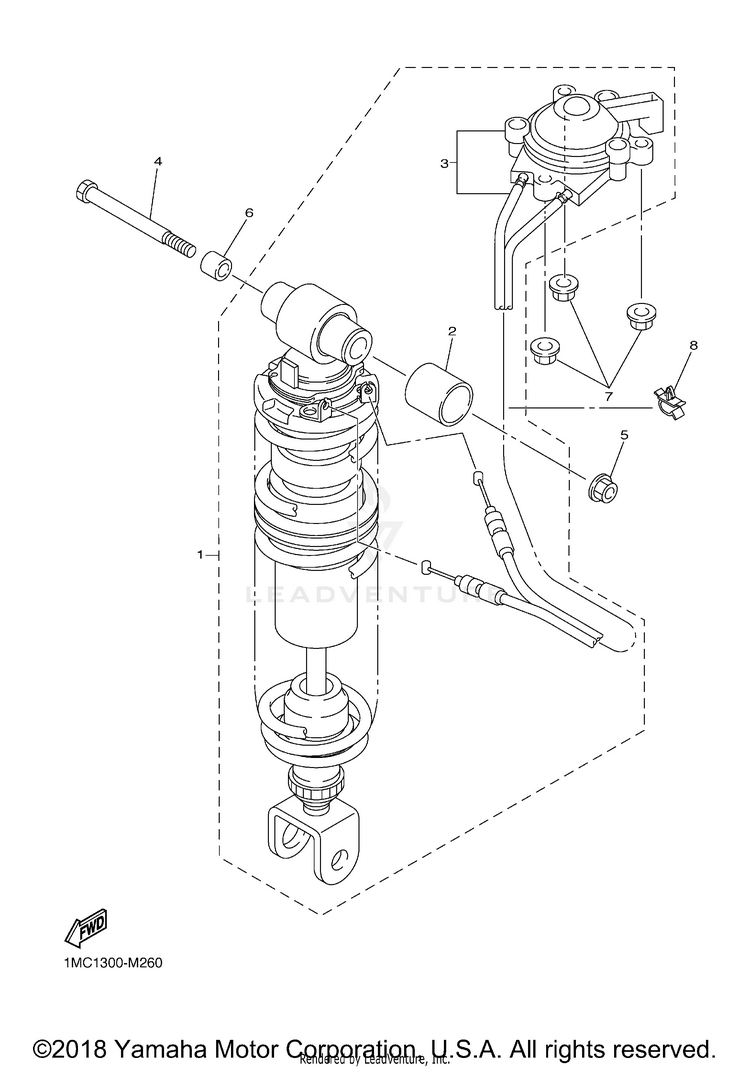

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11MC-22210-52-00

(replaces part #
1MC-22210-50-00)

SHOCK ABSORBER ASSY, REAR$839.99$684.84Usually ships in 7-10 business days
25JW-22216-00-00BUSH, REAR SHOCK ABSORBER$44.99$36.89Usually ships in 7-10 business days
31MC-22460-10-00CONTROL PANEL ASSY$61.99$48.35Usually ships in 7-10 business days
490101-12044-00BOLT$13.99$11.47Usually ships in 7-10 business days
595602-12200-00NUT, SELF-LOCKING$5.49$4.2810+ In-Stock
690387-12028-00COLLAR$8.49$6.624 In-Stock
795604-06200-00

(replaces part #
95602-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
890464-14001-00CLAMP$8.49$7.64Usually ships in 7-10 business days
