2017 Yamaha Wolverine 4x4 Camshaft Chain OEM Parts Diagram

Submodel WOLVERINE HUNTER - YXE70WDBHH - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

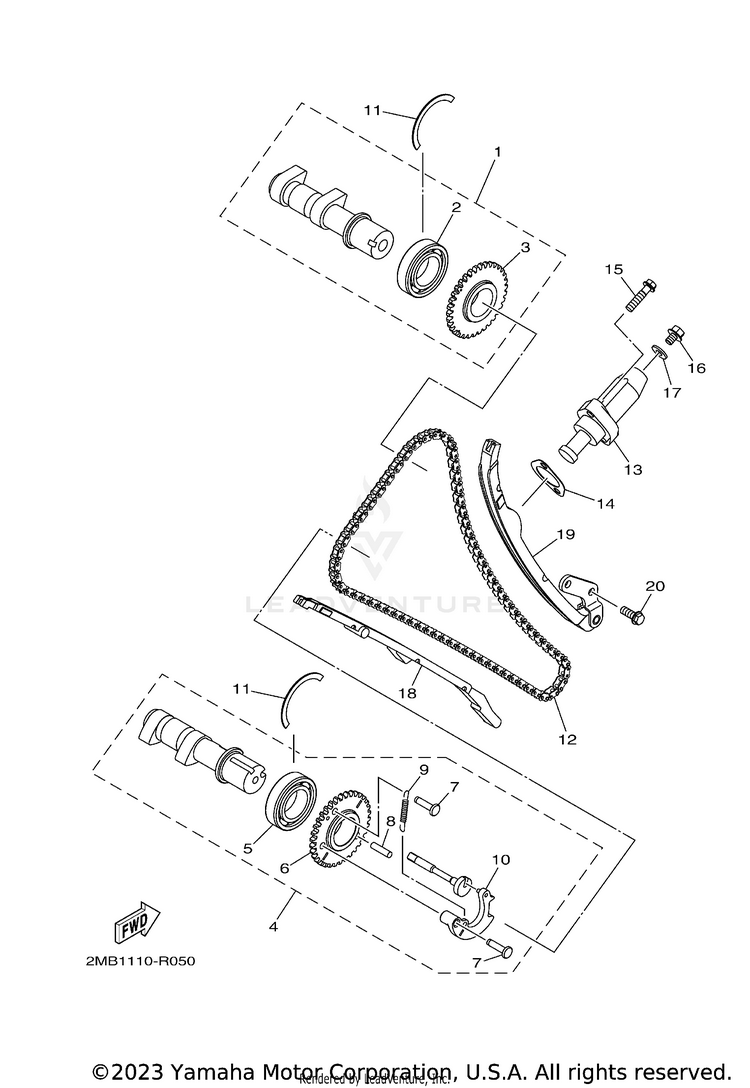

CAMSHAFT CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-E2170-00-00CAMSHAFT ASSY 1$491.99$383.75Usually ships in 7-10 business days
22MB-E2179-00-00BEARING, CAMSHAFT 1$34.99$28.69Usually ships in 7-10 business days
32MB-E2176-00-00SPROCKET, CAM CHAIN$88.99$69.41Usually ships in 7-10 business days
42MB-E2180-01-00CAMSHAFT ASSY 2$816.99$713.74Usually ships in 7-10 business days
52MB-E2179-00-00BEARING, CAMSHAFT 1$34.99$28.69Usually ships in 7-10 business days
62MB-E2177-00-00SPROCKET, CAM CHAIN$90.99$70.97Usually ships in 7-10 business days
72MB-H431W-00-00PIVOT$15.49$12.70Usually ships in 7-10 business days
82MB-E2284-00-00PIN, DECOMPRESSION LEVER$5.49$4.94Usually ships in 7-10 business days
92MB-E2287-01-00SPRING, DECOMPRESSION$5.49$4.283 In-Stock
102MB-E217A-00-00WEIGHT$71.99$56.15Usually ships in 7-10 business days
112MB-E2842-00-00CIRCLIP$4.40$3.784 In-Stock
122MB-E2190-00-00CHAIN ASSY$215.99$168.471 In-Stock
132MB-E2210-00-00TENSIONER ASSY, CAM CHAIN$455.99$360.60Usually ships in 7-10 business days
142MB-E2213-00-00GASKET, TENSIONER CASE$1.70$1.463 In-Stock
152MB-E5481-20-00BOLT 1$1.20$1.038 In-Stock
162MB-E5481-00-00BOLT 1$1.20$1.08Usually ships in 7-10 business days
172MB-E21E2-00-00GASKET$2.05$1.84Usually ships in 7-10 business days
182MB-E2251-00-00DAMPER, CHAIN 1$75.99$59.27Usually ships in 7-10 business days
192MB-E2252-00-00DAMPER, CHAIN 2$192.99$150.53Usually ships in 7-10 business days
202MB-E5482-00-00BOLT 2$1.80$1.62Usually ships in 7-10 business days
