2017 Yamaha Wolverine 4x4 Rear Arm OEM Parts Diagram

Submodel WOLVERINE HUNTER - YXE70WDBHH - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR ARM

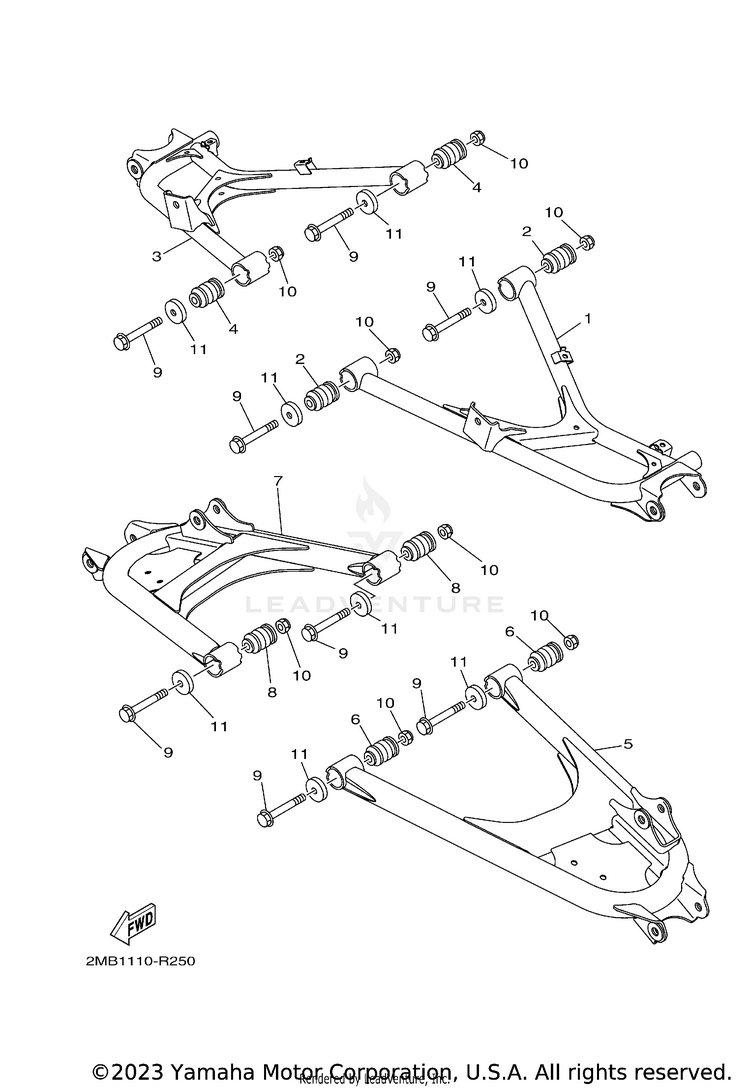

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-F2171-00-00ARM, REAR 1$60.99$47.57Usually ships in 7-10 business days
21HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
32MB-F2172-00-00ARM, REAR 2$70.99$55.37Usually ships in 7-10 business days
41HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
52MB-F217M-01-00

(replaces part #
2MB-F217M-00-00)

ARM 1$57.99$45.23Usually ships in 7-10 business days
61HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
72MB-F217N-01-00

(replaces part #
2MB-F217N-00-00)

ARM 2$85.99$67.07Usually ships in 7-10 business days
81HP-F3526-00-00BUSH$24.99$19.4910+ In-Stock
990105-10267-00BOLT, FLANGE$10.49$8.188 In-Stock
1090185-10012-00NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
115KM-22149-10-00WASHER$8.49$6.6210+ In-Stock
